3000w CS Cutting parameters Fast Guide - Fiber Laser / Engineer David

This is a fast guide with some parameters for thicker stuff of carbon steel. Test it and make the changes if it´s necessary.

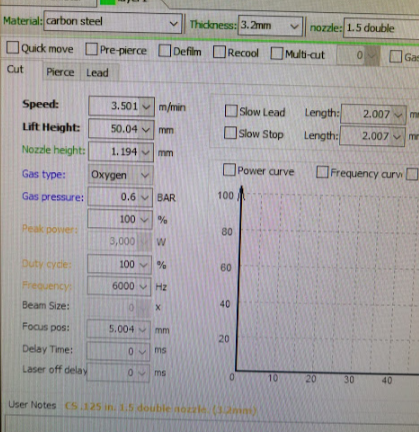

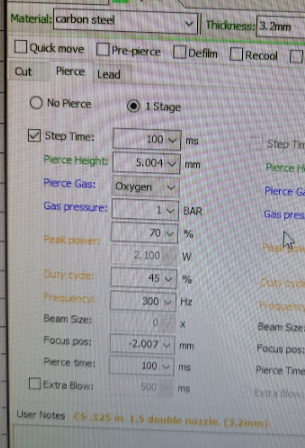

3.2mm CS

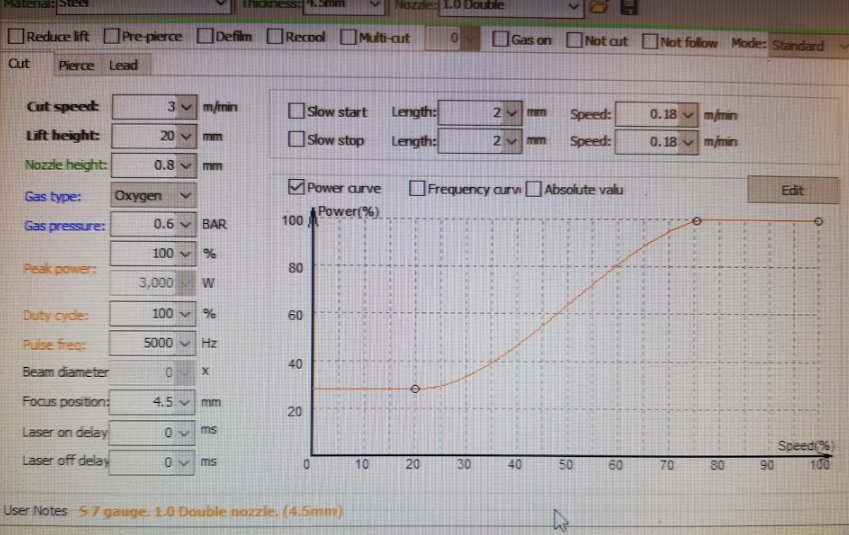

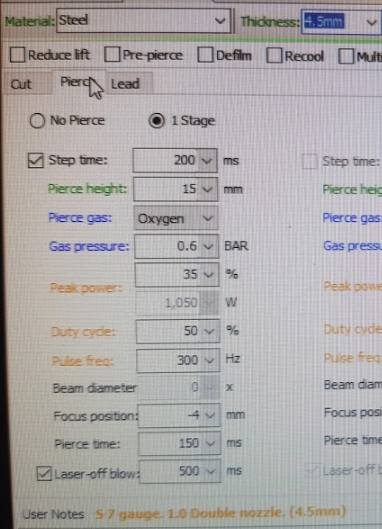

4.5mm CS

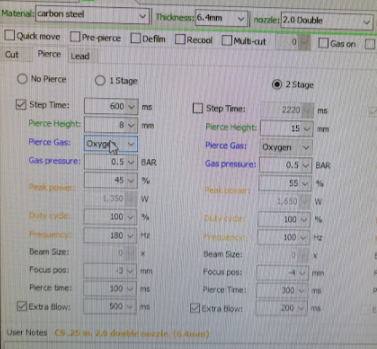

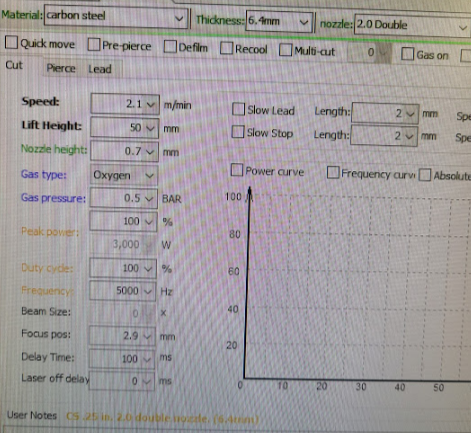

6mm CS

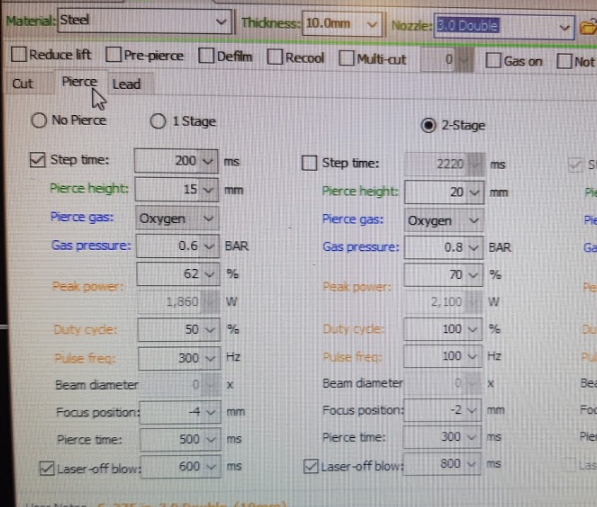

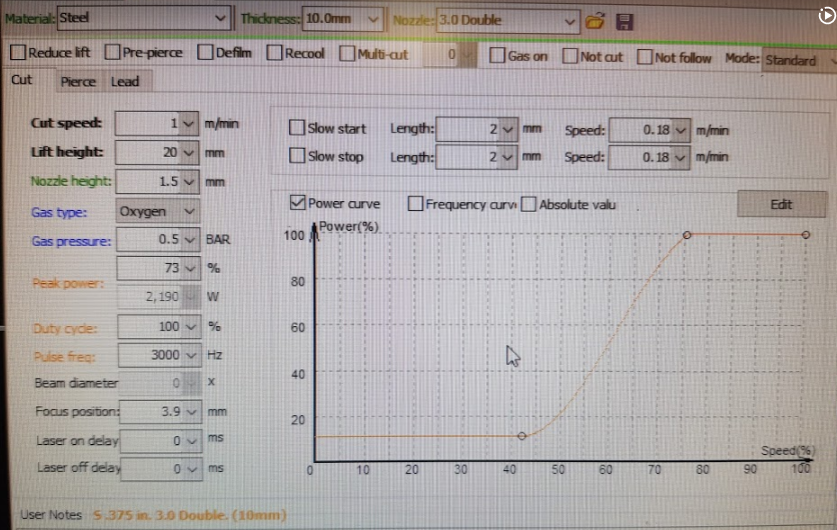

10mm CS

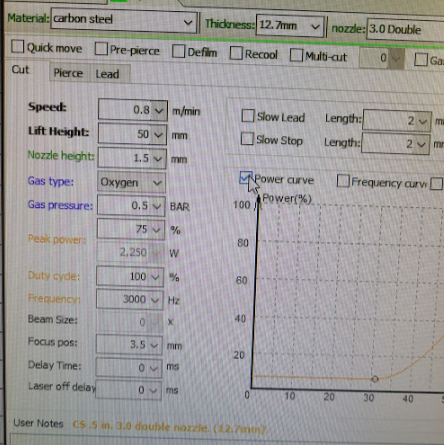

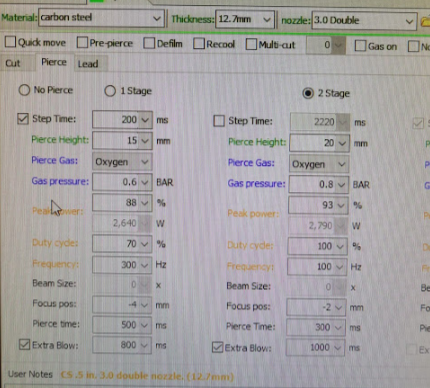

12mm CS

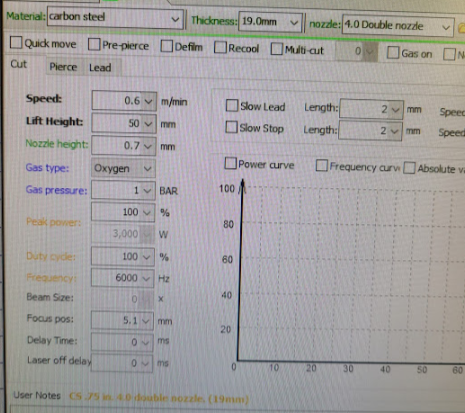

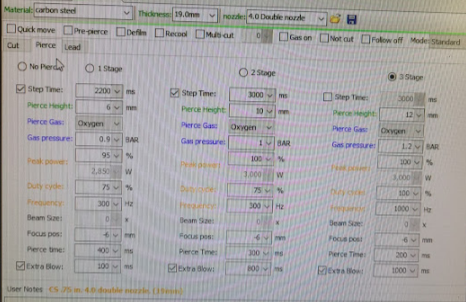

18mm CS

Fiber Laser Department
