Laser beam Alignment in Dual Max Machine / Daniel
Laser beam Alignment in Versa Dual Max Machine
First of all, you need to level the machine and both the glass and RF laser tube, next step is to calibrate the mirrors, So in the next videos, we show you how to do it.
Check the alignment in the CO2 glass tube
Step 1
Set the max power in the Laser1 (RF tube) at 0% and the Laser 2 (Glass Tube) at 20% to check the alignment of the Glass tube.
Pulse in the first mirror With laser 2
Step 2. Check overlap in the A-B position, from the first mirror to the second mirror
Mirror 1 to mirror 2 Alignment with laser 2
Step 3. Check overlap in the B-C position from the second mirror to the third mirror
Try to get the two pulses overlapping and reach the center of the mirror in the 2 positions (near and far from the previous mirror) Make these adjustments until both marks are
located one above the other
Step 4. Check overlap in the C-D position from the third mirror to the nozzle
Make the laser beam exit through the center of the nozzle
Mirror 3 to nozzle Alignment with laser 2
Check the alignment in the RF tube
Step 1
Set the Laser1 (RF tube) at 20% and the Laser 2 (Glass Tube) at 0% to check the alignment of the RF tube.
Pulse in the first mirror
Hitting mirror 1 in laser 1
Step 2. Check overlap in the A-B position, from the first mirror to the second mirror
Mirror 1 to mirror 2 Alignment with laser 1
Step 3. Check overlap in the B-C position from the second mirror to the third mirror
Mirror 2 to mirror 3 Alignment with laser 1
Step 4. Check overlap in the C-D position from the third mirror to the nozzle
Mirror 3 to nozzle Alignment with laser 1
Try to get the two pulses overlapping and reaching the center of the mirror in the 2 positions (near and far from the previous mirror) and make the laser beam exit through the center of the nozzle
Note.
if you need to know how to move the mirror's screw and put the laser beam in the center of the mirror, this video will help you.

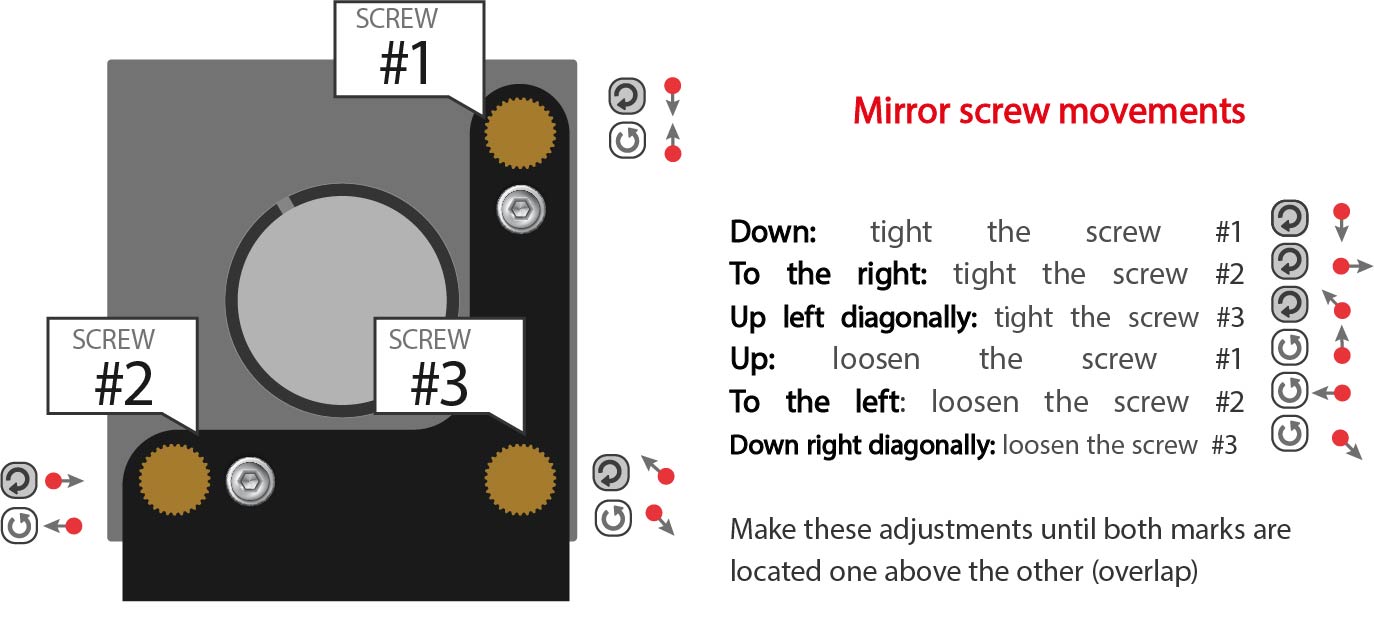

Mirror screw movements
To adjust the beam in the First and Second mirrors, the following image guide you
Notes:
if you need to adjust the laser beam from the first mirror to the second mirror, move the screws in the first mirror
if you need to adjust the laser beam from the second mirror to the third mirror, move the screws in the second mirror

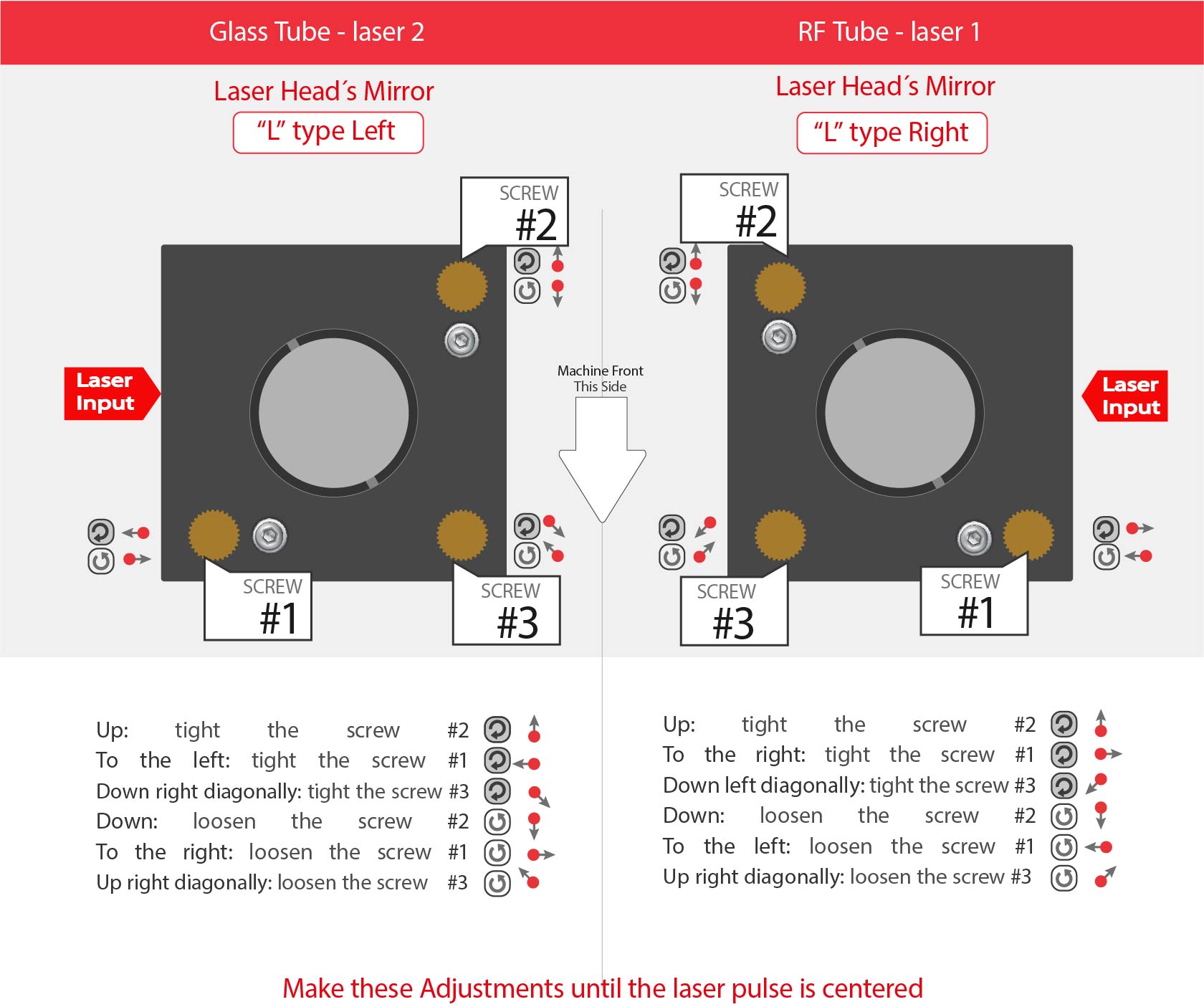

Laser Head Mirror screw movements
To adjust the beam from the Third mirror to the nozzle the following image guide you
Note:
If you need to adjust the laser beam from the third mirror to the nozzle, move the screws in the third mirror
Related Articles
0 - The laser beam mark should be in the center of the hole in the laser head / Daniel

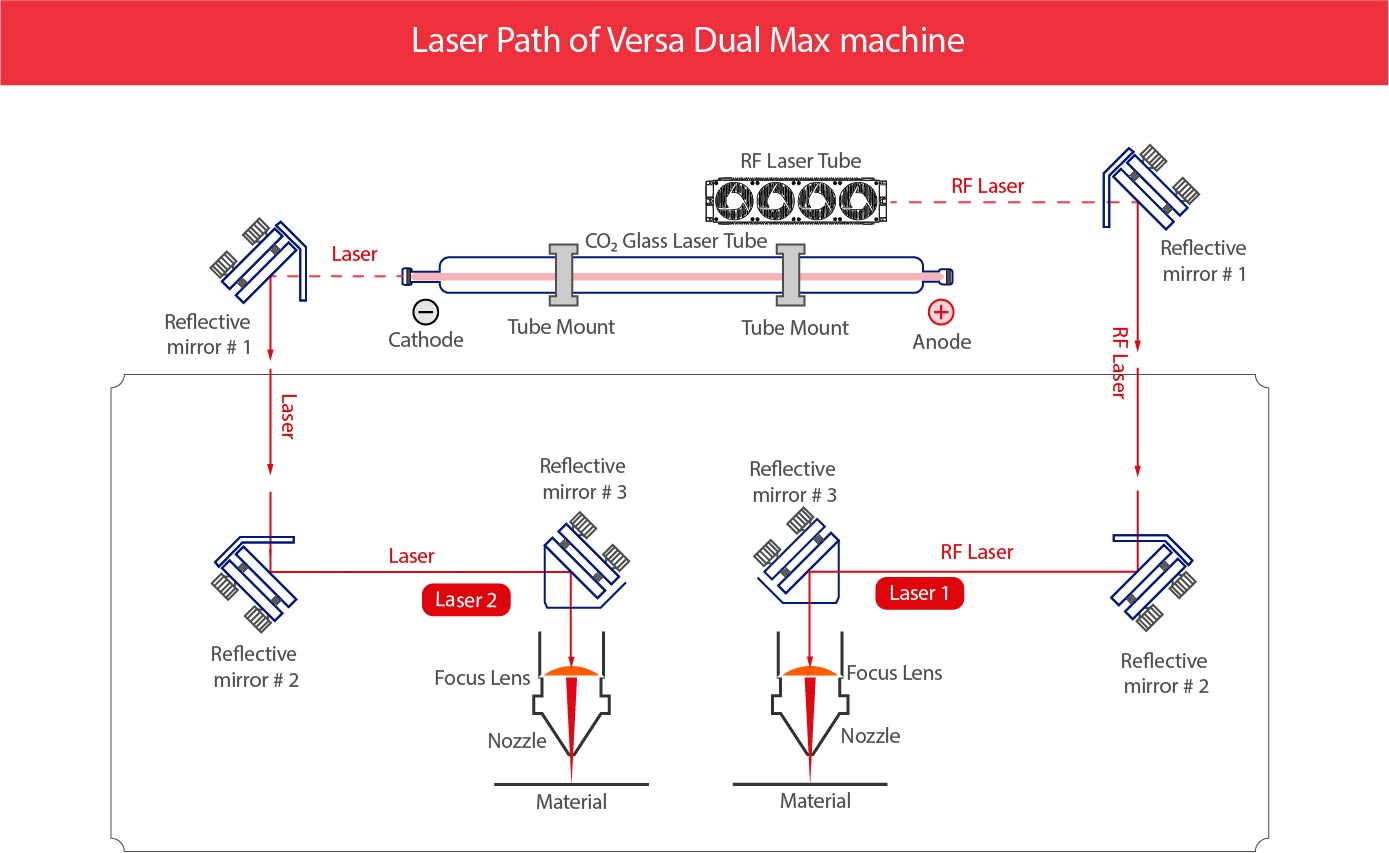

To see how the calibration is, we must observe that the mark of the laser beam is in the center of the hole in the laser head, if the two marks overlap but are above the center, it means that the height of the tube is above of the height of the laser ...Laser path of Versa Dual Max Machine / Daniel
