4 pin aviation plug size GX20 to connect the rotary in the star machine / Daniel

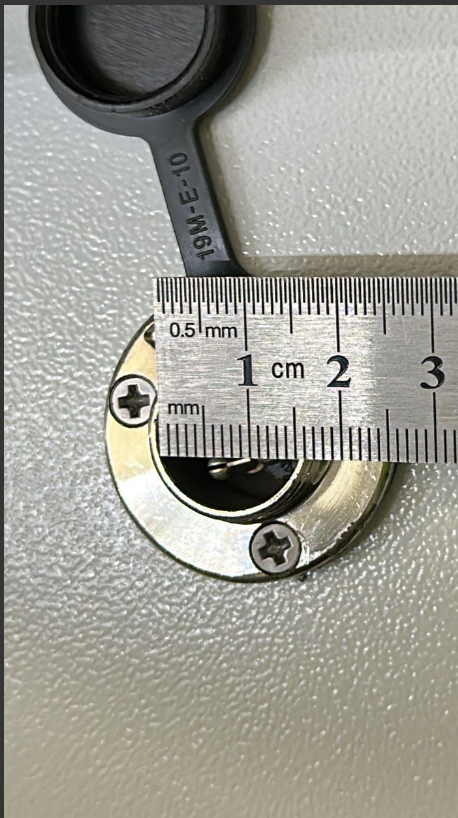

GX20 5/8" or 16mm is the size for the 4 pin aviation plug
