The software reports "Not find target" for the following reasons:

• The dimensions of the patterns are not according to the dimensions configured in the software.

• The dimension of the cutting area is not according to the dimension configured in the software.

• The camera is located in the wrong pattern and is pointed away from the work area.

Solutions:

Measure with a ruler the exact dimension of the patterns and the total cut area in the printed file, set these dimensions in the software.

Position the camera on the initial cutting pattern.



The software reports "The mark point too little" for the following reason:

- The initial pattern and secondary patterns have not been identified, to do so, select the pattern and click on the S box, then press A.





The software reports "No layer to be output" for the following reason:

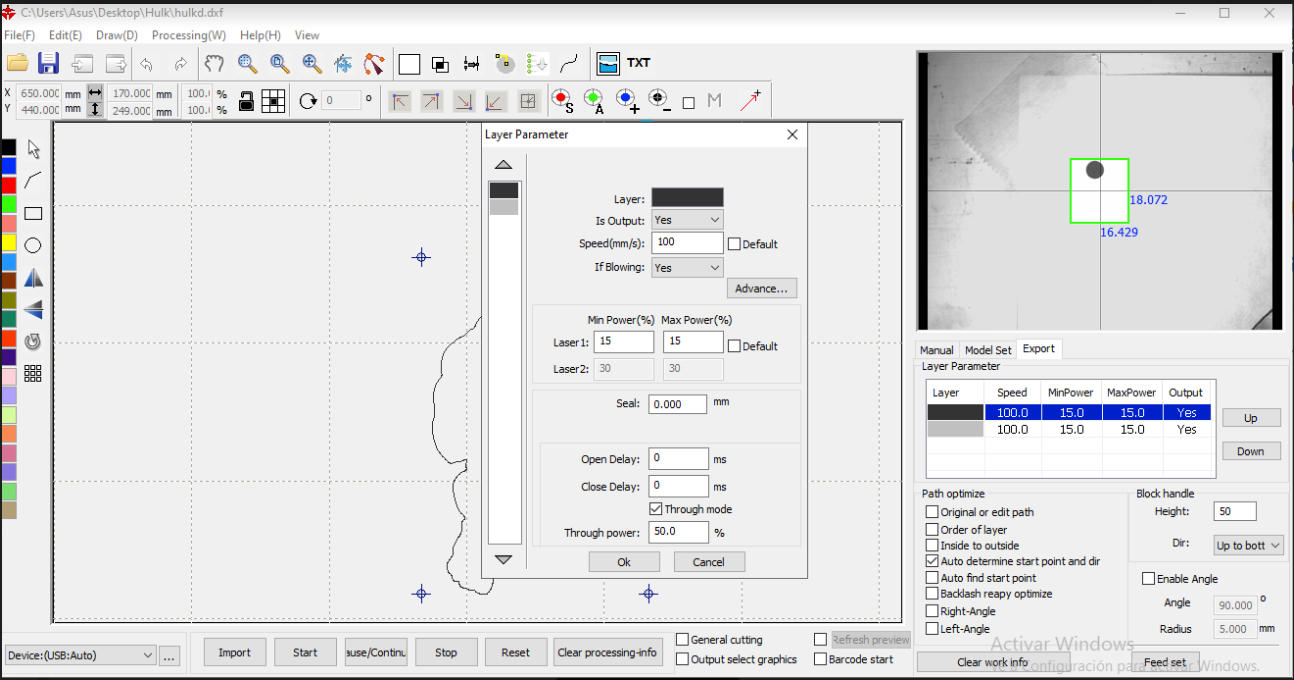

- Output on the cut layer is set to No, click on the layer you want to cut and set Output to Yes.
