How to change the limit distance in the z axis of the Worktable? / Daniel

How to change the limit distance in the z axis of the Worktable? / Daniel

To change the maximum travel of the worktable



From RDWorks software:

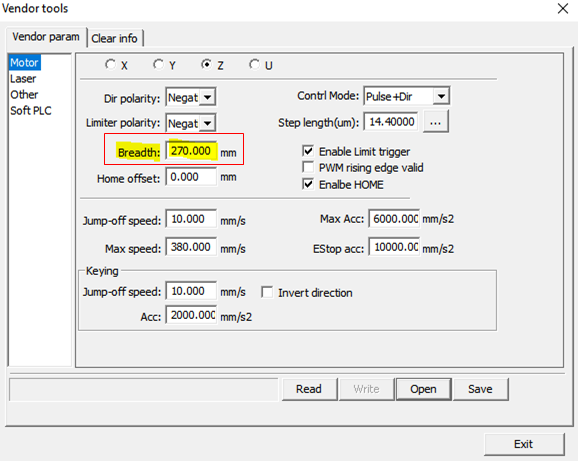

Open the program and enter the File menu after clicking on Vendor Settings, enter the password RD8888, click on the “Read” button, then click on motor, then click on the z axis and in Breadth change the maximum value of the travel, finish writing the value by pressing the "Write" button





From the Lightburn software:

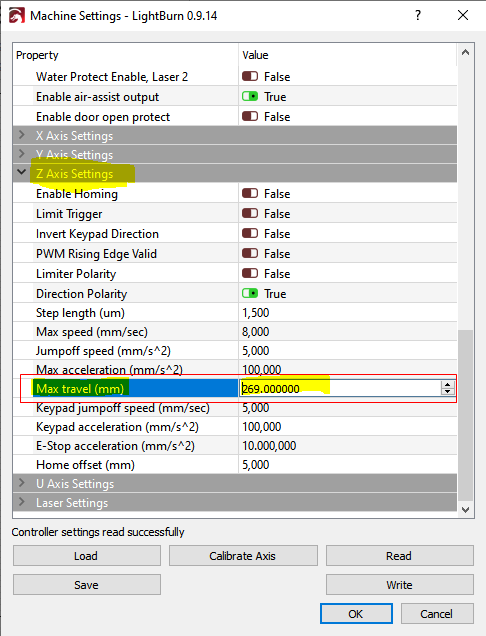

Open the Lightburn program and click on the File menu then click on Machine settings, click on the “Read” button, scroll down looking for Z Axis Settings, and change the maximum travel value in “Max travel (mm)” finish pressing the "Write" button
