Procedure to avoid a current jump in the CO2 Laser Machine

Procedure to avoid a current jump in the CO2 Laser Machine

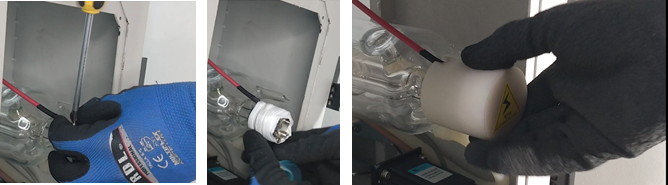

Locate the anode of the laser tube and the red wire, and the High-tension nut and loosen the screw, apply with a cotton swab WD-40 lubricant to the screw and ring terminal of the red wire, not directly to the screw





Tighten the screw, then place thread seal tape on the screw, red wire and anode of the laser tube, and put on the cap cover

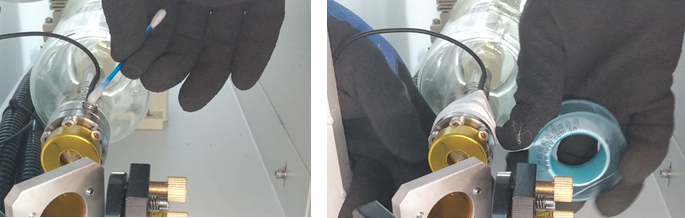

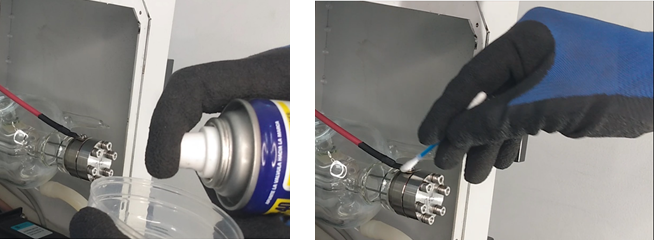

Repeat the procedure with the other side of the laser tube, with a cotton swab apply WD-40 lubricant to the screw and ring terminal of the black wire, tighten the screw, then place thread seal tape on the screw, black cable and cathode of the laser tube

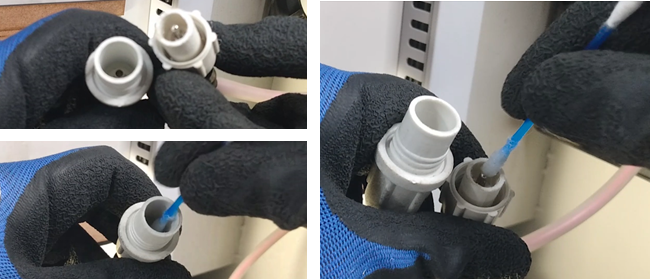

Locate the connector adapter high voltage plug socket, apply WD-40 lubricant with the cotton swab inside the connectors

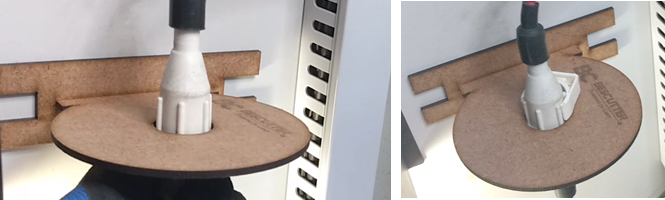

Reassemble the Laser Power Supply Connector Adapter, and separate Laser Power Supply Connector Adapter from the machine’s wall about 2 inchs



Look the video
