Belt's installation on Space Saver / Engineer David

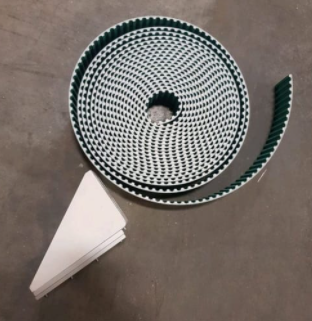

1. Take off the following pieces of the box:

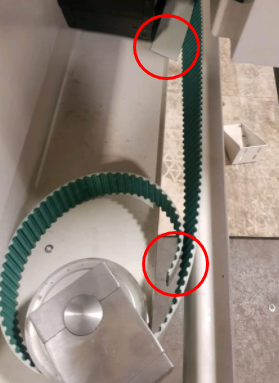

2. Put the belt inside the machine according to the gears.

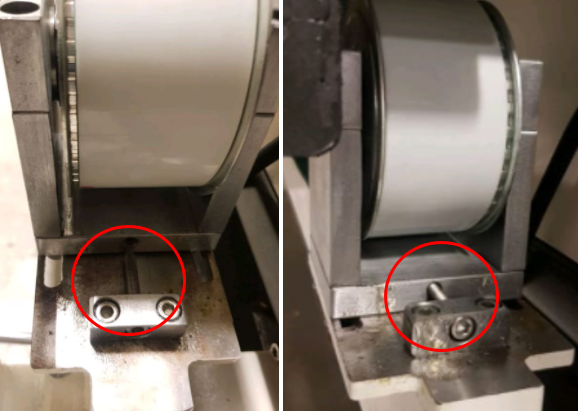

3. Take off these two pieces and put both ends of the belts on it:



4. Tight the tensor screw:

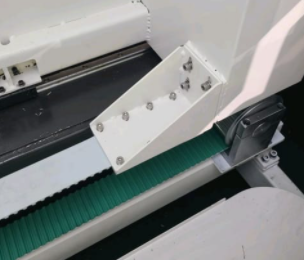

5. Connect the belt to the front door.
