Changing the pins of the Plug Europe / Chinese and American models / Daniel - Diego

How to change the pins of the plug to make the electrical connection

Europe / Chinese and American models

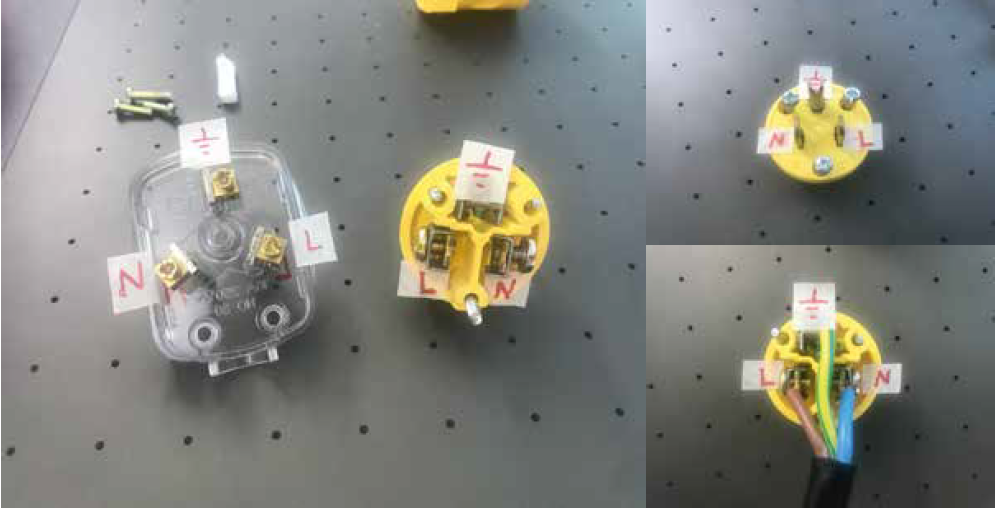

Splicing cables on the pins

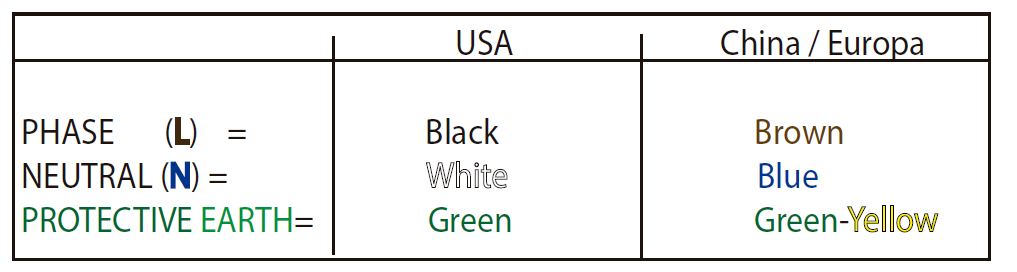

New cable color code AC 120/208/240v
