Communication problem between the PC and the CO2 laser machine. /Diego
Communication problem between the PC and the CO2 laser
machine.

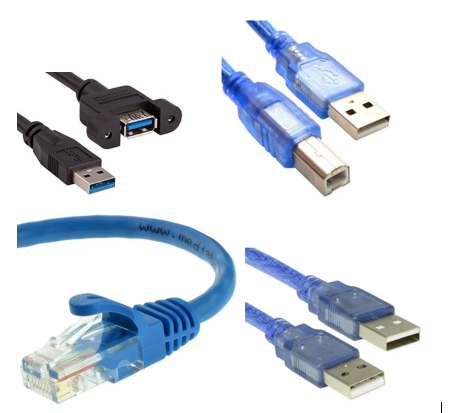

USB port for computer and USB memory connection USB type computer port
PC connection directly to the CO2 laser engraver and cutter controller
board By means of a USB type A-type A male connector cable.
When there is no communication between the
computer and the controller card of the CO2 machine,
one of the factors is due
to the USB connection. When one of the USB ports of the machine does not work
properly
and creates a "communication error", one solution is to
connect the computer directly to the Ruida controller board using
a USB type A
to type B cable (USB printer cable)

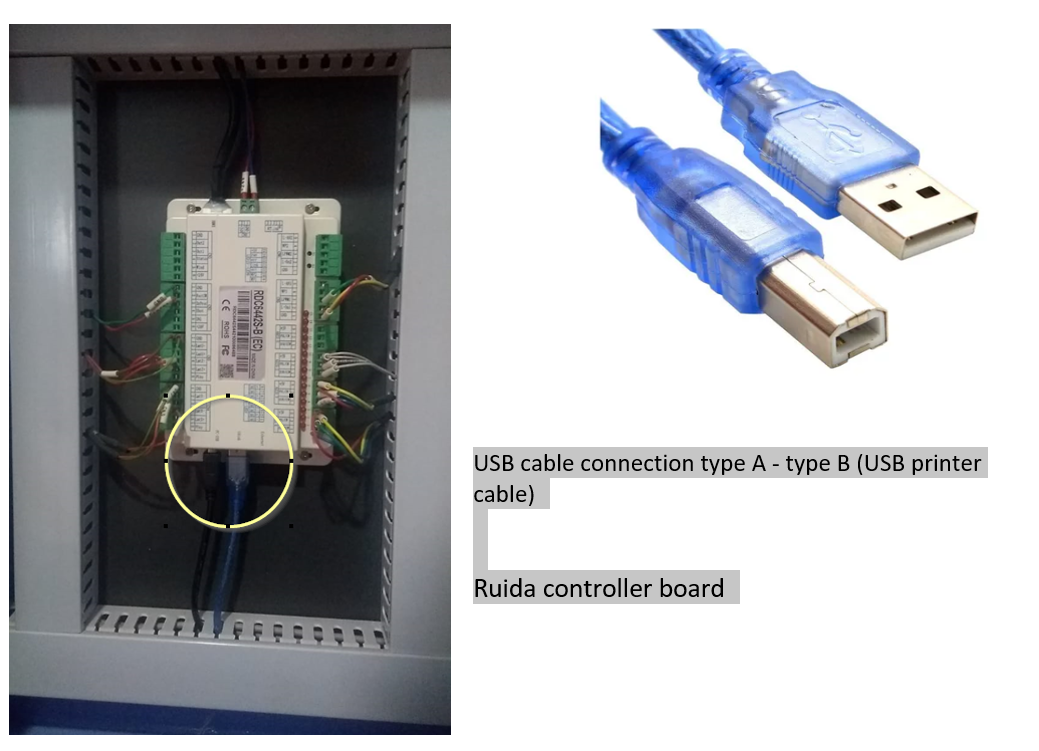

In the electronic part of the machine is the Ruida controller board, with its
respective connection outputs: PC-USB, Udisk and Ethernet.
With the USB Type A - Type B cable ( USB printer cable), replace it in
the PC-USB connector and connect it directly to the computer.
