To connect the kit sent by the factory for the machines and to be able to adapt a rotating accessory

the following steps must be followed



Step 1

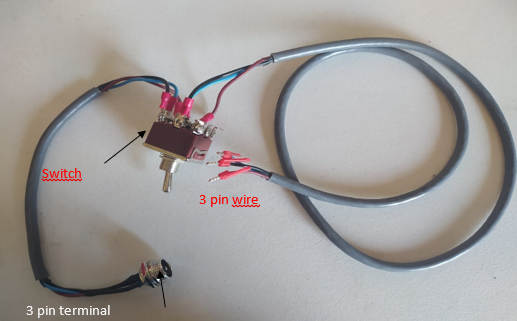

Identify the 3-pin male terminal, the two-position switch, and the wire with 3 black, brown, and blue terminals.




Step 2

Identify the Y-axis driver: check on the right side of the drivers that it has the letter Y to identify the Y-axis driver




Step 3

Disconnect the connector from the UVW connections and remove the yellow, green and red wires on the W, V and U connection on the Y-axis driver on the left side


Step 4

Connect to the green connector the black, blue, and brown wires of the connection kit cable for the W V and U connections respectively,

and reconnect the green connector to the driver as shown in the image below





Step 5

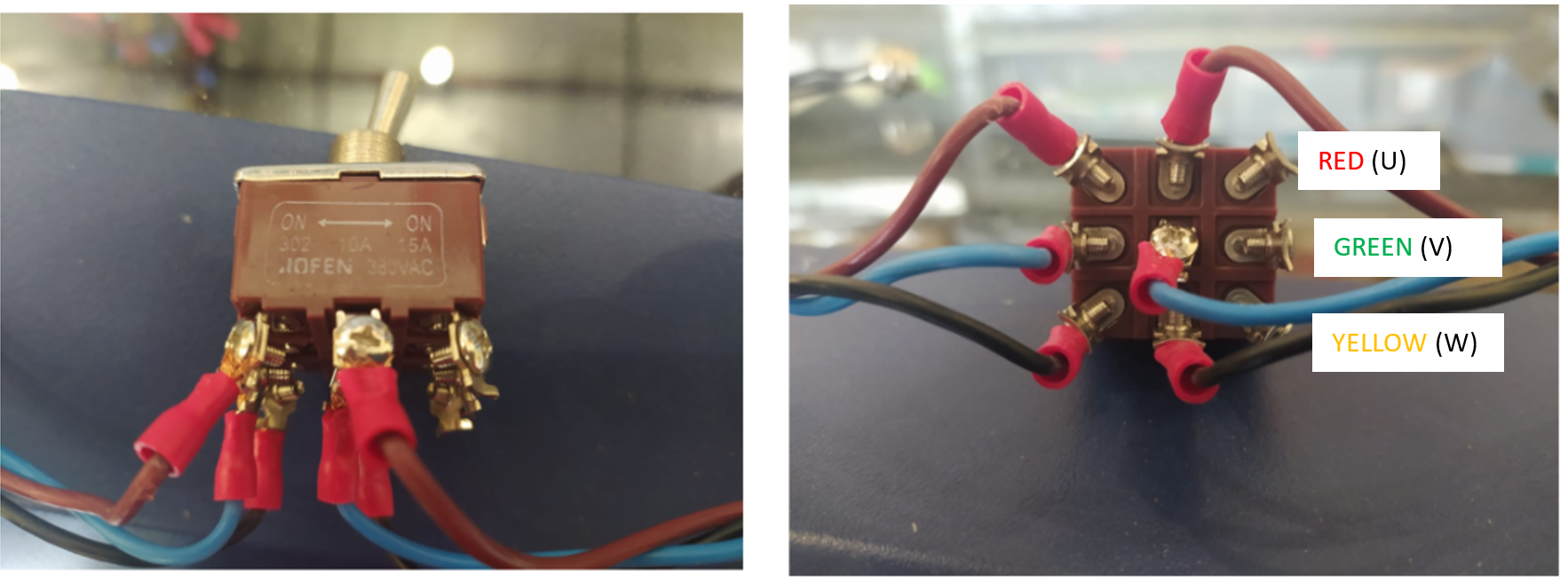

Connect the yellow, green, and red wires you disconnected from the driver to the switch so that they are:

U wire (Red) to the terminal where the COFFEE wire is connected

V wire (Green) to the terminal with BLUE wire connected

W (Yellow) wire to the terminal with the BLACK wire connected





Step 6

Install the male three-pin connector to the hole on the machine





Step 7

Be sure to change the switch position when using the rotator, and connect the rotator three-pin cable. Once you finish using it,

return it to its initial position and disconnect the rotary attachment  cable
