Cut optimization on CypCut (Lead) / Engineer David

Cut optimization on CypCut (Lead) / Engineer David

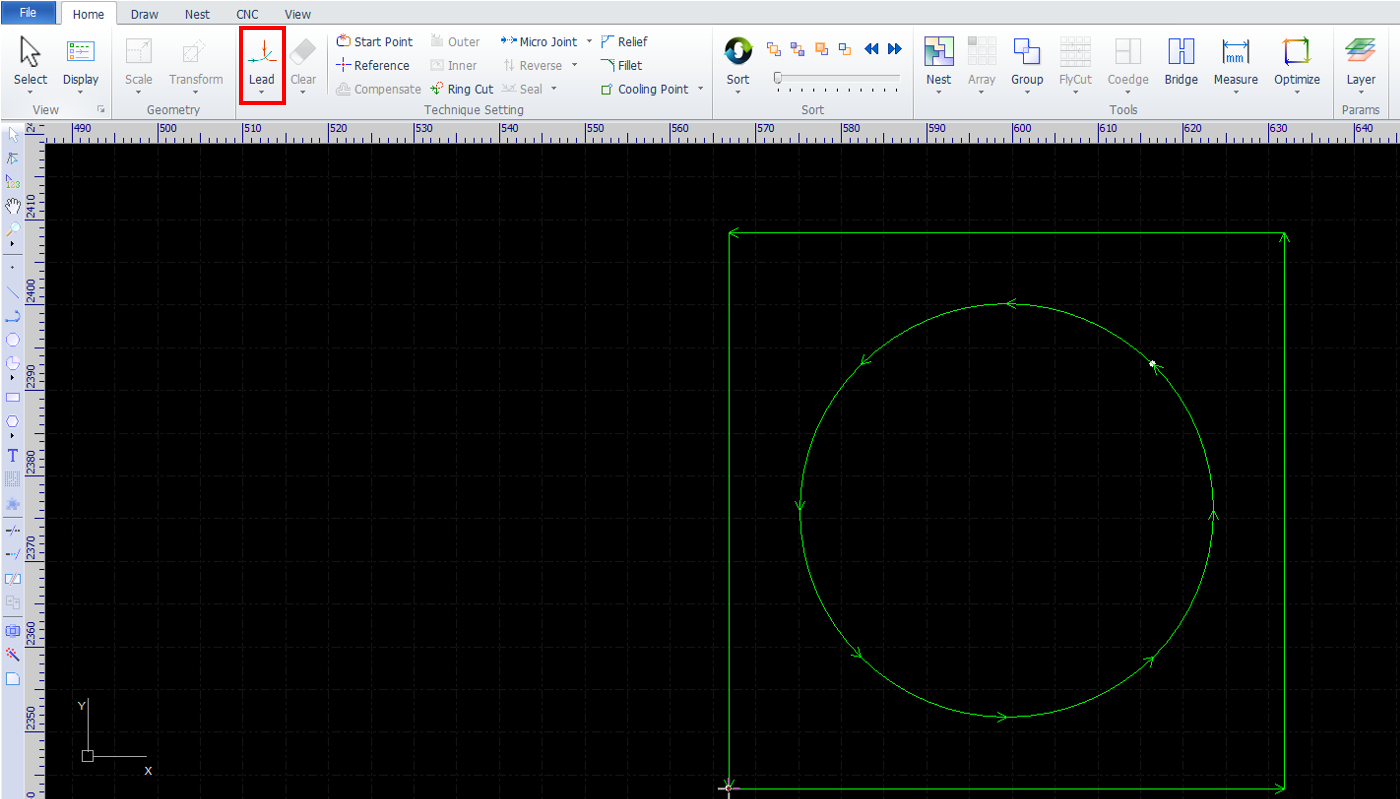

1.  Click on "Lead"

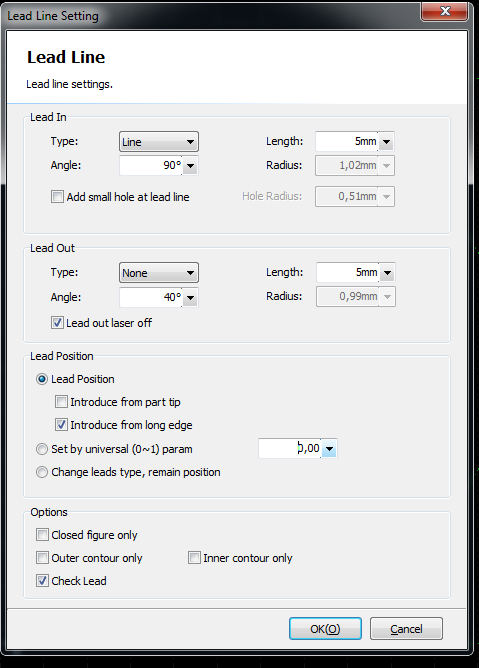

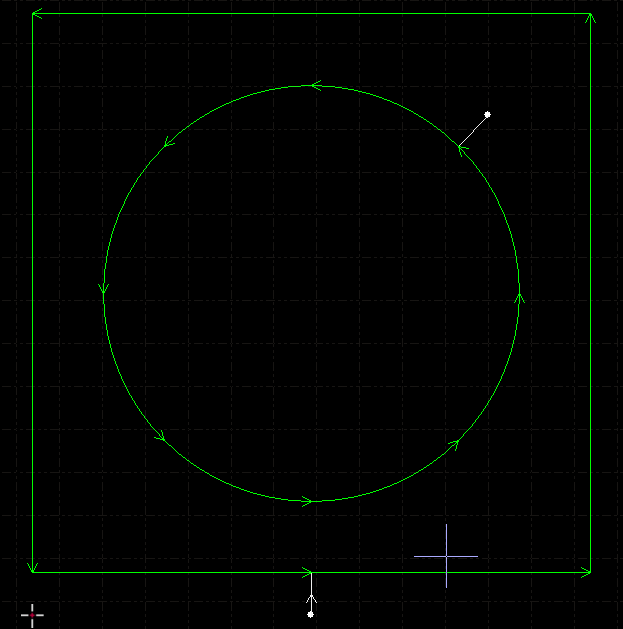

3. To create the entrance directly to the cut you have to use the next settings:
The length depends of your design and your material, we recommend to use a length with at least the thickness of the material.

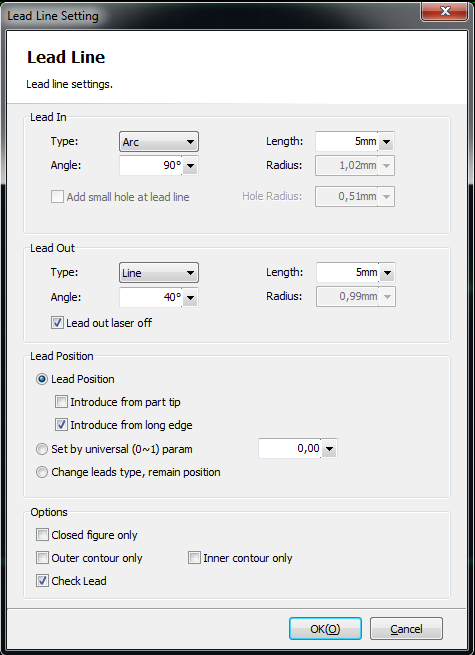

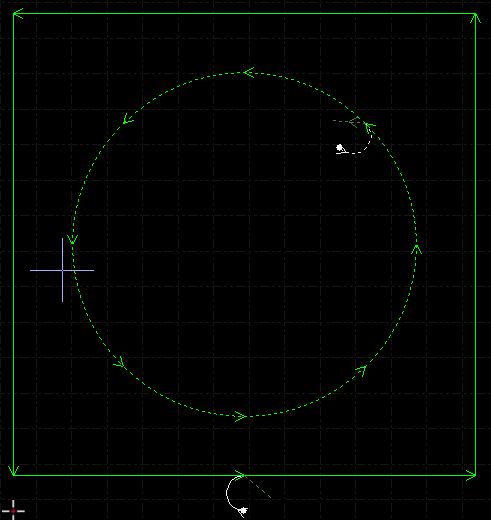

To create an entrance with a lead out use the next settings:
You can choose arc, line, line+arc depending of your requirements.

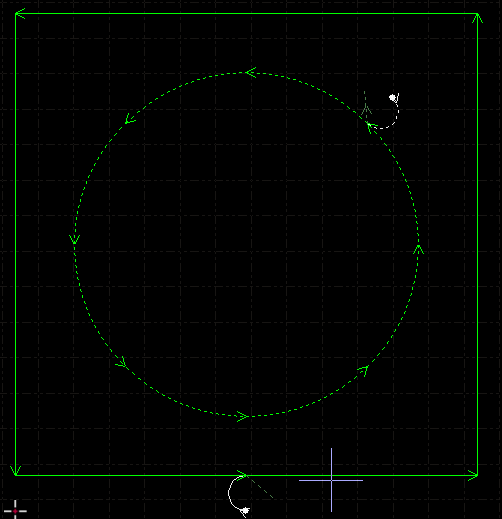

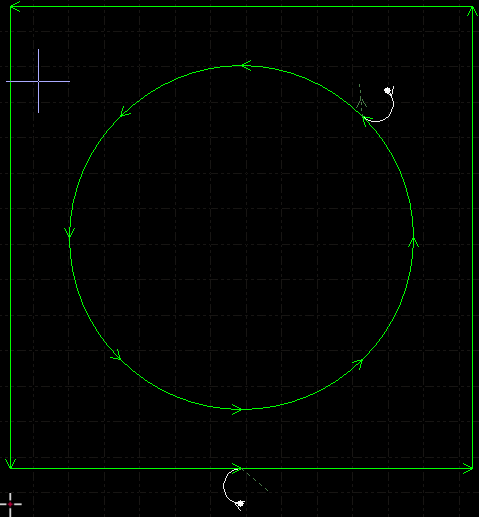

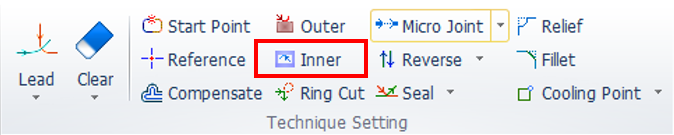

4. To change the Lead from outside to inside, select the design and click "Inner":

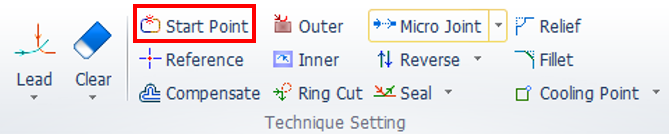

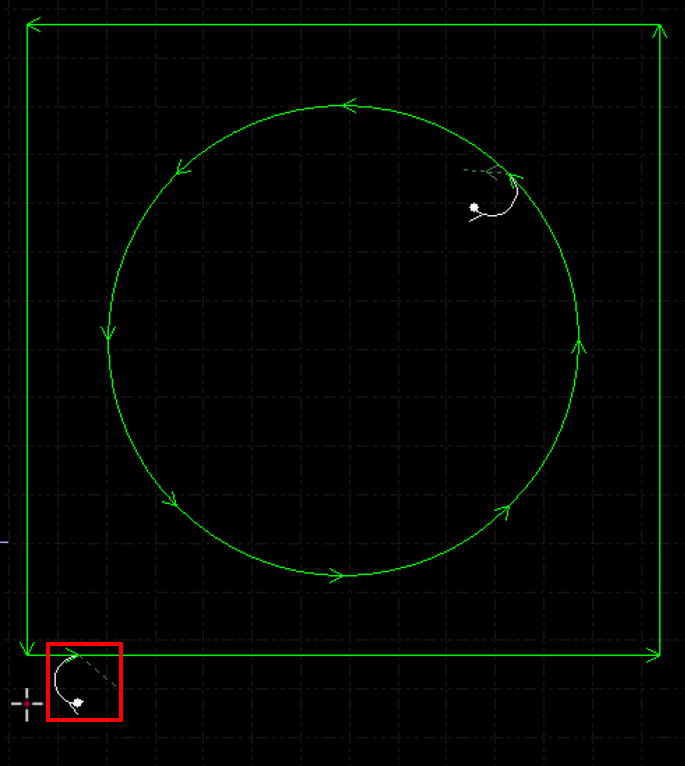

5. To create or change the Lead manually you have to click on "Start point" and click again where you want to create it on the design:





Fiber Laser Department
