Driver boards installation instruction

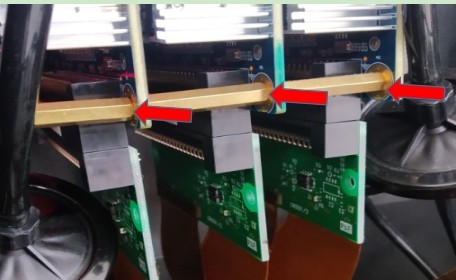

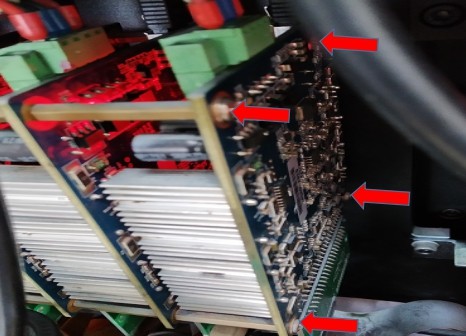

1 lock tight golden color cylinder marked as red below.

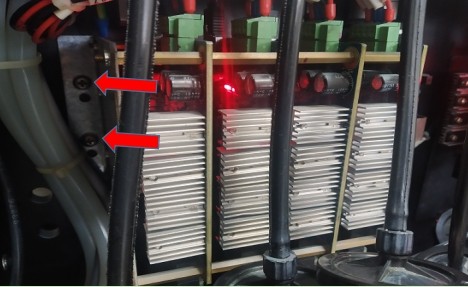

2 lock tight screws as below.

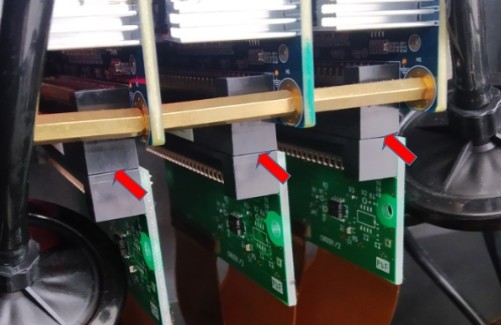

4 Keep the slot clean without anything in it, and board without sign of damage.

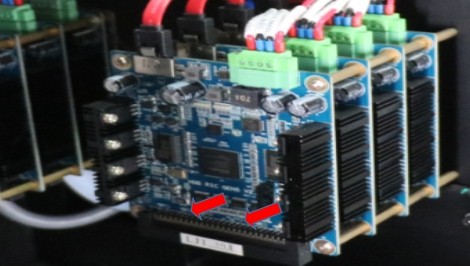

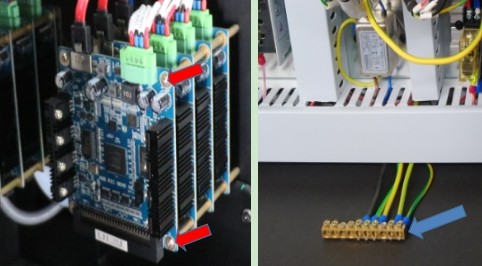

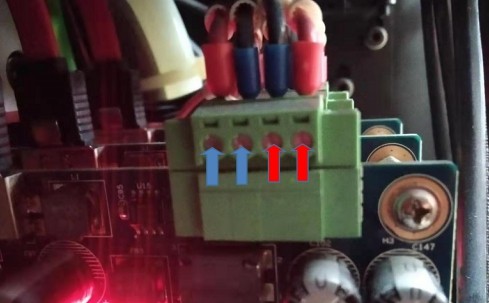

5 screws in red and ground end in blue are well connected.

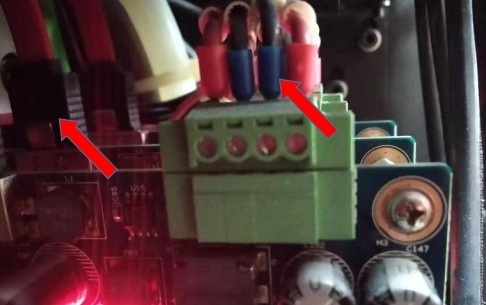

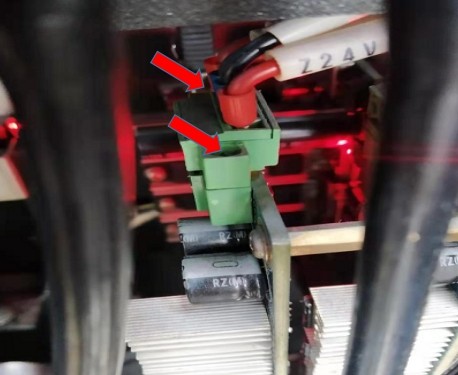

6 Direct current 24V and 37V’s voltage are normal. 24V in red, 37V in blue.

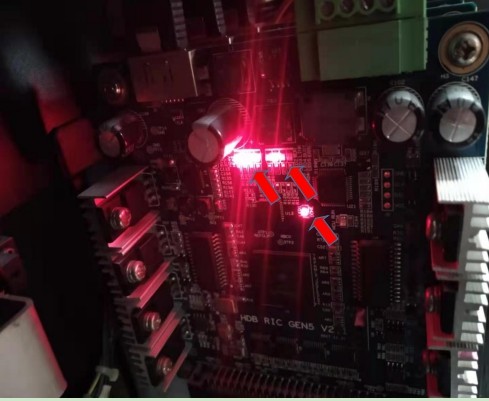

7 Indicator work normal.

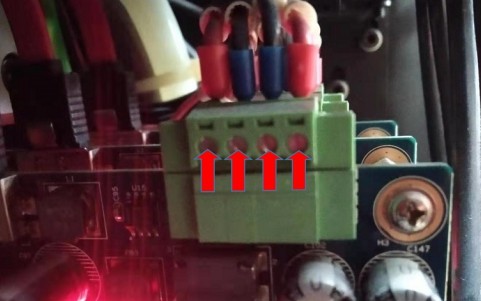

8 Printhead and boards are well connected, fully touched.
