How to adjust the voltage of the 46v outputs on a GY600W switching power supply? /Diego
How to adjust the voltage of the 46v outputs on a GY600W switching power supply? /Diego

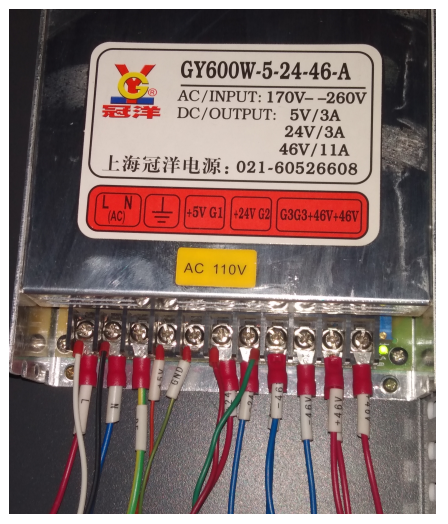

Fuente Conmutada GY600W.
To adjust the voltage output follow these steps:
Step 1

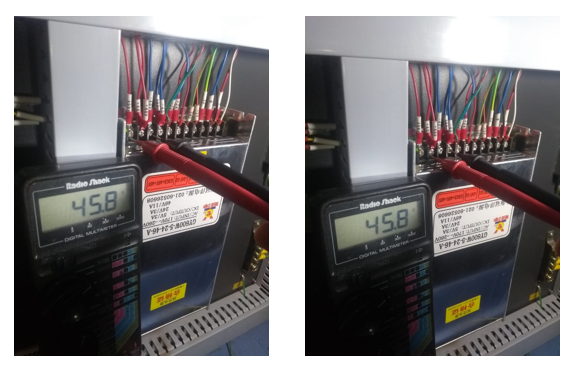

Find the 46V DC output connection, With a multimeter take the voltage measurements on the 46V connectors, if the voltage is different, it must be adjusted
Step 2

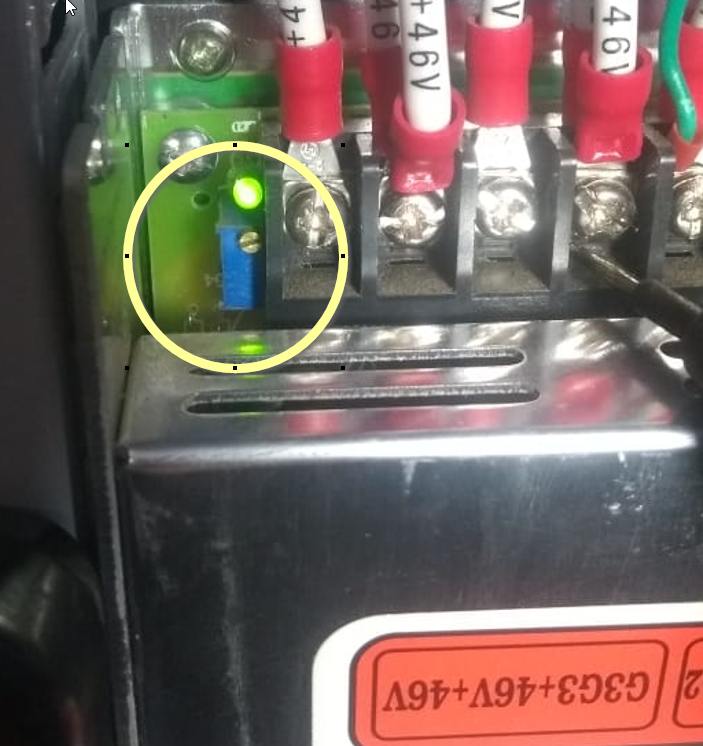

To adjust the voltage, look for the potentiometer on the switched source found on the Board.
Step 3

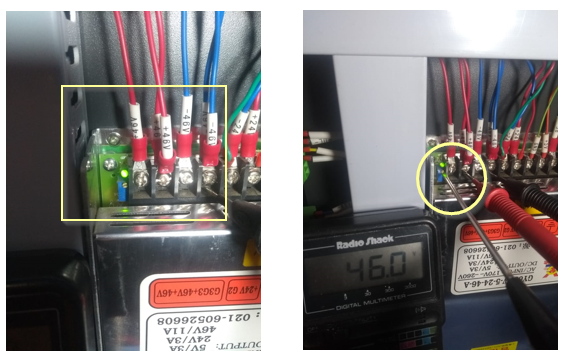

With a screwdriver turn and adjust the required output voltage of 46V DC.
