How to change the movement speed on fiber laser / Eng Carlos

How to change the movement speed on fiber laser / Eng Carlos

the user can define the speeds according to their preferences

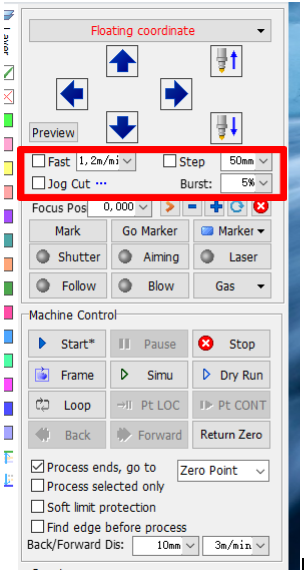

to set it, we use the check box located on the right side.




when the fast checkbox is selected,  we can set the fast speed we recommend 35m/min ( 22 in/s)


when the fast checkbox is unselected,  we can set the normal speed, we recommend 10m/min ( 6.56 in/s)


Also, we can set the step speed on the box highlighted in red, we recommend 1m/min ( 0.656 in/s)


​
