How to fit a text to a circular object in EZCAD?



In the following link you can watch the video




To carry out the process follow these steps:



Step 1

Draw a circle with the "Draw Circle" tool


Step 2

Select the "Draw text" tool and move the cursor to touch the circle and click to make the text fit the circle




Step 3

Write a text and confirm with the "Apply" button



Step 4

Adjust the height of the text and confirm with "Apply"




Step 5

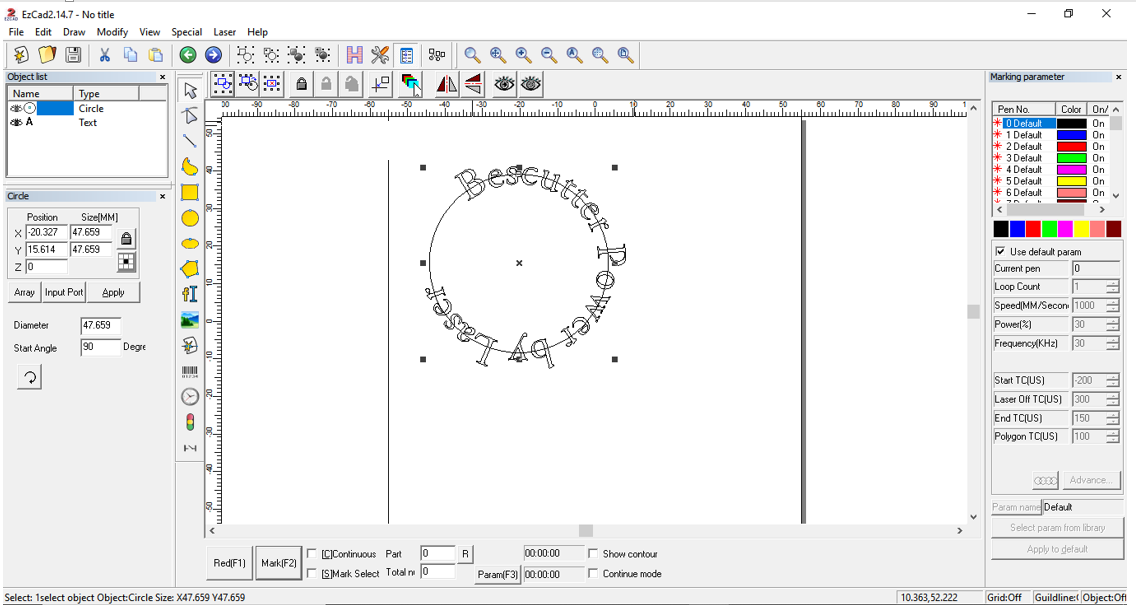

Press the "Path Text" button and modify the value of the angle and the location of the text in the circle and confirm with the "Ok" button.




Step 6

Select the circle and delete it with the delete key on the keyboard




Step 7

Select the text and with the “Hatch” tool, place the fill by activating Hatch1 and selecting “Enable” and “Marking Contour” and confirm with the "Ok" button.
