How to install RDCMarkVisionSetup V 1.00.55?
First make sure you have the latest updated version of the software, the latest supported version (RDCMarkVisionSetup V 1.00.55). If you do not have the latest version, please download it here
1. Download the software installer to the computer where the CO2 machine will be operated.
2. Then use the right click and select run as administrator

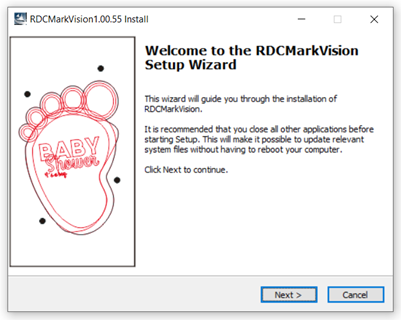

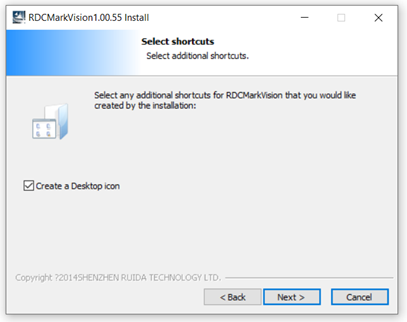

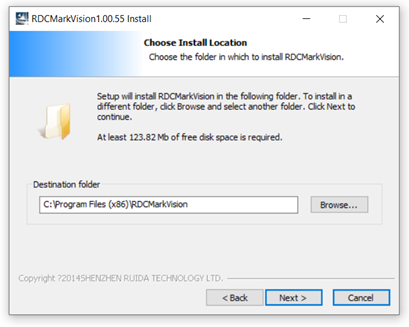

3. Click on NEXT when the following dialogue windows appear:

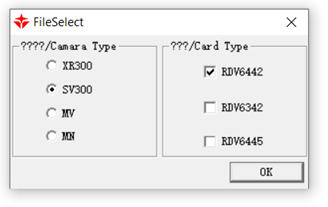

4. Select the “SV300” option on the left side and “RDV6442” on the right side, on the left side is the camera reference and on the right side is the motherboard reference of our laser equipment.
Then click "OK"

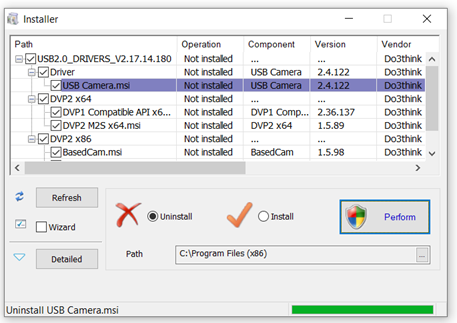

5. Click on perform

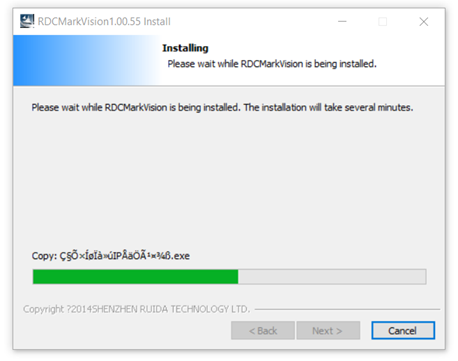

6. After successful installation of the software, the following notification will appear.
7. Finally, click on the "X" to close the installer window.
