This is a system based on intelligent visual recognition of patterns to cut the material through a virtual outline.  In this sense, you need to follow the debugging steps and then calibrate the camera to assure a correct performance.

The aperture and focal length of the camera need to be adjusted to have a better quality of the image. This is a very important step during installation, because these parameters can’t be adjusted after the camera is installed.

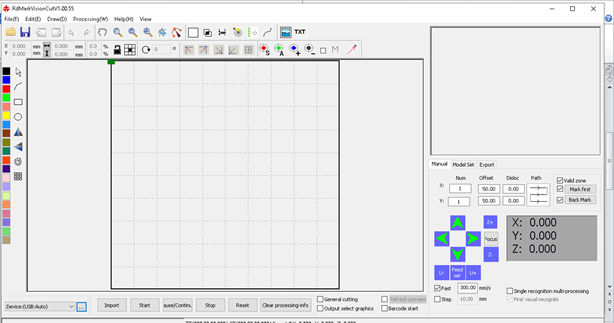

1.       Go to the control panel - located on the right side of the screen.

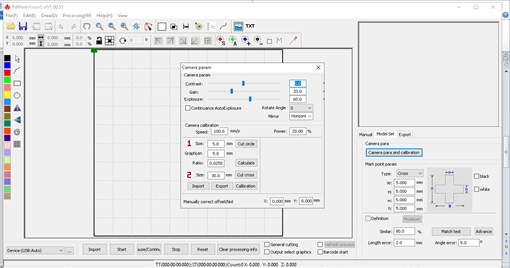

1.      2. Click on model set and select  the camera parameter and calibration button.

3. Adjust the light source of the camera first, then click on the Explosure button. By doing this the camera should automatically adapt the image to avoid darkness. In case you don’t get the desired effect you can select the “Continuance Autoexposure” option to automatically configure the exposure of the camera.



4. Before starting the calibration you need to place a piece a paper on the working table right under the laser head to perform the test on it. Enter de value on the size field,  then click on cut circle, so the machine can cut it on the paper. It is recommended to measure the size of the circle the machine has cut because if there’s any difference between the size you entered on the software and the actual size of the circle, you can indicate the real size on the GraphLen Field and click on Calculate. With this  the software will define a ratio and the camera will recognize the exact measure.

5. Click on the cut cross button.  The machine will cut a cross which you can see on top of the control panel.

6.  You can observe that the system shows another virtual cross on the screen. Use the right click on your mouse to move any of the crosses and make them overlap.

7. After both crosses overlap, you will click on the Calibration button and the process will be completed.
