To change the head movement setting after cutting whether it does not return to the origin point set by the user, returns to the origin point or the machine origin point (0,0) or places a specified point on the axis x and y can be done as follows.



Step 1:

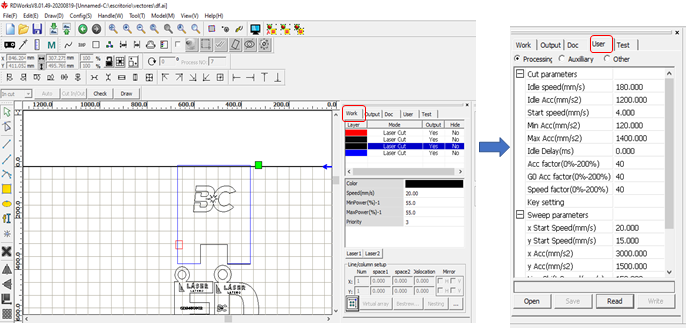

Enter the RDworks program, in the process control bar change the "Work" menu to the "User" menu






Step 2:

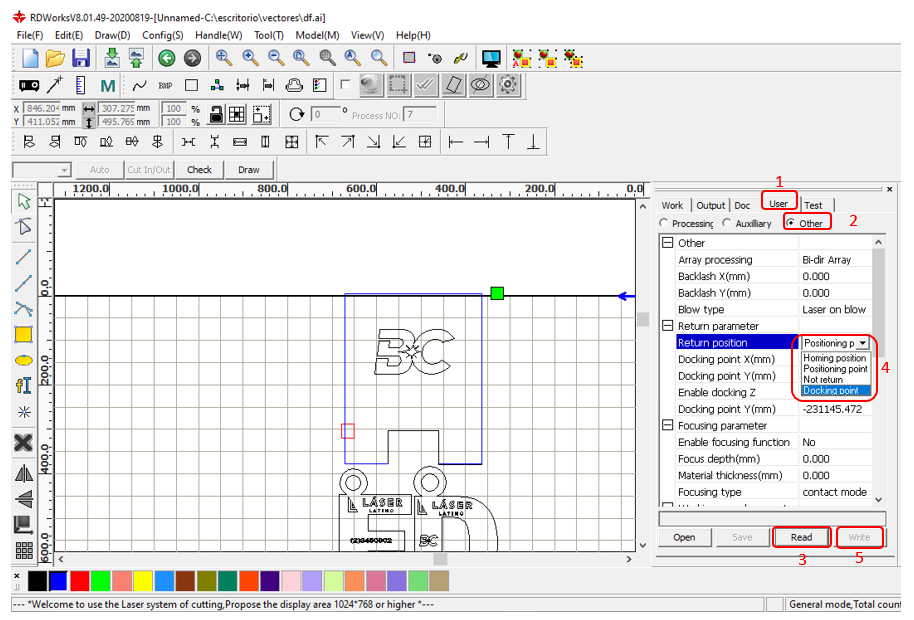

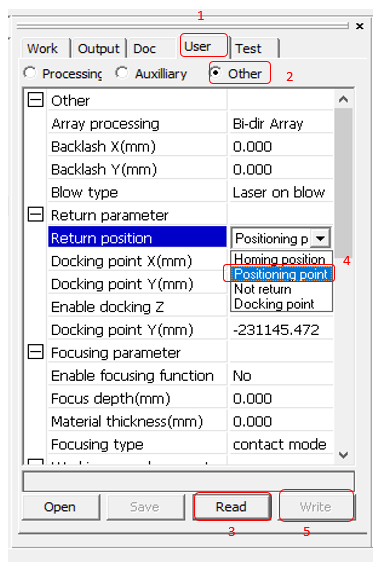

In the “User” menu select the “other” option, click on the Read button, in the “Return parameter” submenu change the Return position option to the desired option and confirm with the write button



Step 3

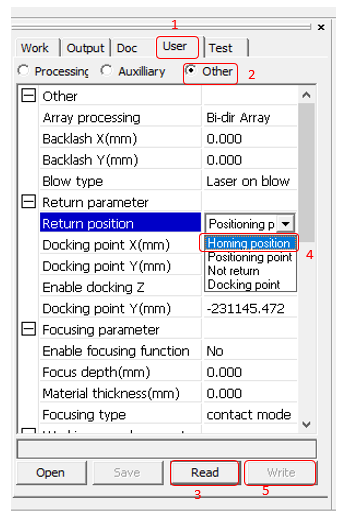

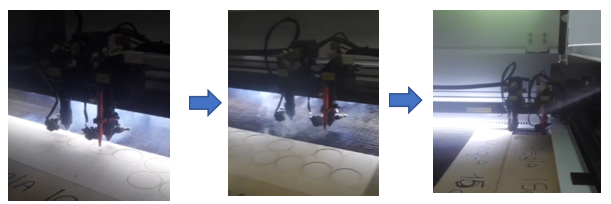

If you require the laser head to move to the machine's home position, select the option “Homing position” and confirm by writing the parameter to the machine with the Write button.







Step  4

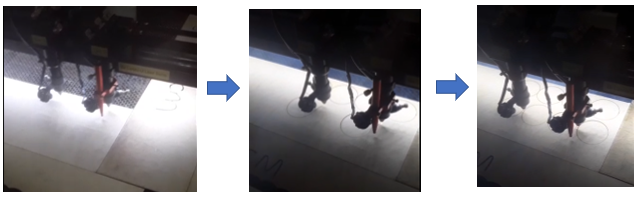

If you require the Laser Hear to move to the origin position configured by the user, select the option “Positioning point” and confirm by writing the parameter to the machine with the Write button









Step  5

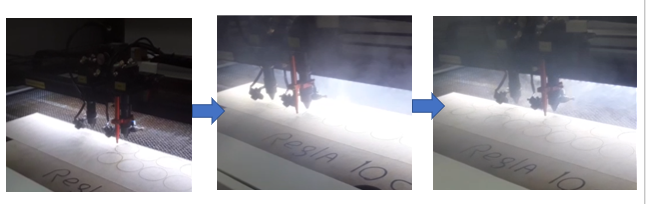

If you require that the head not move and stay at the end of the cut, select the option “Not Return” and confirm by writing the parameter to the machine with the Write button







 Step  6

Si requiere que el cabezal  se desplace  a una coordenada específica se debe seleccionar la opción “Docking Point” y colocar las coordenadas tanto en el eje X como en el eje Y donde queremos que se ubique el cabezal luego que termine el corte, confirme escribiendo el parámetro a la máquina con el botón “Write”





Note:


Remember every time you make a change you must download  the drawing to be cut for the change to take effect. In the event that the modification is not allowed, the software must be reinstalled
