How to set the origin position in CO2 Machine - Ruida Board

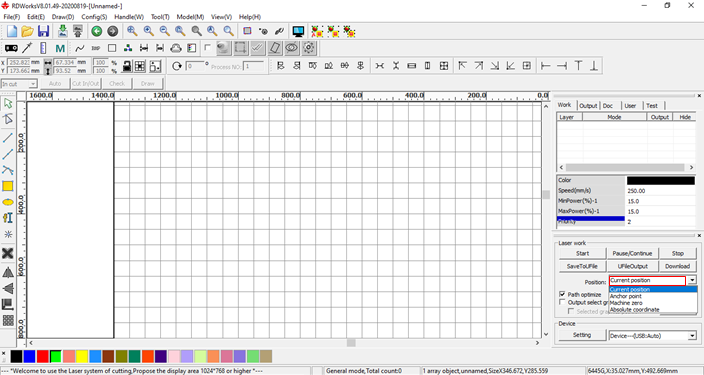

Go to process control bar and change in position “Current position”
There are 2 ways to cut or scan vector File or Bitmap File in RDworks,
One way is doing in the RDworks Software directly

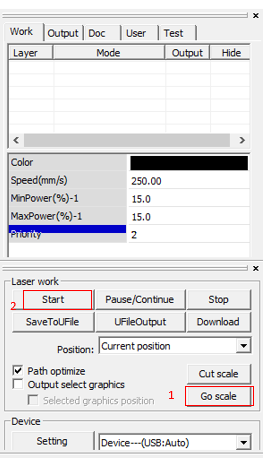

The machine is going to start the operation in the position that is the laser head. If the movement is ok, click “start” button to start the cutting or engraving.
If the
machine is not going to the right position, check the origin position and home
position in RDWorks
software
Go to config Menu --> System Setting and change the position if the origin
position is Top Right select this position as the image
The

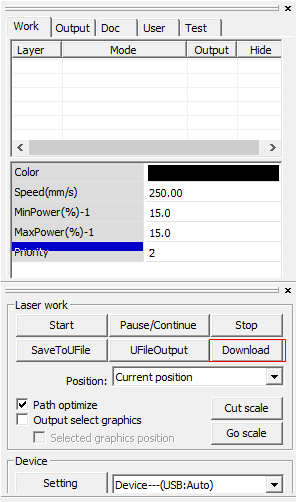

Second Way is to download the file to the machine and open in the operation panel
Press the "File" button, then move the laser
head to the origin and press the origin button, then press the frame button, and finally press the start button
to cut or engrave
If the

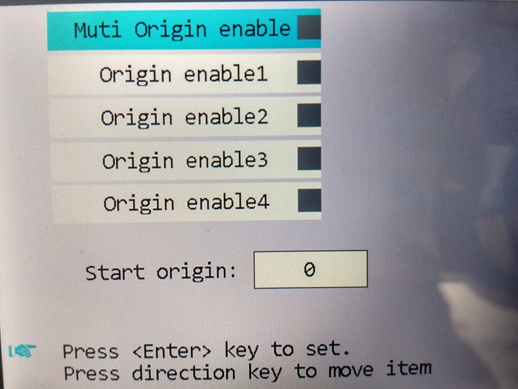

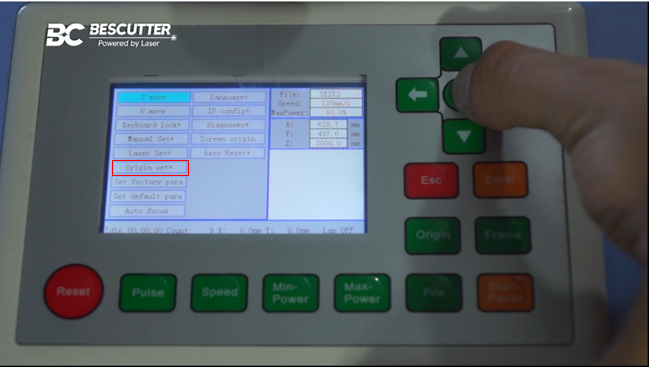

origin button is not working go to “Origin set+” menu and uncheck the "multi origin enable" option

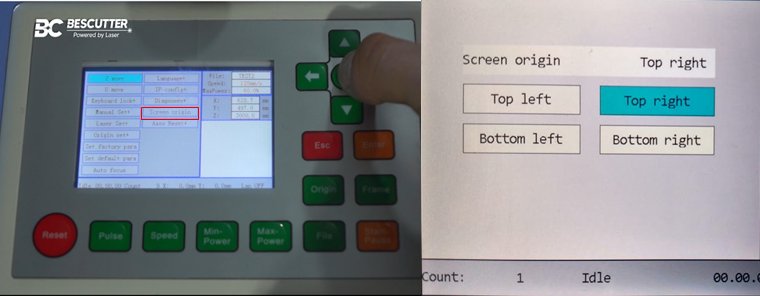

If the file is cutting or engraving backward, go to "Screen origin" and select Top Right
