1. Go to file and click on "Import" or "Open" if you have a file already saved from the software

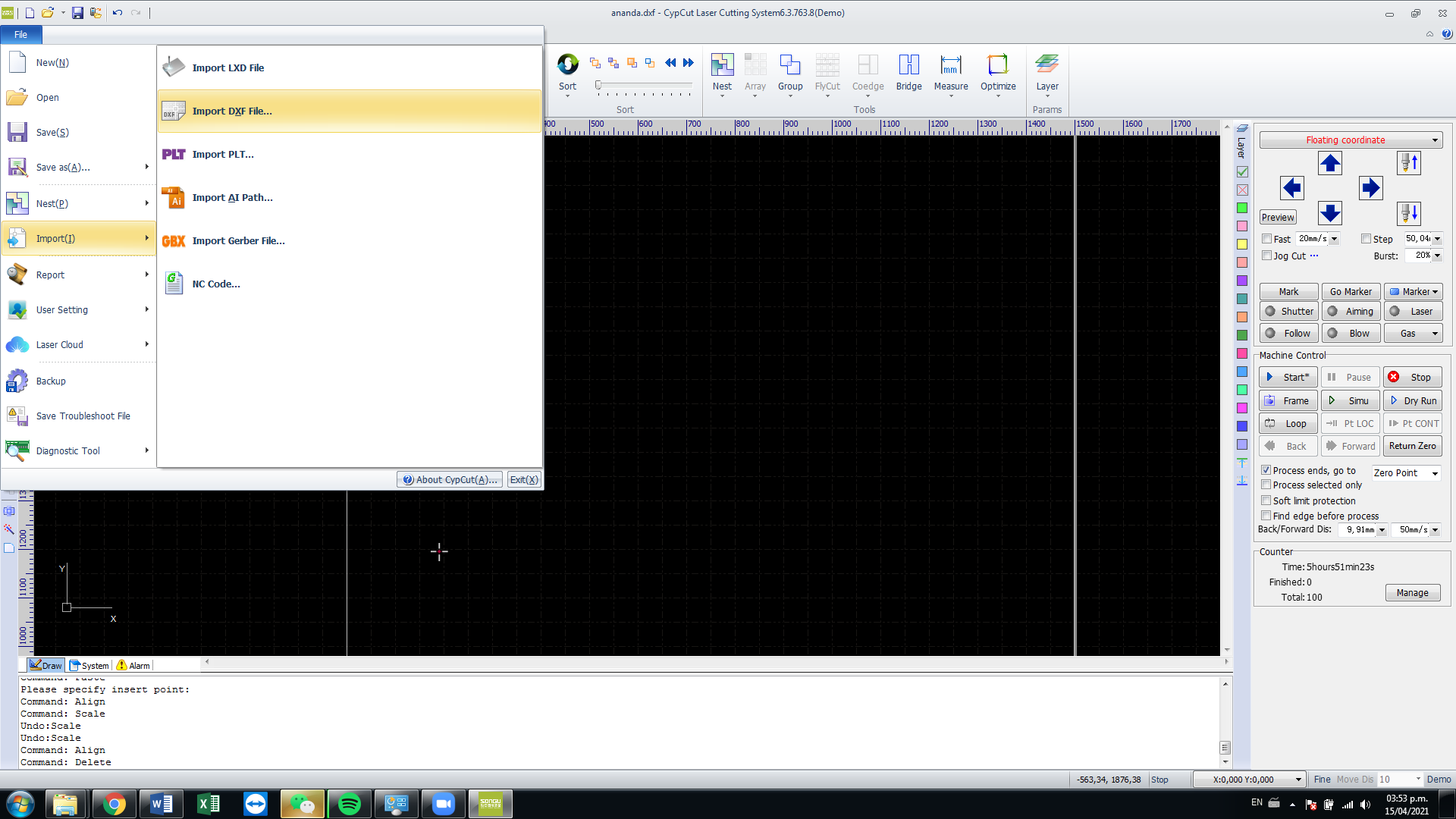

In this case, you have to click on "Import DXF file..."

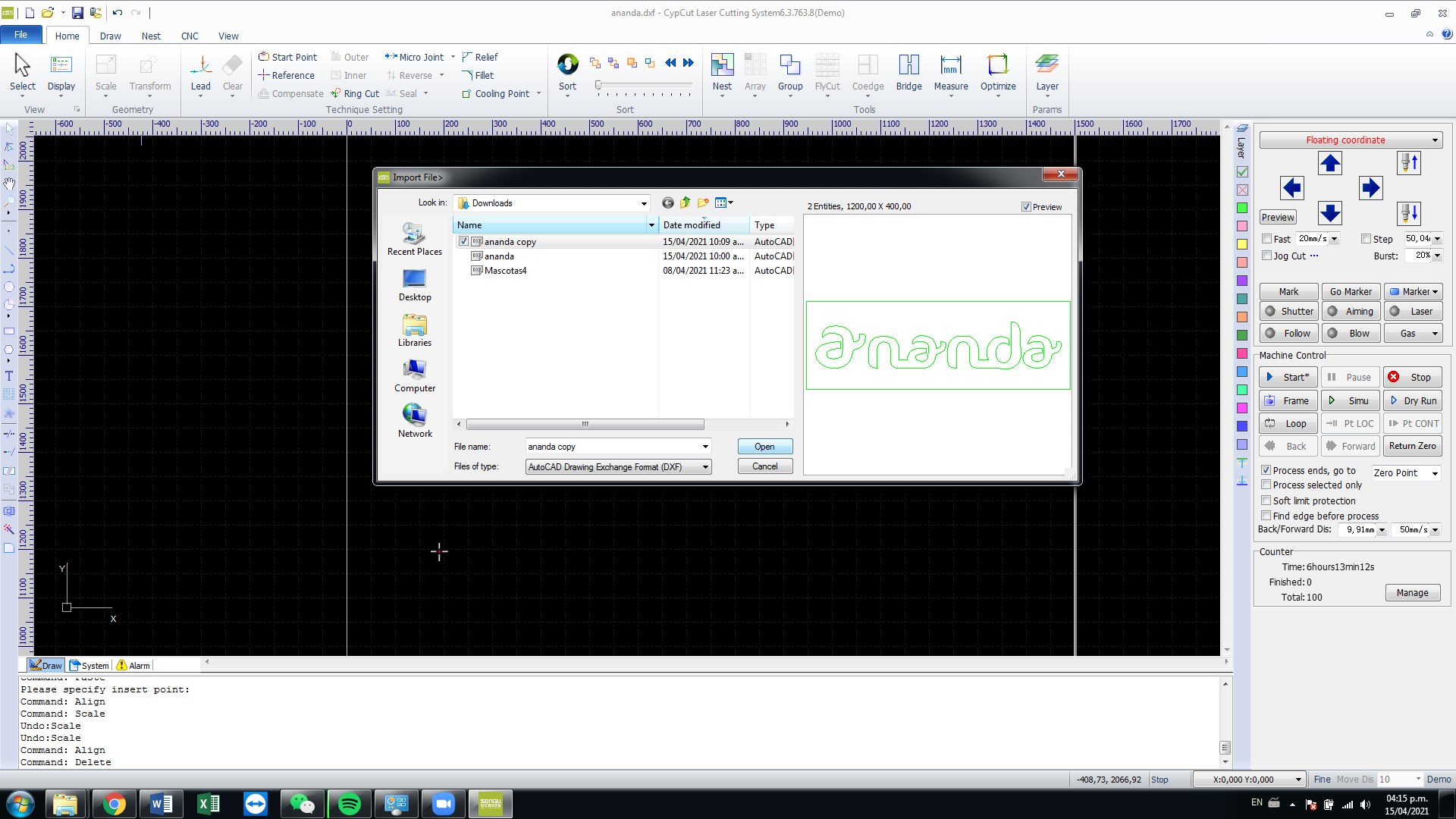

2. Select the design and Press "Open"

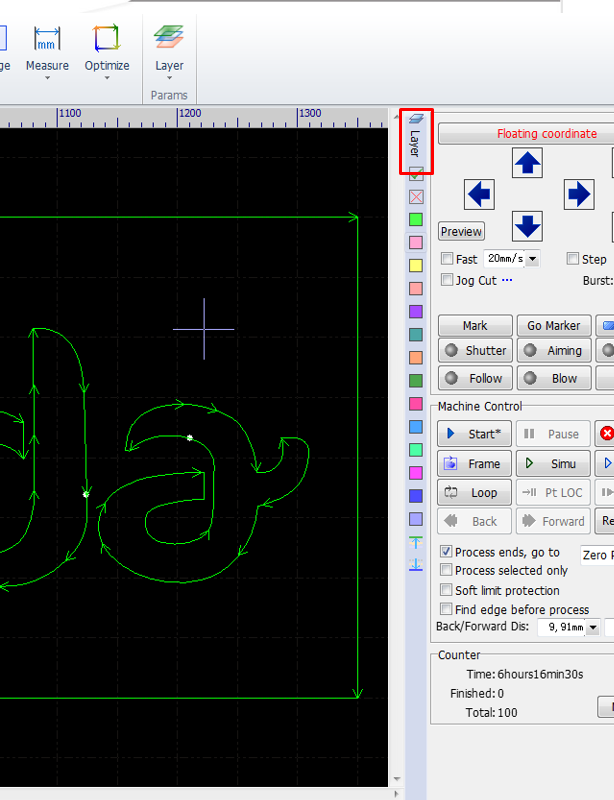

3. Then, click on "Layer"

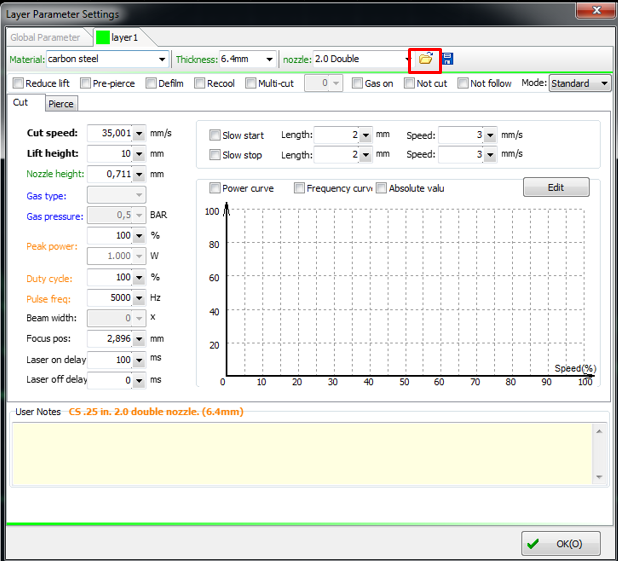

4. Click on "Open" to set the parameter of the material that you are going to cut

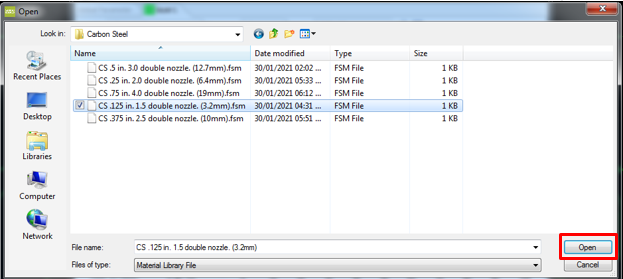

5. Select the material to load the parameters

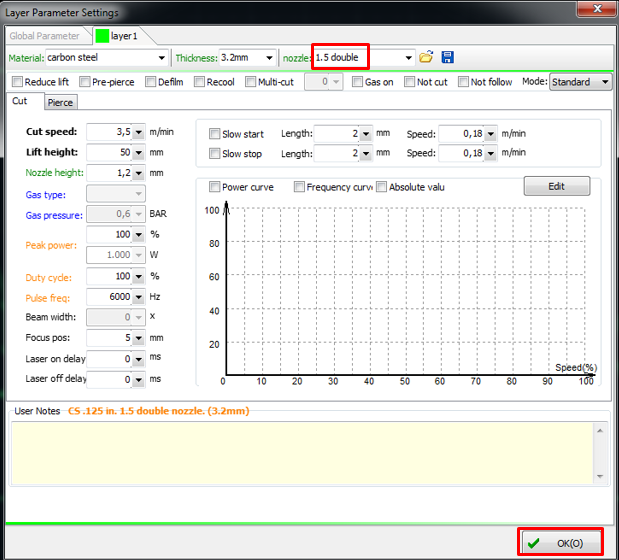

6. Check what nozzle you need to put on the laserhead, press "Ok"


7. Test the pressure of the gas, if you are going to cut with oxygen, set the regulator on 1.3Mpa (190psi). In the case for the nitrogen set 1.6Mpa (230psi) or max 2Mpa (290psi)
8. Once you get the pressure ready and the right nozzle on the laserhead you are ready to cut.
