How to use the autofocus sensor / Daniel
Please check the video to see the procedure:
To use the "autofocus" sensor, follow these steps:
Step 1

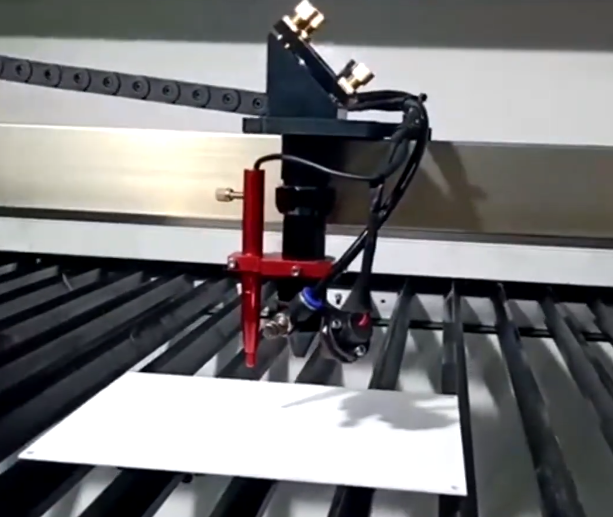

Place the laser head on the material to adjust the focal height
Step 2
Press the Focus Button in the operation panel and confirm with "enter" button
Note:
Notice that the coordinate on the Z axis is not zero.
Step 3
The autofocus sensor will adjust the height of the material to the nozzle which is equal to the acrylic focal guide
Note:
Notice that once the height is adjusted the coordinate on the z axis is zero
