Installing the lens in a CO2 Star Machine / Daniel

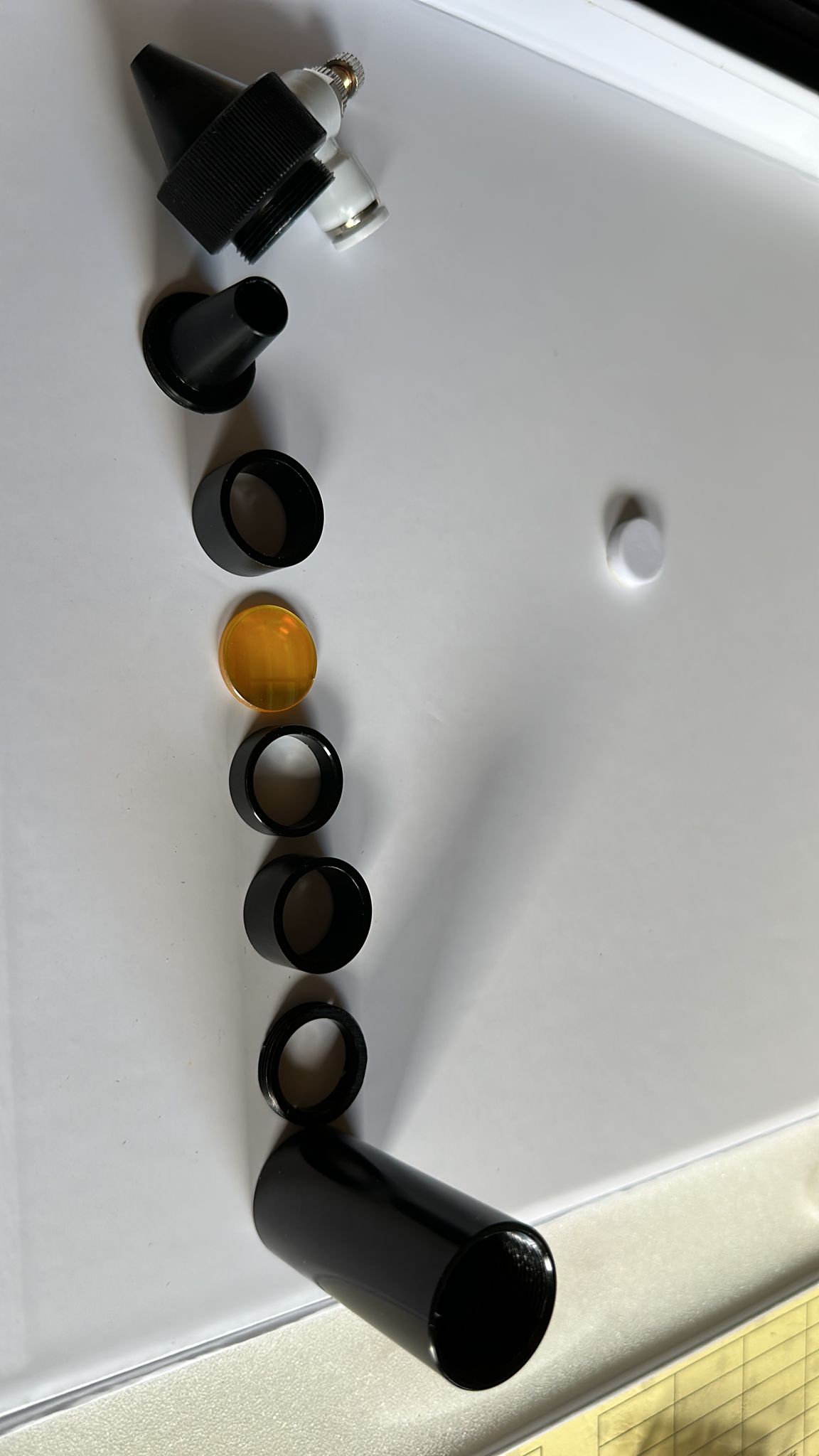

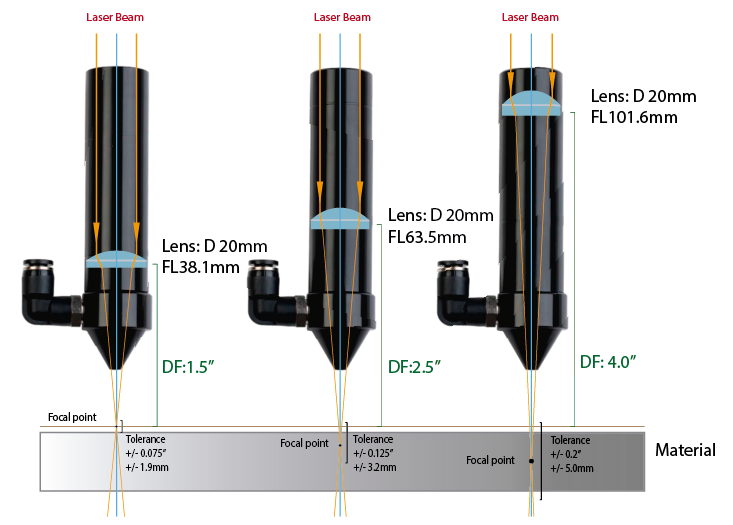

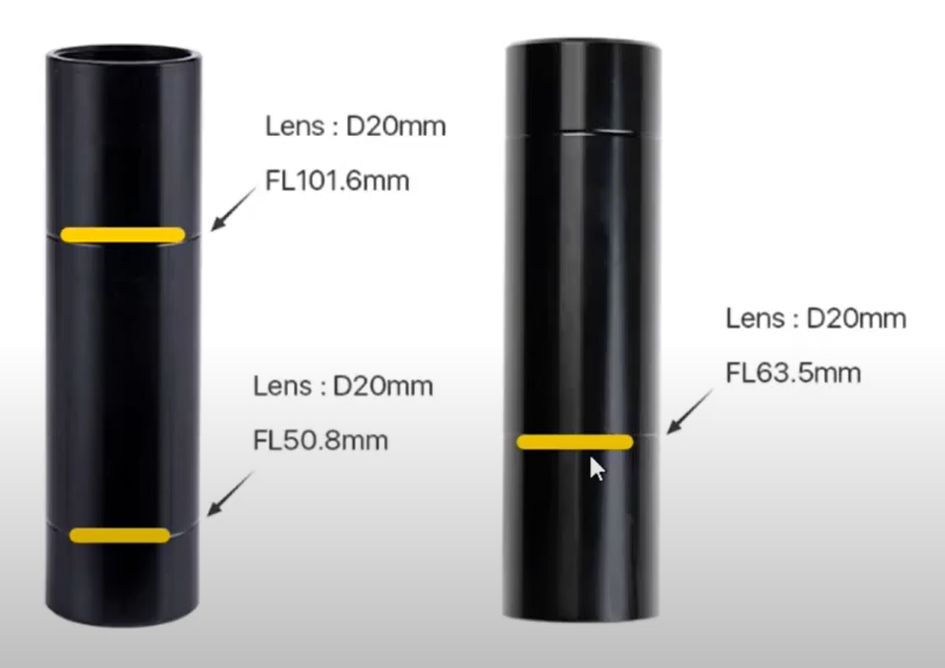

Different positions of the lenses inside the barrel

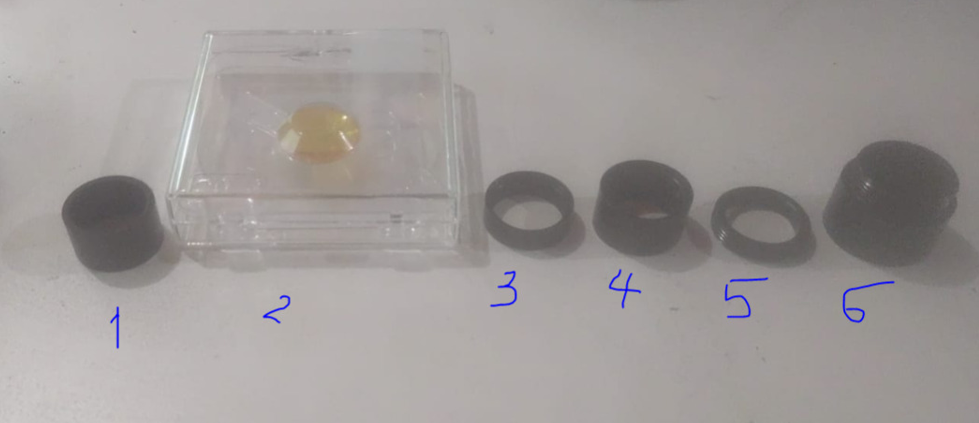

Remember the convex part must be place facing the mirror, flat part to the material
To install the lens inside the barrel of a CO2 Star machine follow the video
FOCAL GAP 7mm

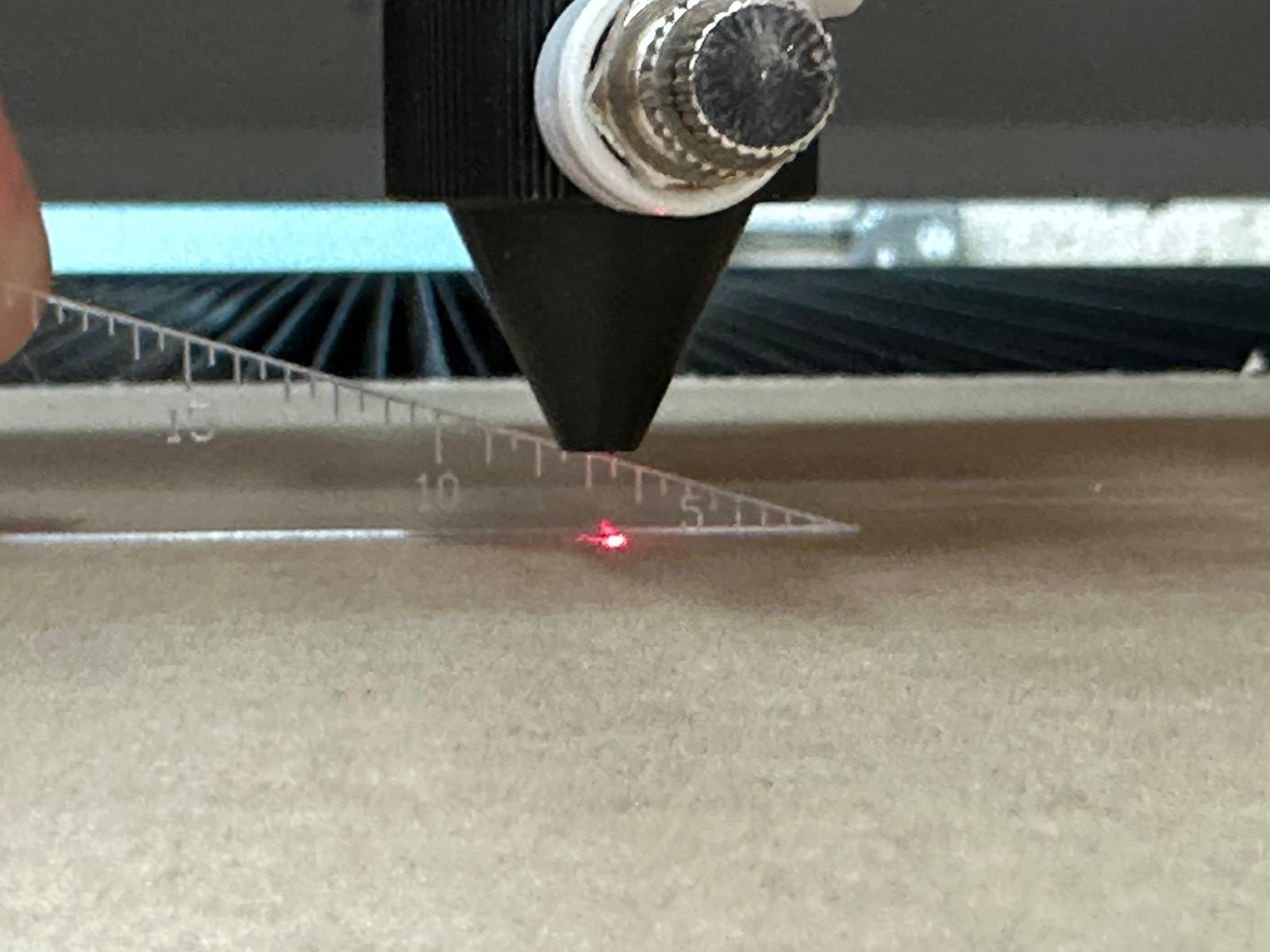

Use the square ruler to set the 7mm, distance from the tip of the nozzle to the material as the photo
