LIMIT CALIBRATION ON THE X AXIS

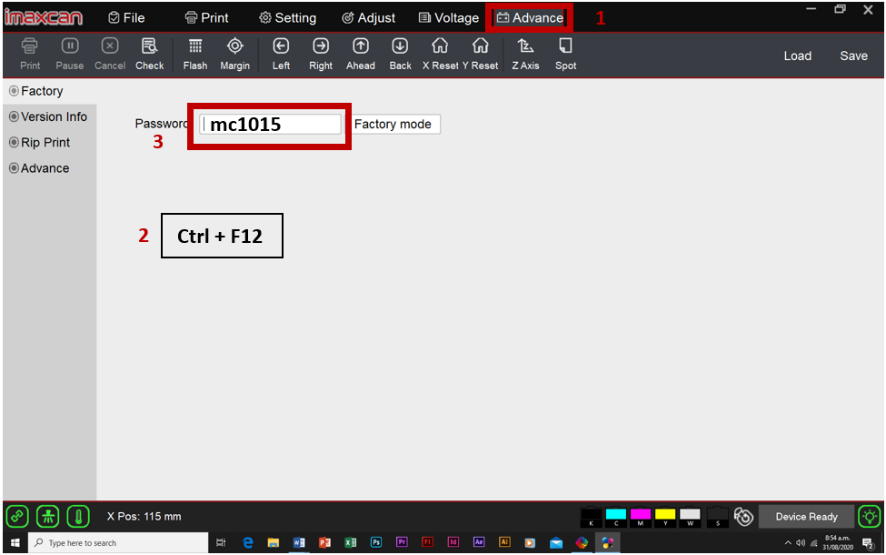

Step 1: To recognize the limit in the movement of the carriage on the X axis, enter factory mode by clicking on the "Advance", place the cursor on the "Password" box and press Ctrl + F12 to switch to factory mode, enter password mc1015 and press Enter, image1.
Image 1.

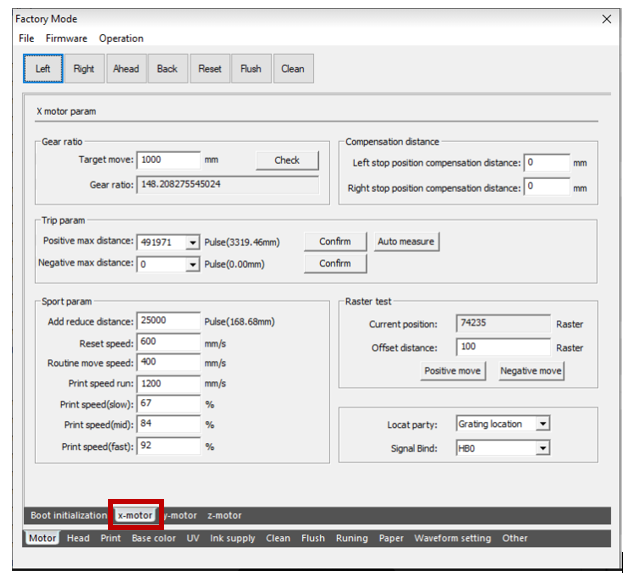

Step 2: Click on "X motor", image 2:
Image 2.

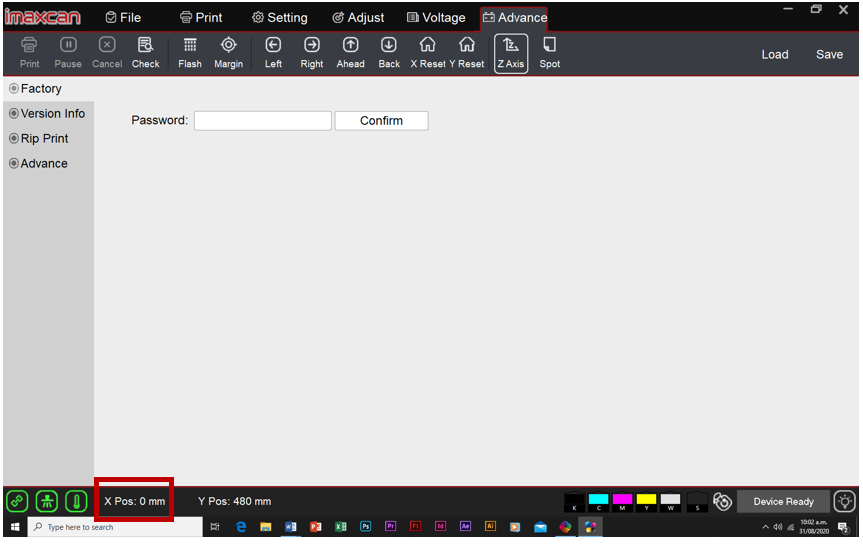

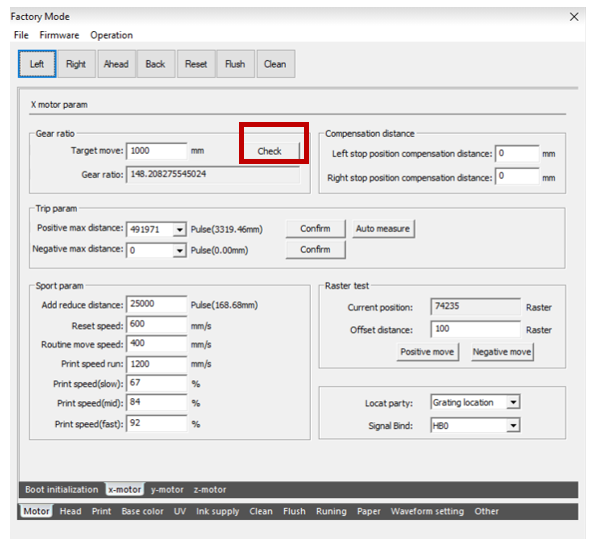

Step 3: Press “Check” to verify the displacement in the X axis, you can see the movement of X in the lower left part of the Imaxcan software, it should reach the number 1000, Image 3.
Image 3.

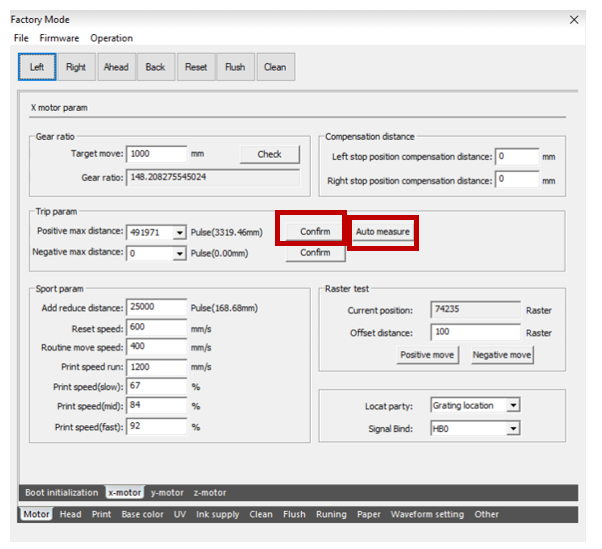

Step 4: Click on the “Auto measure” box and press confirm when the carriage is located at the right limit of the X axis, image 4.
Image 4.
