00 - Check the mirror 3 to the nozzle alignment / Daniel

To see how the calibration is, it should be noted that the laser beam mark is in the center of the nozzle outlet.

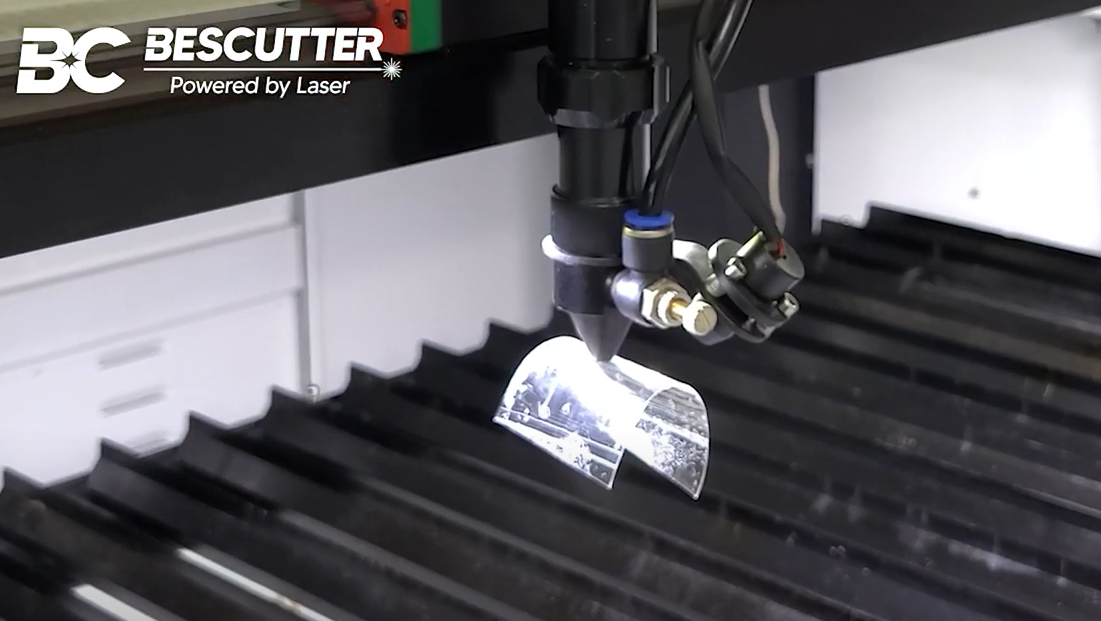

Set the maximum power to 10%, put transparent tape on the tip of the nozzle, and press the pulse button on the operation panel of the machine.

Perform this procedure by locating the head in the 4 corners of the worktable

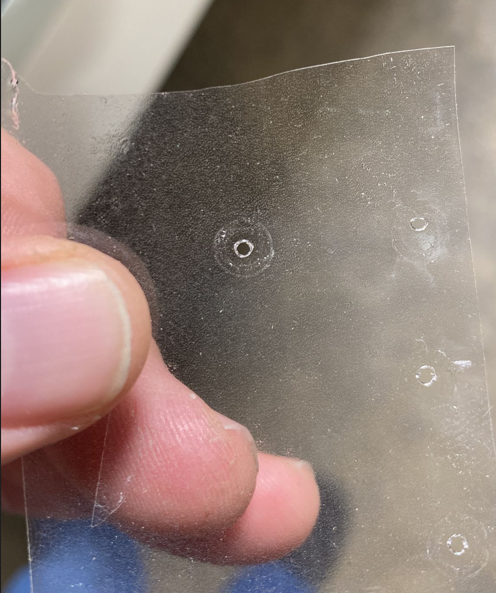

Note: check that the mark on the nozzle must be concentric with the beam cut with that power

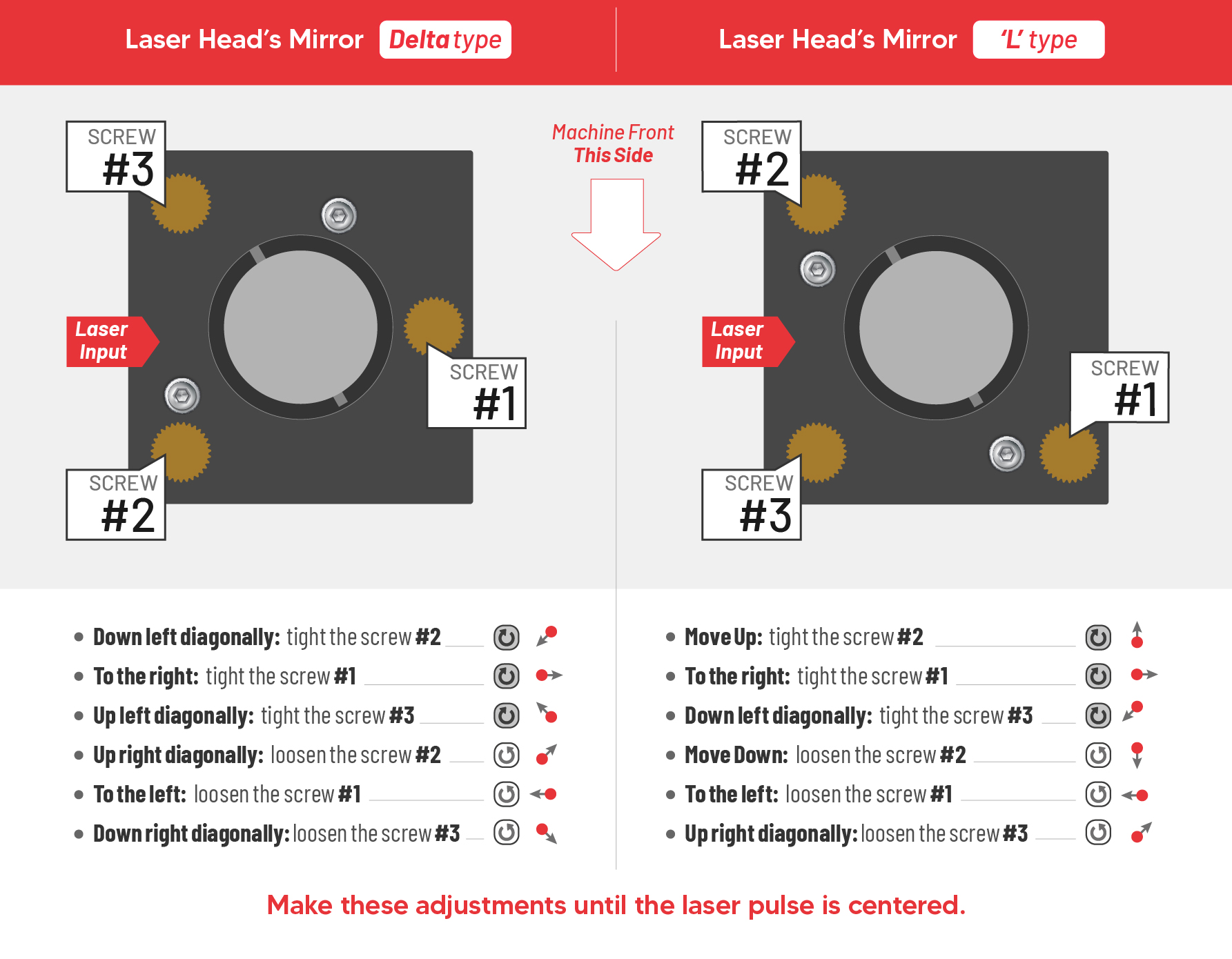

if the mark on the tape is not going through, the laser beam may be touching the nozzle, remove the nozzle and place the transparent tape on the barrel including the lens and pulse the laser and adjust with the screws of the third mirror until it is centered, follow this guide illustration
