MODEL SET RDMARKVISION PARAMETERS

  1. Angle error:

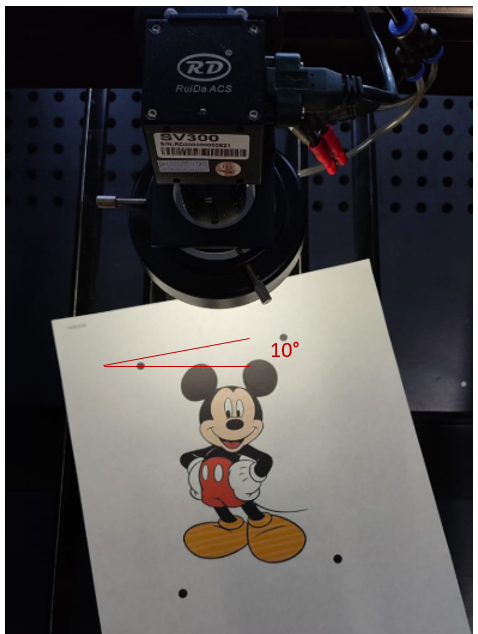

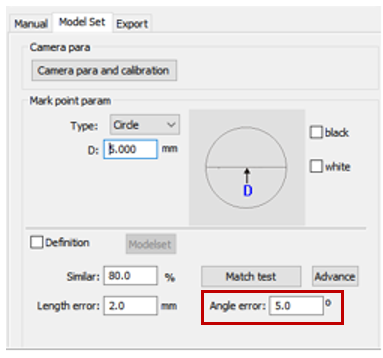

The software allows the reading of misaligned patterns, as seen in the following image; Increase the parameter in the box "Angle error", if the design has the patterns with different angle. For aligned designs, this parameter is set to 5 °.



  1. Stand time

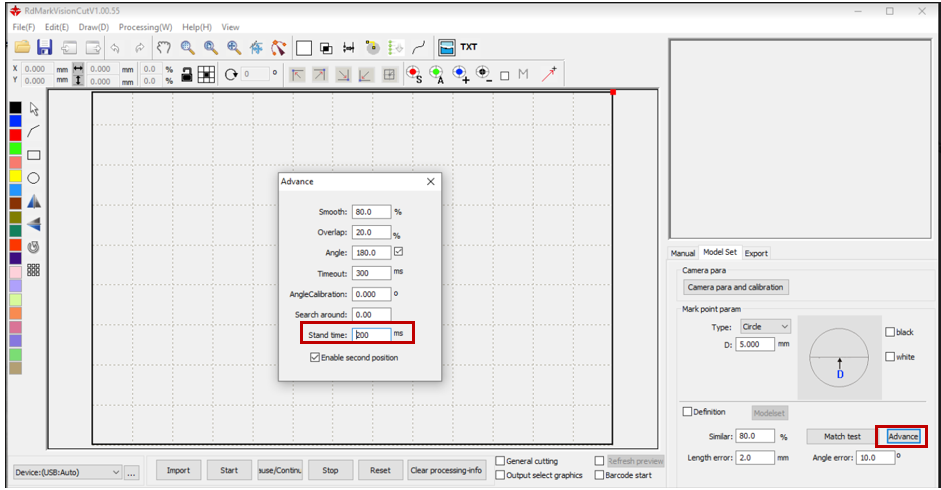

The camera has a pattern recognition time, for this, press “Advance” and configure the “Stand time” box with the recognition time value that you require.



  1. Similar

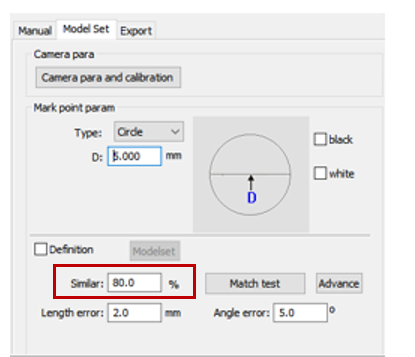

Using the "Similar" box, configure the percentage of coincidence between the printed design and the design in the software.
