ORIGIN POINT CONFIGURATION

Step 1: Print a 5x5cm square on the work table, setting the coordinates X = 0, Y = 0 in the software.

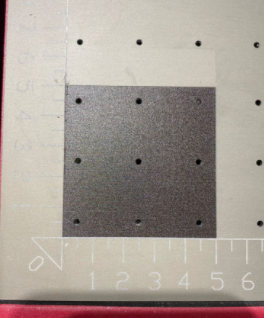

Step 2: The square should look exactly at the 0,0 point, as shown in the following image:

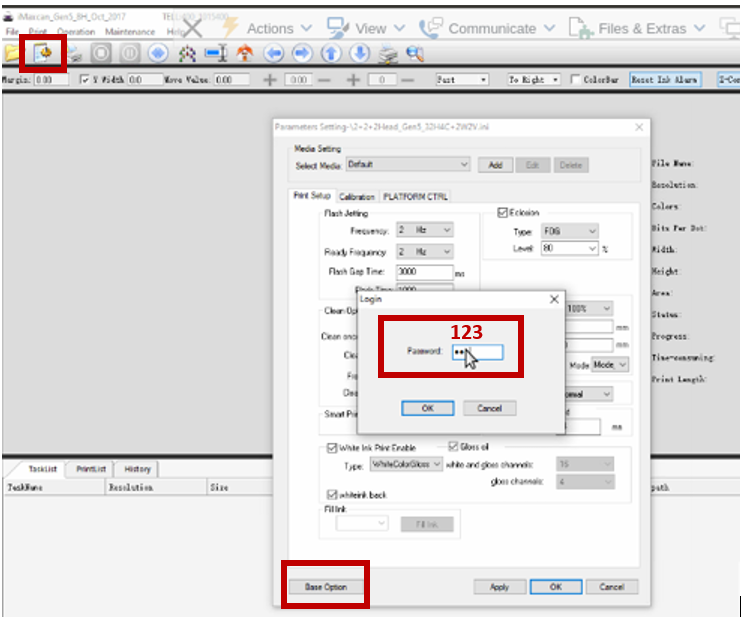

Step 3: If the origin position is wrong and the square is printed in a different coordinate, you must set this offset in the software. Press the "Parameters setting" box, then click "Base option" and enter the password 123 and click "OK".

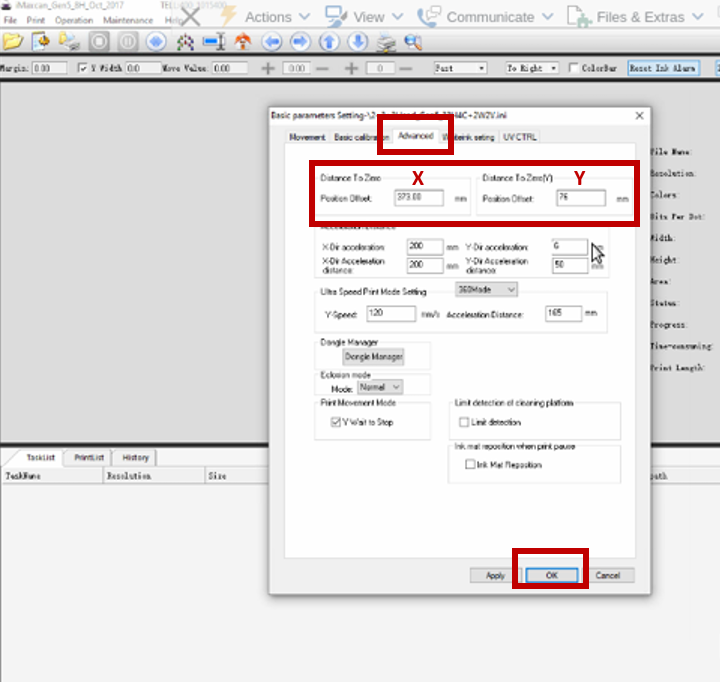

Step 4: Go to the “Advance” box, enter the offset distance in mm in the “Distance to zero” box for X and enter the value of Y in the “Distance to zero (Y)” box, then press “OK”.
