Precitec’s Driver Connections to BCL3766 - Fiber Laser / Engineer David
(LightCutter 2.0 BM12092 Laserhead)
The Precitec Driver has 12 pins and there´s only 9 that is going to use to communicate the driver with the machine.

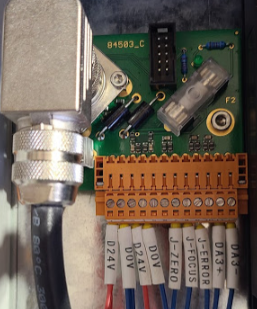

As you can see in the picture:
Pin 1: 24v
Pin 2: 0v
Pin 3: 24v
Pin 4: 0v
Pin 5: No use
Pin 6: No use
Pin 7: JZero
Pin 8: JFocus
Pin 9: JError
Pin 10: No use
Pin 11: DA3+
Pin 12: DA3-

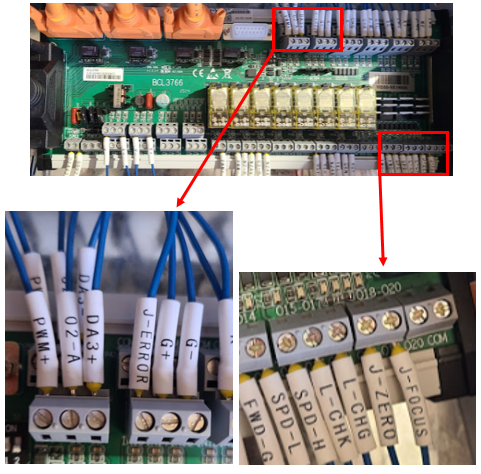

Now, connect those 12 cables in the next positions:
Pin 7: JZero goes to OUT18
Pin 8: JFocus goes to OUT19
Pin 9: JError goes to IN15
Pin 11: DA3+ goes to D2+
Pin 12: DA3- goes to D2-
Finally, connect the wires that came from pins 1 and 3, to 24v and the wires that came from the 2 and 4 pins to 0v.

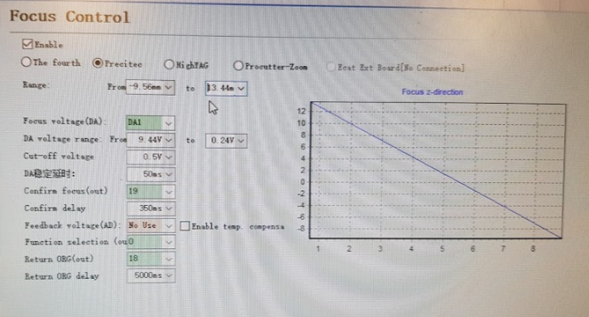

Set the next settings on “CypConfig” to get ready the Laserhead
