Here is the following video that shows how to connect the water hoses to the precitec laserhead.


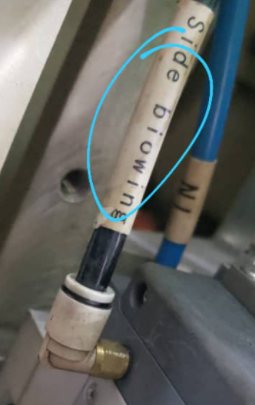

Remember that the Black hose that says "Side Blowing" is for the assistant air to cool down the ceramic ring.



The pressure of the assistant air can be adjusted from the valve that came from that hose next to the laserhead. Set it between (100-110psi)
Make sure that all the hoses are connected good, when you turn on the chiller please make sure that you don't have leakings on the laserhead. If that is the case, turn off the chiller and please double-check that the hoses are good, if not cut the end on the hose and try again or replace it if it is necessary.
