Reliable resetting



If the controller is enabled with the function of double heads linkage, X/Y/Z axis “Enable home” and “Auto home” functions must be enabled at the same time, the X/Y/Z axis reliably reset to their home to find the origin limit when power on. After X-axis and Y-axis have looked for the origin, the Z-axis (laser head B) will move to head A to look for origin.

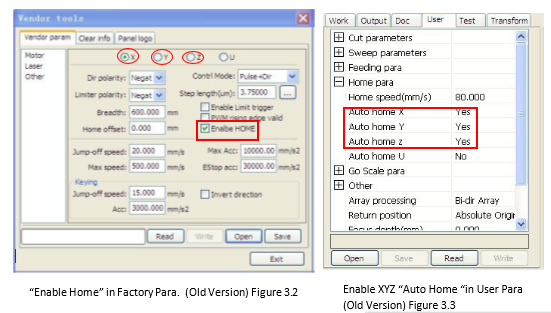

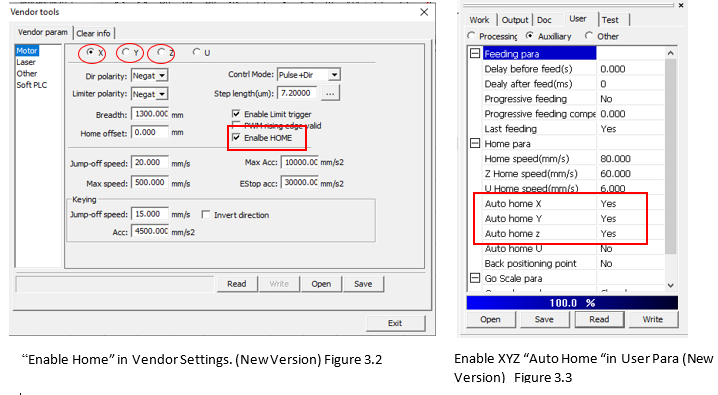

The factory parameters are shown as Figure 3.1, the user parameters are shown as figure 3.2, in these figures, please select the “Enable Home” items and select the “Auto home XYZ” items to “Yes” and write into parameters.
