Secondary cartridge electrical connections / Stefhany
Secondary cartridge electrical connections

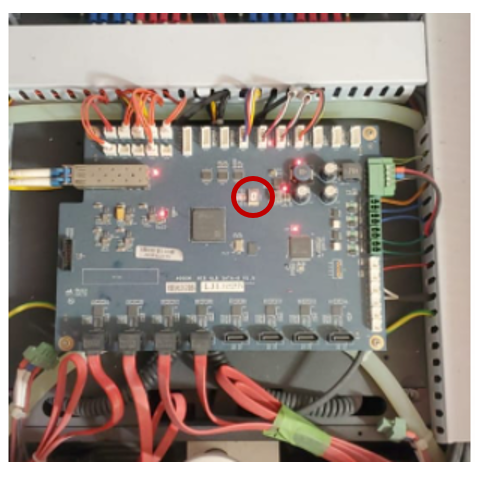

On the head processing card, located on the top of the print carriage, connect the cables corresponding to each color, wait for the motherboard display to show the number 0, this will indicate that the tanks are full of ink.
|
Cable identifier |
Identifier on the motherboard |
|
K |
K |
|
C |
C |
|
M |
M |
|
Y |
Y |
|
LC |
LC |
|
LM |
LM |
|
W2 |
LY |
|
V1 |
LK |

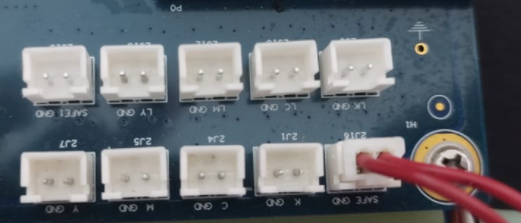

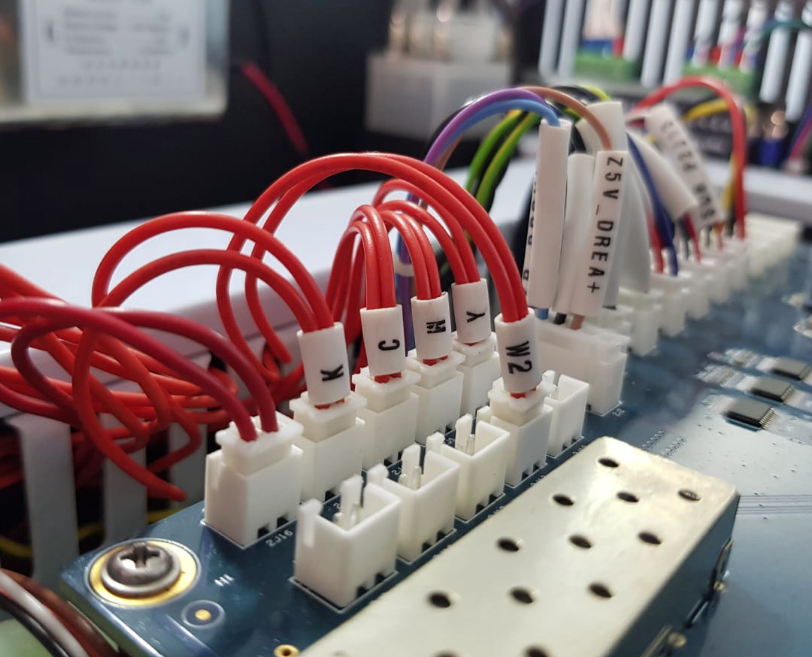

Connect each cable following the corresponding markings in the table above.
