Suction system maintenance
Over time the suction system may lose power for cleaning and maintenance reasons.

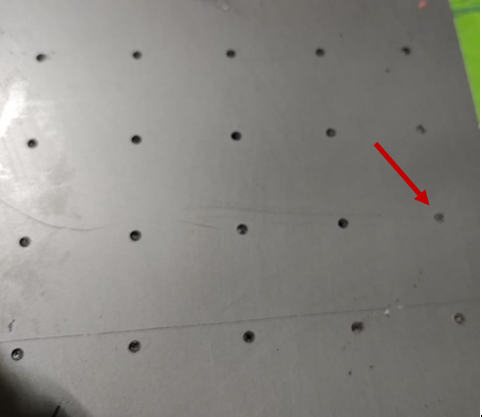

After months of use, it is necessary to clean the perforations through which the suction is made on the worktable, since the ink dries and can obstruct each perforation, affecting the suction.

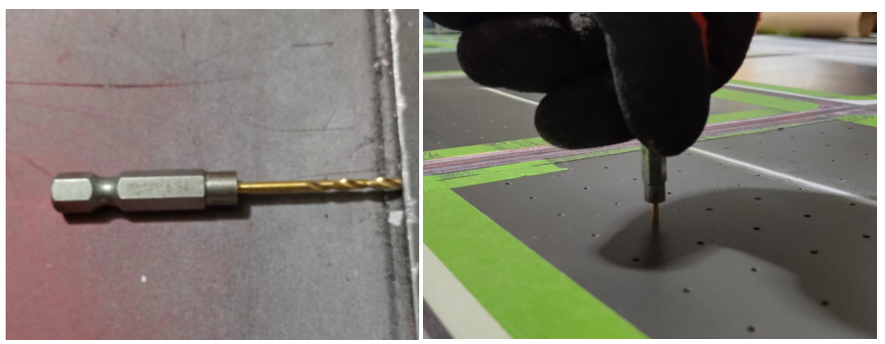

Use a pointed element that allows to clean hole by hole, this will help increase the suction power on the materials.

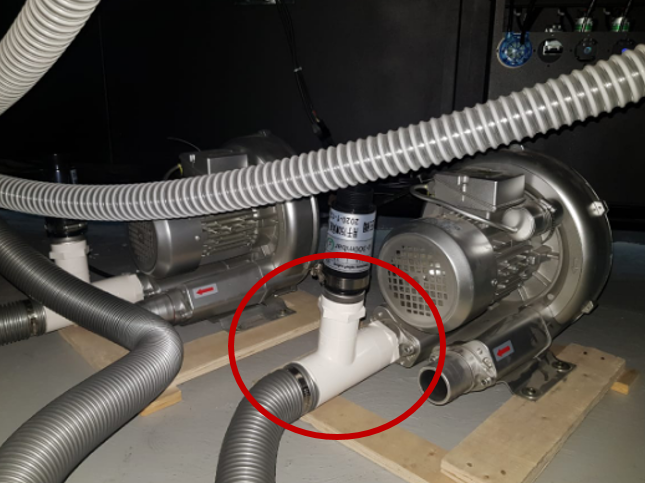

On the other hand, make sure that the hoses, the pressure valve and the connection T connected to the pump, are completely tight, without air leaks.
