ORIGIN POINT CONFIGURATION IN THE IMAXCAN SOFTWARE.

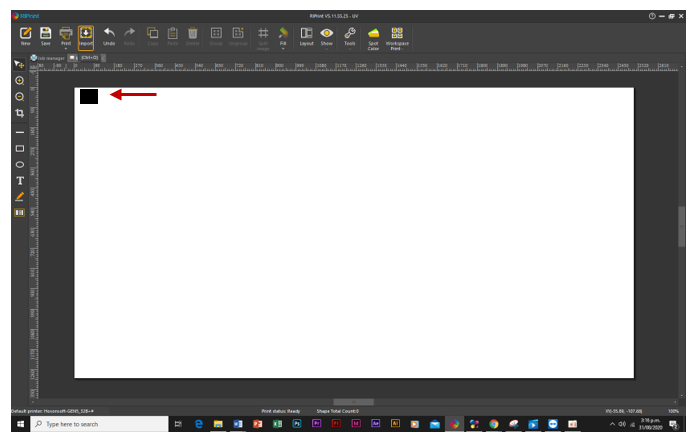

Step 1: Make a black square in the RIPrint software, and place it on the white area, Image 1.


Image 1.

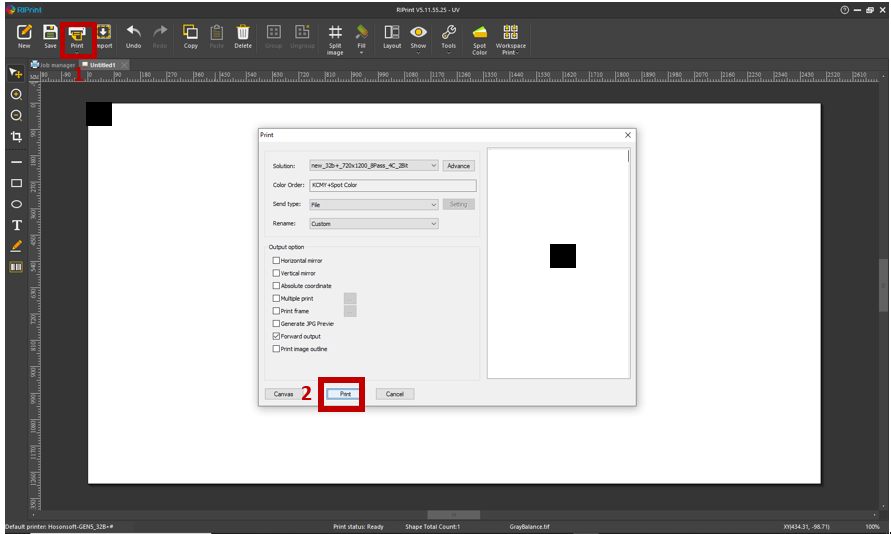

Step 2: Press “Print” and “Print” in the window, image 2.





Image 2

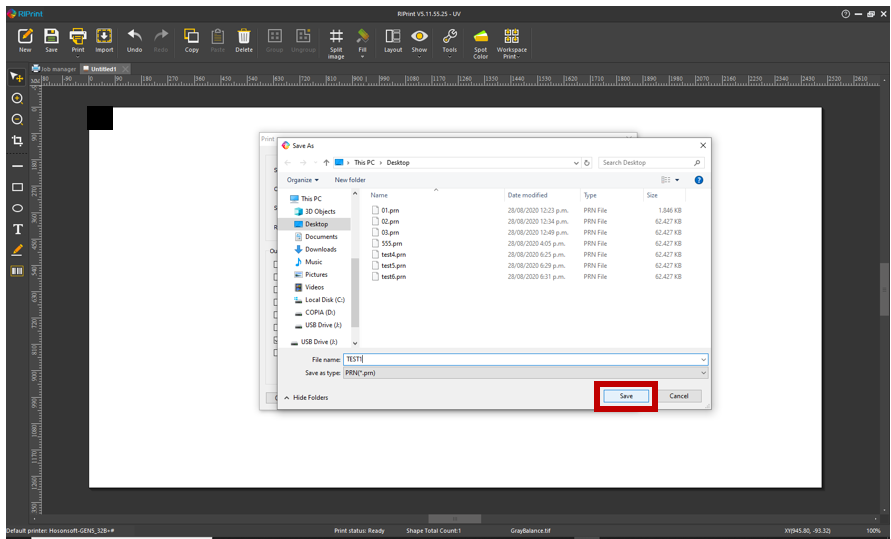

Step 3: Save the file and pressing the "Save" box, image 3.







Image 3.

Step 4: In the Imaxcan software, set the position at the origin point (X = 0, Y = 0).

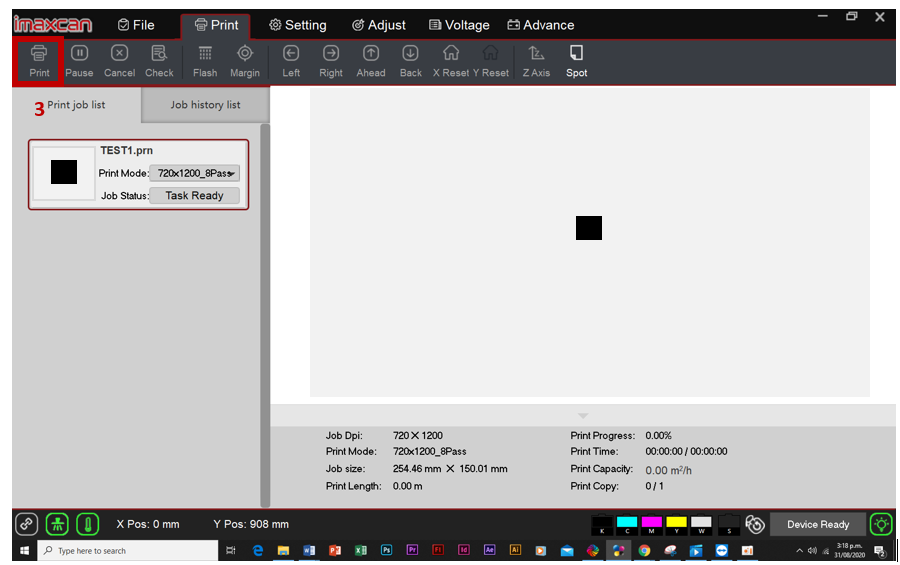

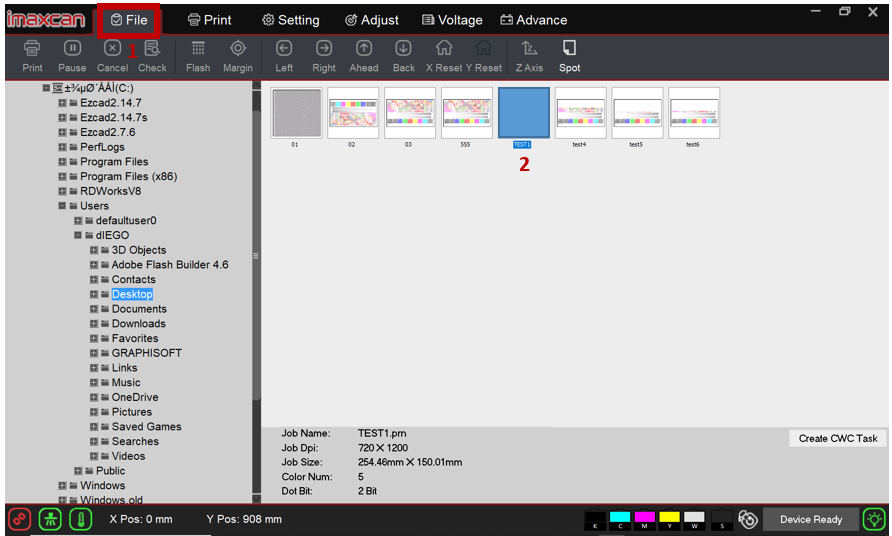

Step 5: In Imaxcan software, press the “File” box and open the image, click “Print”, Image 4.




Image 4.

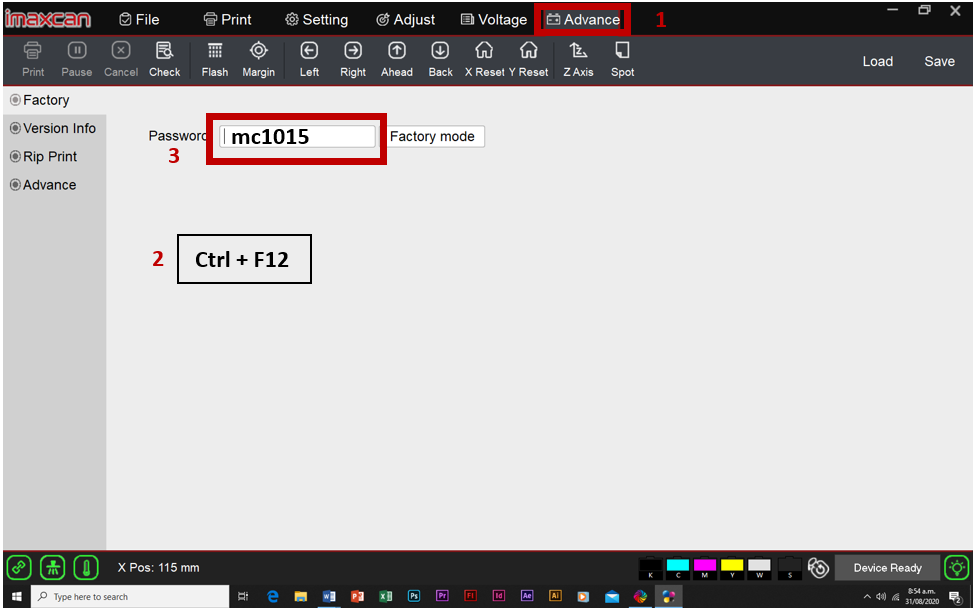

Step 6: Observe the printing coordinates on the table, click "Advance" and enter factory mode, Image 5.


Imagen 5.

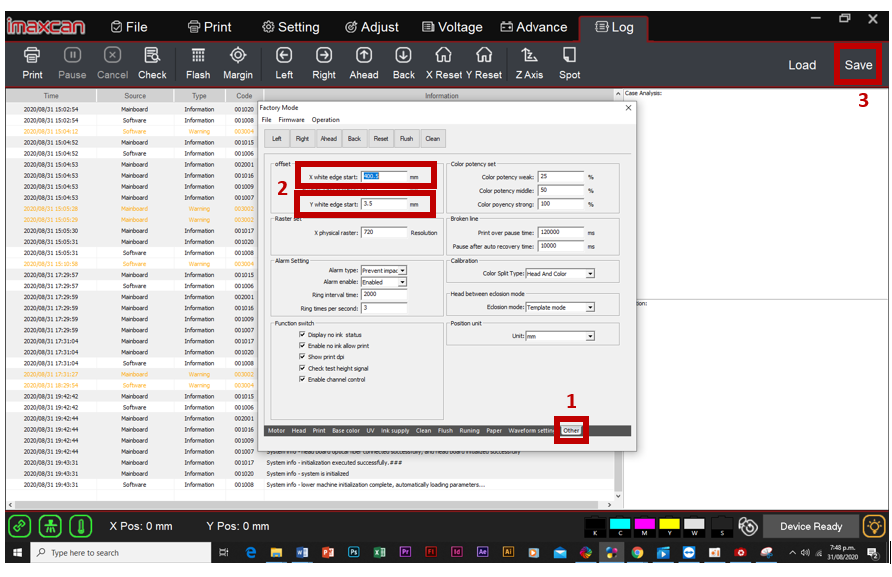

Step 7: Press the box "Other", add or subtract the values ​​of the position of the box on the work table to the values ​​established in X and Y and save in "Save", image 6.




Image 6.
