White ink alarm deactivation / Stefhany
WHITE INK ALARM DEACTIVATION
The printer generates an alarm due to the circulation of the white color, by default this alarm is activated every minute, therefore it is necessary to increase the activation time interval.

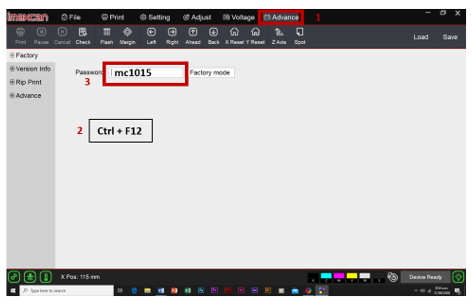

Step 1: Enter factory mode.

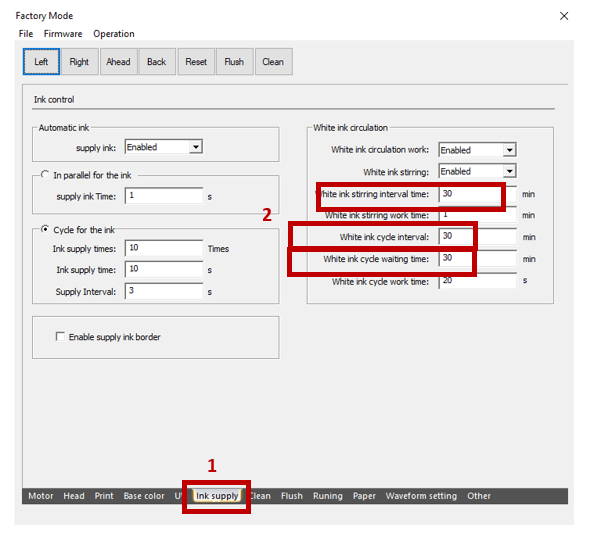

Step 2: Select the "Ink supply" box and increase the values by 30 in the boxes: "White ink stirring interval time", "White ink cycle interval", "White ink cycle waiting time".
Step 3: Save the changes, pressing “File” and “Save”.
