How to measure the voltages in a GY600W switching power supply? /Diego
GY600W Switching Power Supply.
The Reference GY600W switching power supply is a switching power supply that is in charge of powering the Drivers.

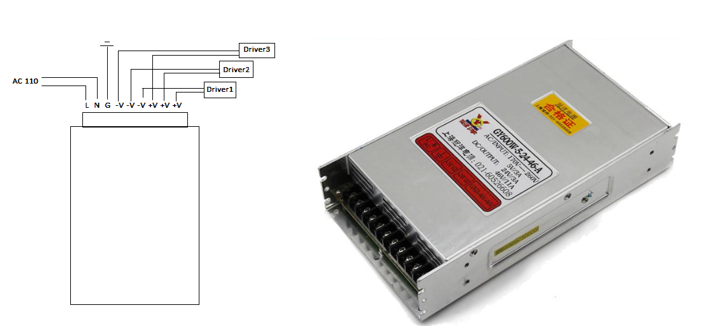

Schematic diagram Power Supply GY600W Switching Power
Supply GY600W

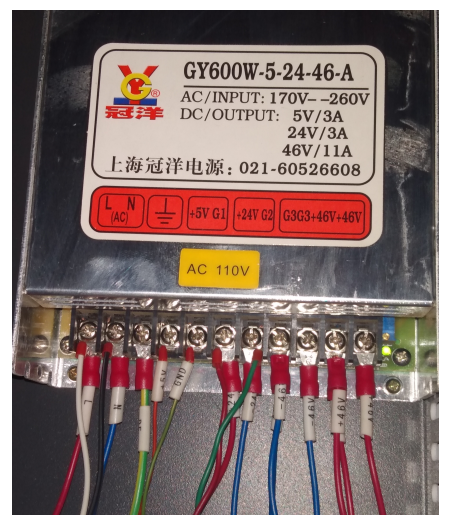

Switching Power Supply Voltage Outputs
To measure the source, the machine must be turned on and by means of a multimeter measure the AC 110V input and the 46V, 24V and 5V DC outputs

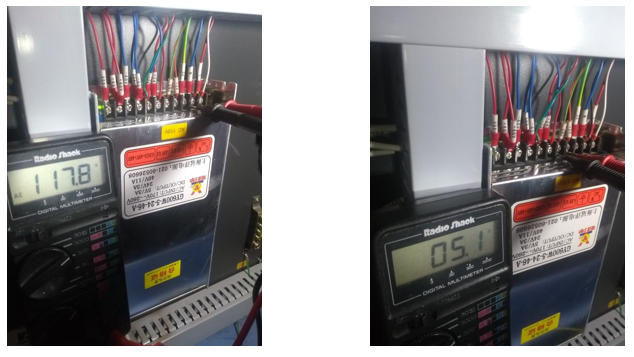

110V AC input measurement 5V DC output measurement

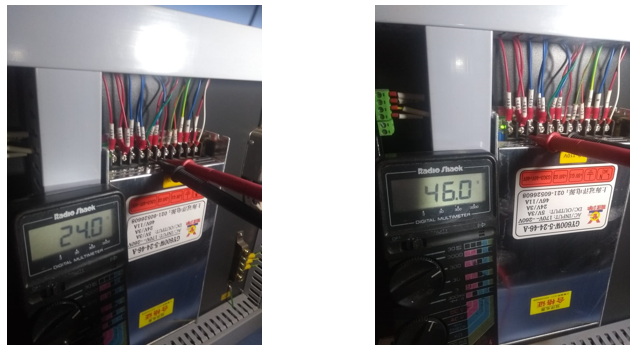

24V DC output measurement 46V DC output measurement
