Troubleshooting Chiller Cw5000 - Cw5200 turned on but unelectrified / Daniel

When the chiller is turned on but unelectrified,  these following steps help you to troubleshoot

Step 1

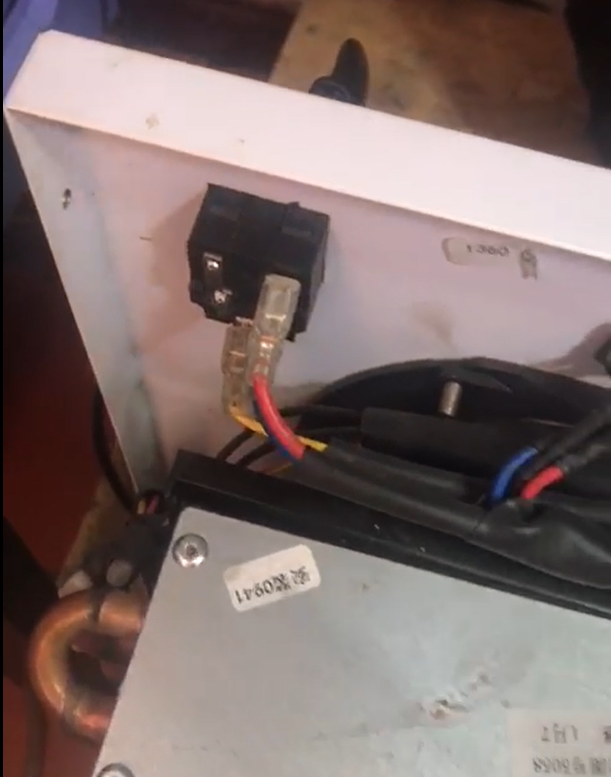

Check the wires from  power cord to the power swich are well connected



link of the video

https://www.dropbox.com/scl/fi/jh6t8gql7m09rj4kjy942/check-connections-wire-in-the-switch-and-power-inlet-socket.mp4?dl=0&rlkey=8w44a1e95mfrkk9icpj1mh0vk

Step 2

Test AC voltage in the power cord with a multimeter

Step 3

Test AC voltage in power inlet socket with a multimeter

Step 4

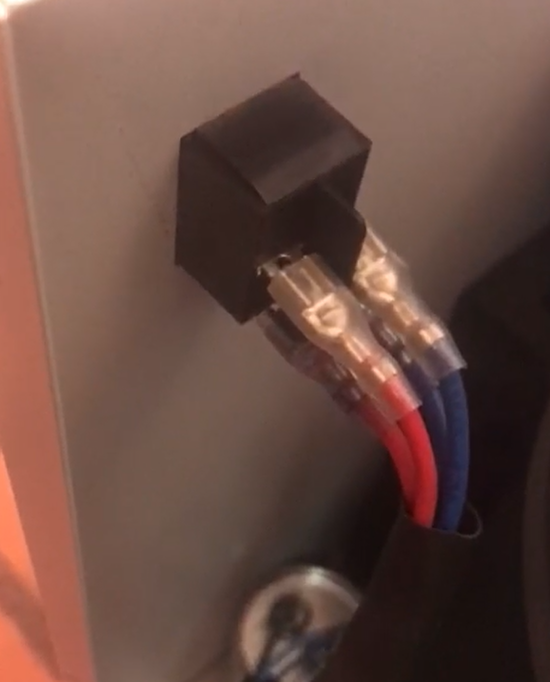

Test AC Voltage in the power switchwith with a multimeter

Step 5

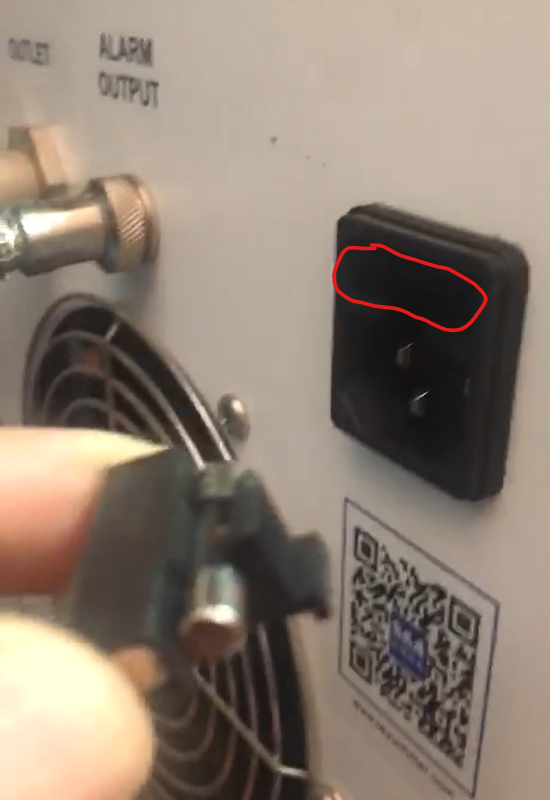

Check the fuse in the power inlet socket

link of the video

https://www.dropbox.com/scl/fi/xv3s3ouuo14soum4qksou/check-the-fuse-in-the-power-inlet-socket.mp4?dl=0&rlkey=j72z3u8wt7w35p4xvawljirhb

Step 6

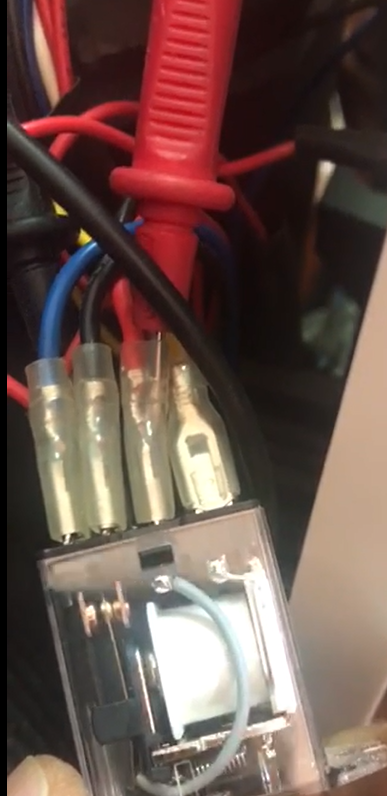

Check the voltage in the relay

link of the video

https://www.dropbox.com/scl/fi/fcbd9kvbrtgo7zaacpg41/check-voltage-in-Relay.mp4?dl=0&rlkey=7c2kaae2bm2r79e5mer5bpxoo

Step 7

Check the relay is working

link of the video

https://www.dropbox.com/scl/fi/tj6n4xhhpc8v1f7qknfhc/relay-in-the-chiller.mp4?dl=0&rlkey=dc81l0d0mgdov8ydo31fwonu3
