Cut optimization on CypCut (Cooling point) / Engineer David

Cut optimization on CypCut (Cooling point) / Engineer David

The cooling point helps the material to cool down the temperature during the cut. When it is cutting and it goes through the cooling point it is going to stop there and is going to keep blowing gas to cool down do the material and reduce the temperature.

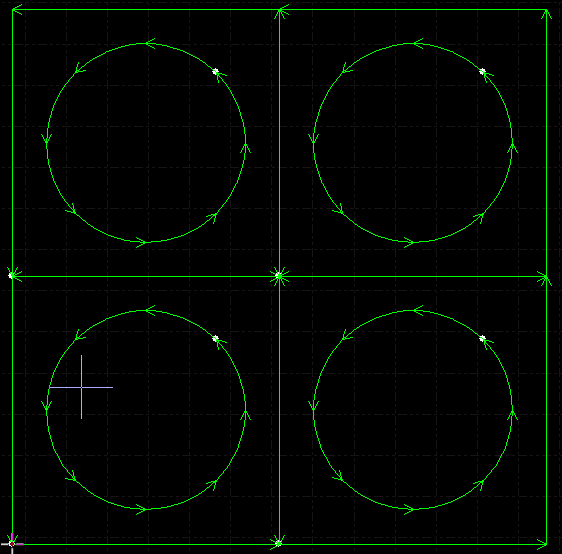

1. Select the design

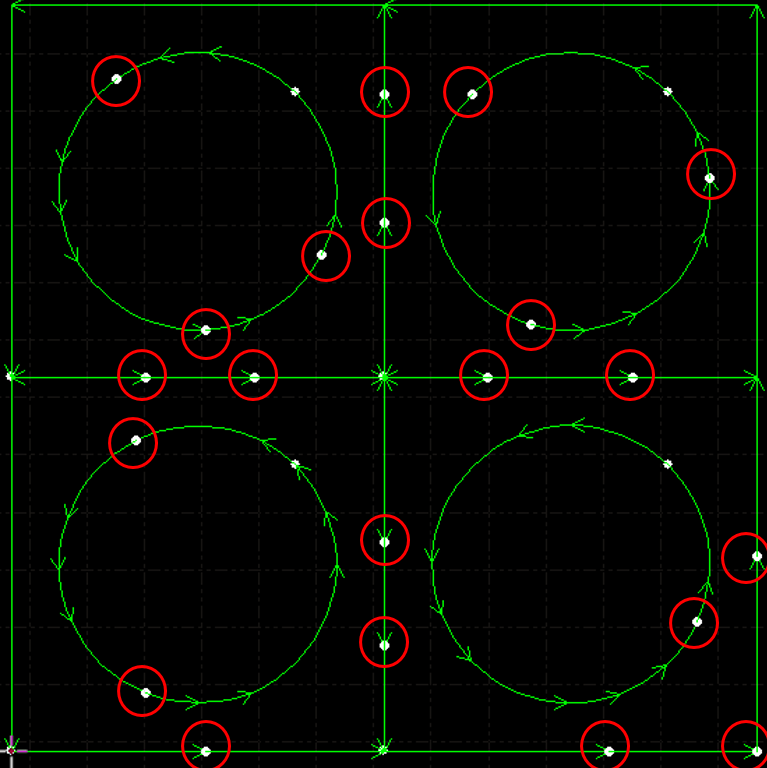

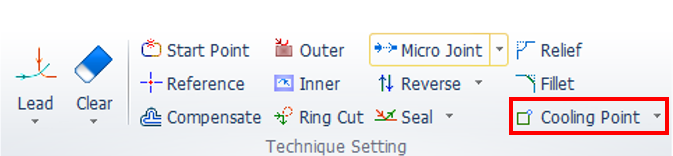

2. Click on "Cooling Point" and then click where you want to create the cooling point in the design:
