Drying power for color and varnish inks configuration / Stefhany
DRYING POWER FOR COLOR AND VARNISH INKS

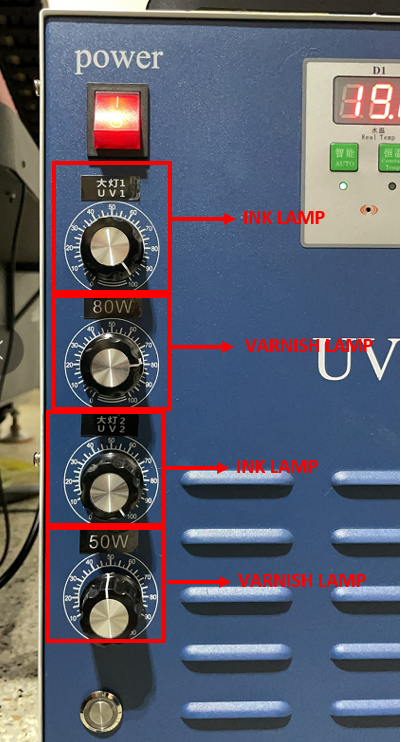

- The potentiometers that control the drying power for the color inks in the following Generator, are recognized by UV1 and UV2, these potentiometers are generally set at values of 50 to 70%.
- The potentiometers that control the drying of the Varnish, denoted by 80W and 50W, are generally set in heats of 30 to 50%, however, this depends on the Varnish finish that the client requires.

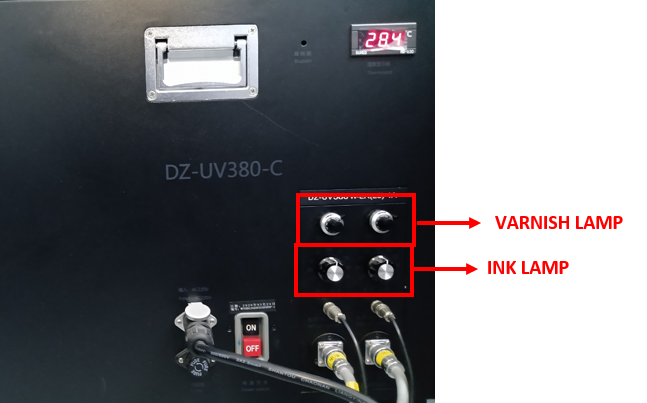

- The potentiometers that control the drying power for the color inks in the Reference Generator DZ-UV380-C, is located in the second row, these potentiometers are generally set at values of 50 to 70%.
- The potentiometers that control the drying of the Varnish, are found in the first row, they are generally configured in values from 30 to 50% (the value is set within the tab), however, this depends on the finish of the Varnish that the client.
