For the IPG you will have two wire groups to connect to the machine. The first one is the power wire and the second one is the communication.

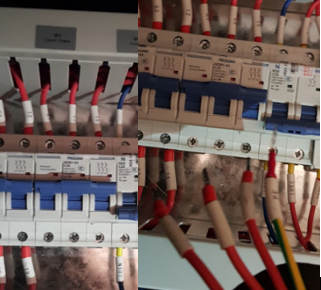

1. Connect the power cable in the breaker inside the machine: The three phases to the breaker and the ground to the ground section on the electric panel.



2. Connect the communication wires to the motherboard. For that you just need 7 wires:

L-STA+ , L-STA- , L-RED , L-EN , PWM1+ , PWM1- , 0v

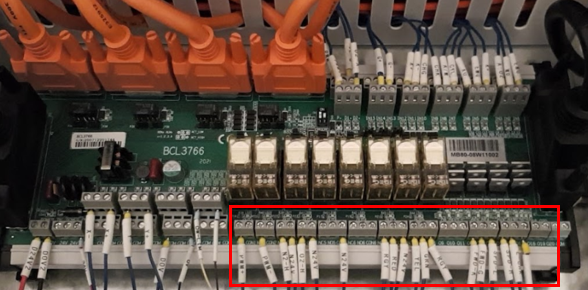

For these wires, you need this section on the motherboard:

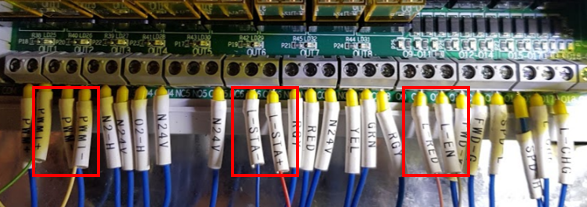

Connect the wires like this:


L-STA+ to OUT6 CON6

L-STA- to OUT6 NO6

L-RED to OUT10

L-EN to OUT11

PWM1+ to OUT1 CON1 (NO1)

PWM1- to OUT2 CON2 (NO2)

0v take it to the 0v section on the electric panel



Finally, put tape on the other wires that you did not connect.

Fiber Laser Deparment
