LOAD FACTORY PARAMETERS OR DEFAULT FOR RUIDA RDC6442 / Daniel

LOAD FACTORY PARAMETERS OR DEFAULT RUIDA RDC6442



To load the default configuration from the operation panel, follow these steps:

     1.  Press the  Z/U key

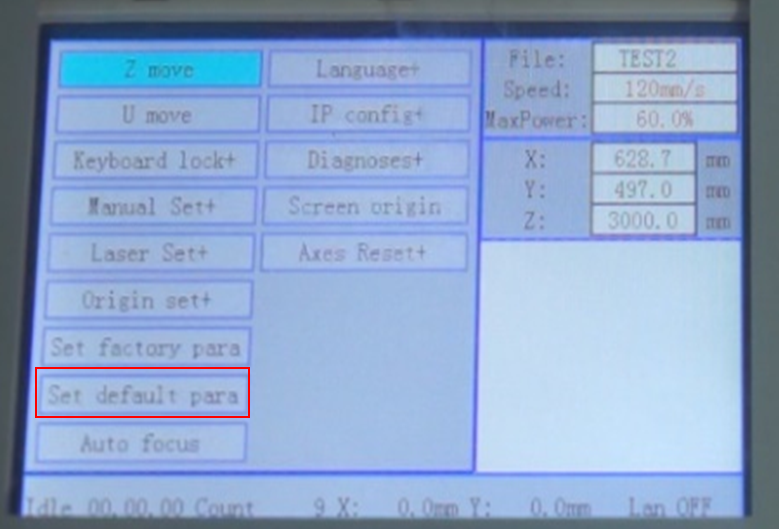

    2.  With the direction arrows move and select the option “Set default para” and confirm with the enter key

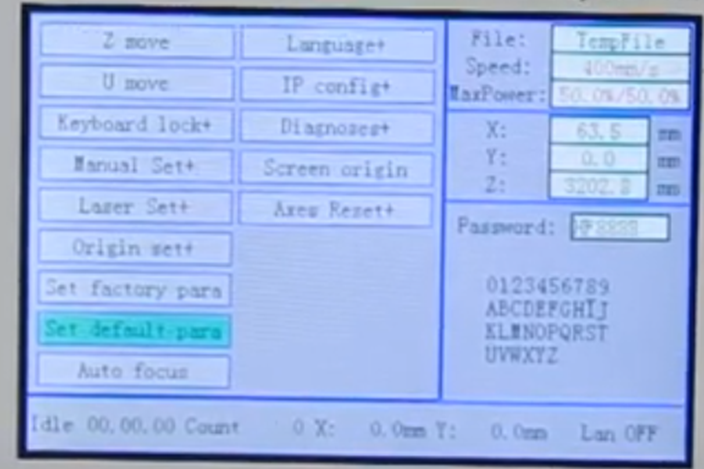

      3. Use the direction arrows to enter the password HF8888 and confirm with the enter key

To change the factory parameters select "Set Factory para" and repeat the previous steps
