CHANGE LANGUAGE IN RUIDA RDC6445 BOARD / Daniel

To change the default language on the Ruida RDC6445 control panel, follow these steps

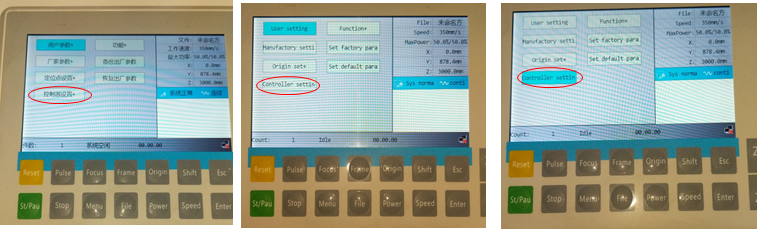

1. Press the menu button

2. When pressing menu, “user settings” appears selected, move to the last button “controller Settings” and press the enter button to confirm

3-  Enter the first option, "language +" and confirm with the enter button

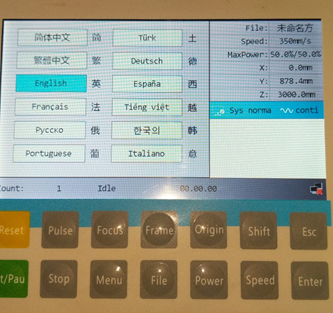

4.    Select the language that you want to change and confirm with button enter
