Worktable movement problem when changing board RUIDA RDC6442 / DANIEL
Problem
of movement of the machine in the z axis, when changing the Ruida RDC6442C
board the worktable does not move, The solution is to change the parameters, or
load the vendor parameters to the machine

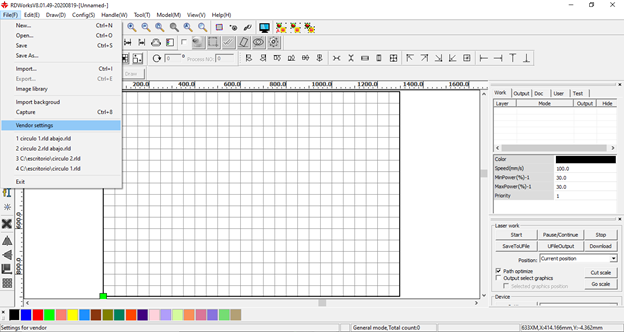

Para cargar o cambiar los parámetros se debe ingresar a Menú File, opción “Vendor Settings”
Type password: RD8888
Download the vendor parameters from the next link,
https://www.dropbox.com/s/nc4qsty7wfmhii1/vendor%20settings%20dual.RDVSet?dl=0

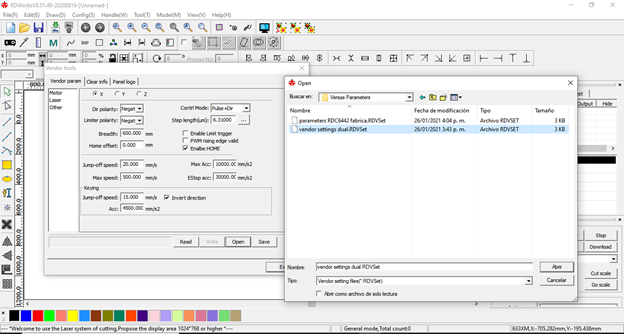

Open and write to the machine
Default parameters RDC6442 board (a problem in the work table is not moving)

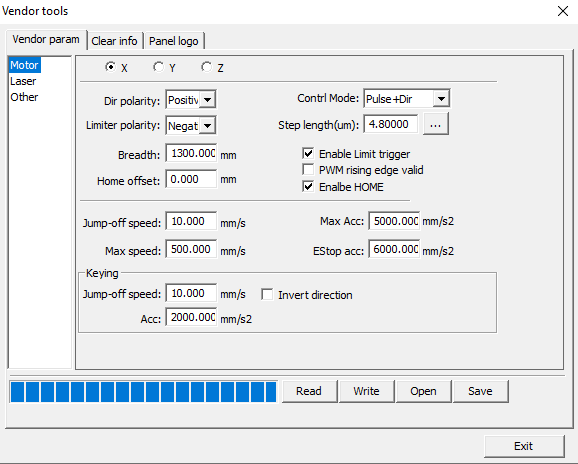

X-AXIS MOTOR

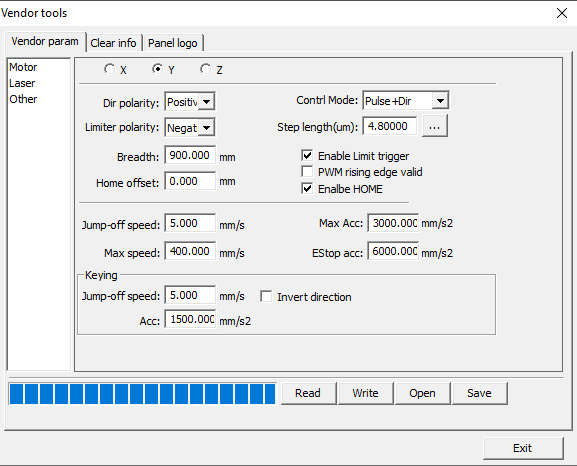

Y-AXIS MOTOR

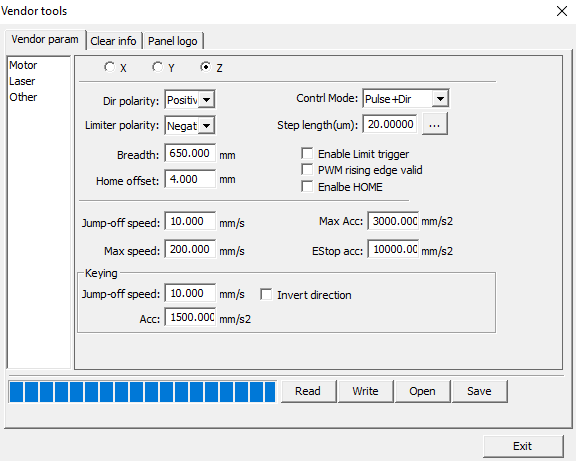

WORKTABLE MOTOR

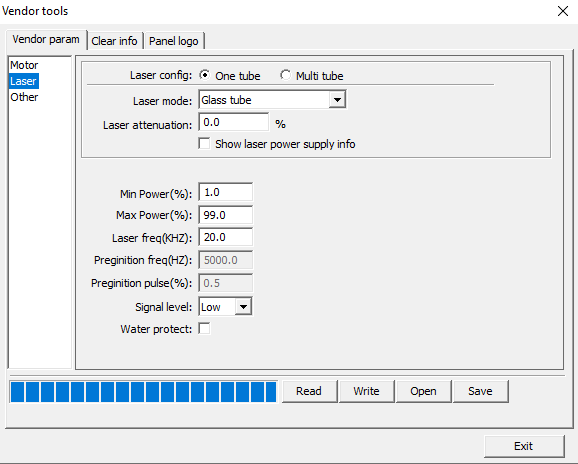

LASER TUBE

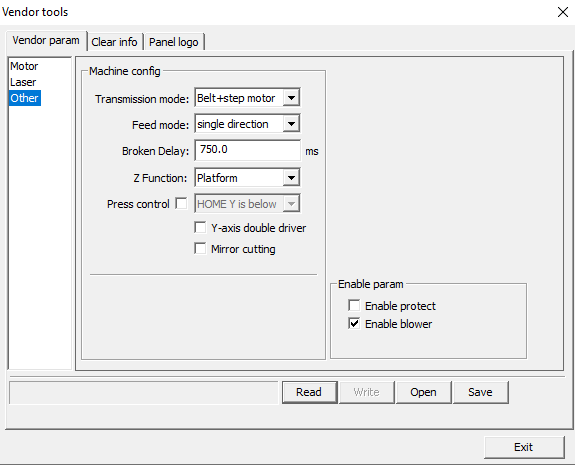

OTHER CONFIGURATION
TO SOLVE THE PROBLEM
LOAD THESE PARAMETERS TO THE MACHINE
X-AXIS MOTOR

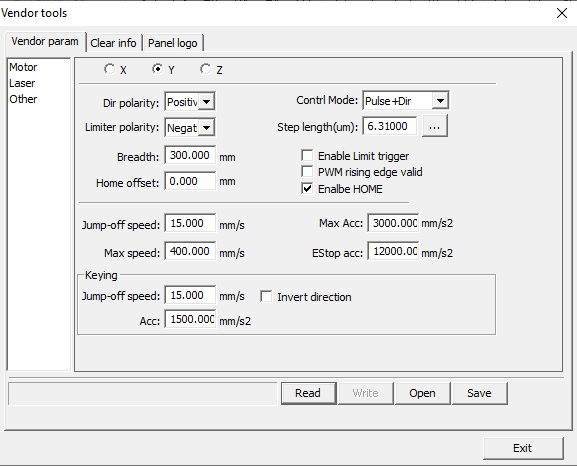

Y-AXIS MOTOR
WORKTABLE MOTOR

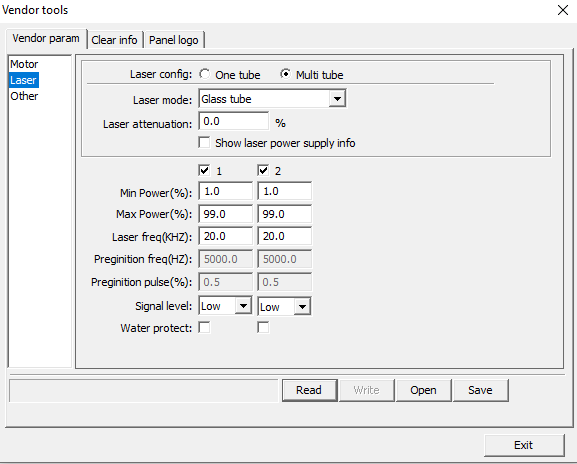

LASER TUBE
OTHER CONFIGURATION
