Oil tank connections on Fly Pro Machine / Engineer David

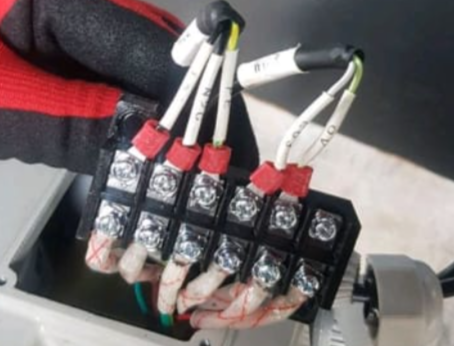

As you can see in the picture, there are one hot phase, one neutral and one ground.
The 0v wire and the E03 signal wire give the signal to the machine to make the autolubrication.
Fiber Laser Department
