1500w Galvanized Cutting Parameters Fast Guide Fiber Laser / Engineer David

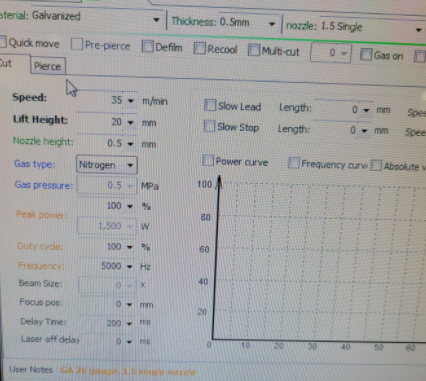

0.5 mm

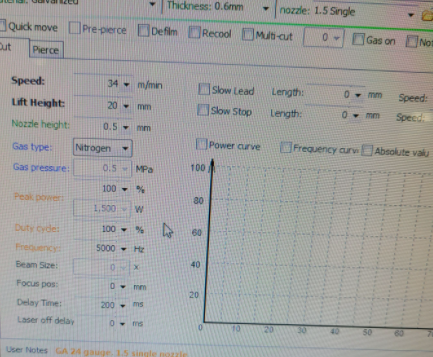

0.6 mm

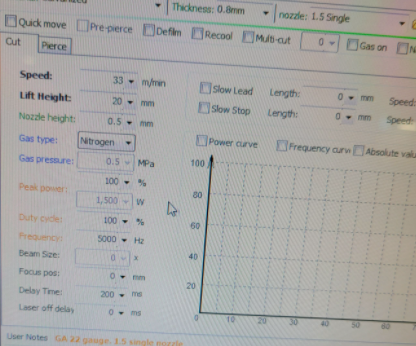

0.8mm

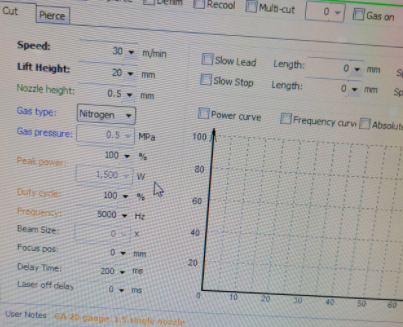

0.9mm

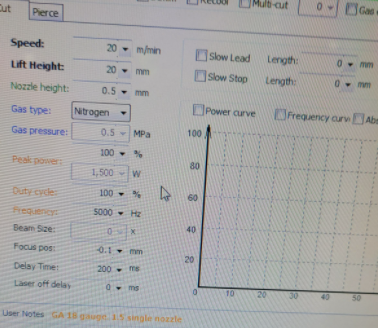

1.2 mm

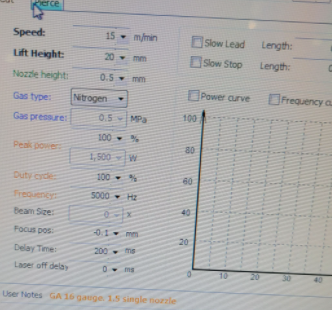

1.5 mm

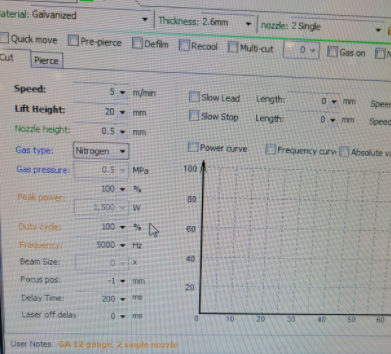

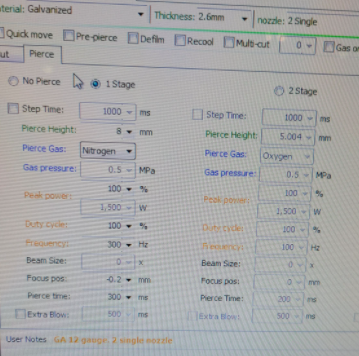

2.6 mm

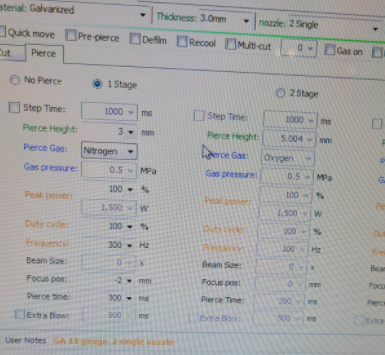

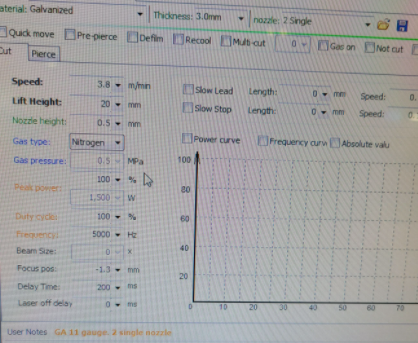

3.0 mm

Fiber Laser Department
