For the dual chiller inlet use only one inlet A,   loop a hose in inlet B and outlet B.  filled with distilled water until reaching the green level on the gauge.
connect the alarm cable in the back of the chiller as shown in the photo below

Check the water pipe cross-connection as shown in the photo

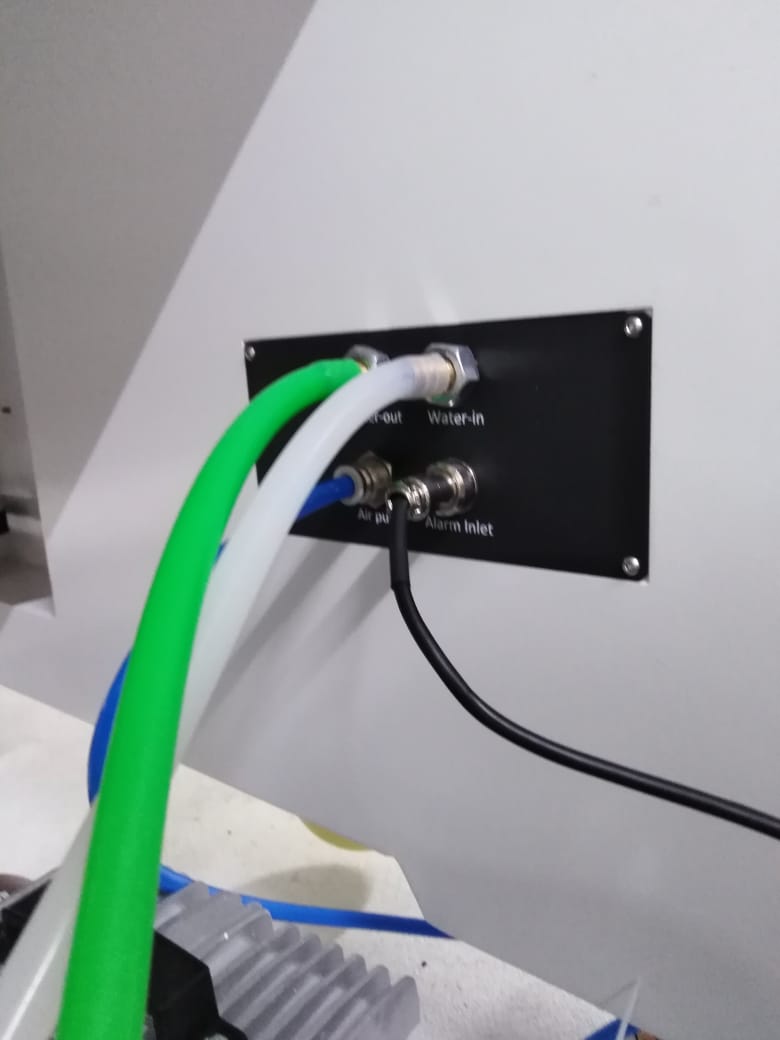

Star Machine connections
Connection in the back of the chiller.

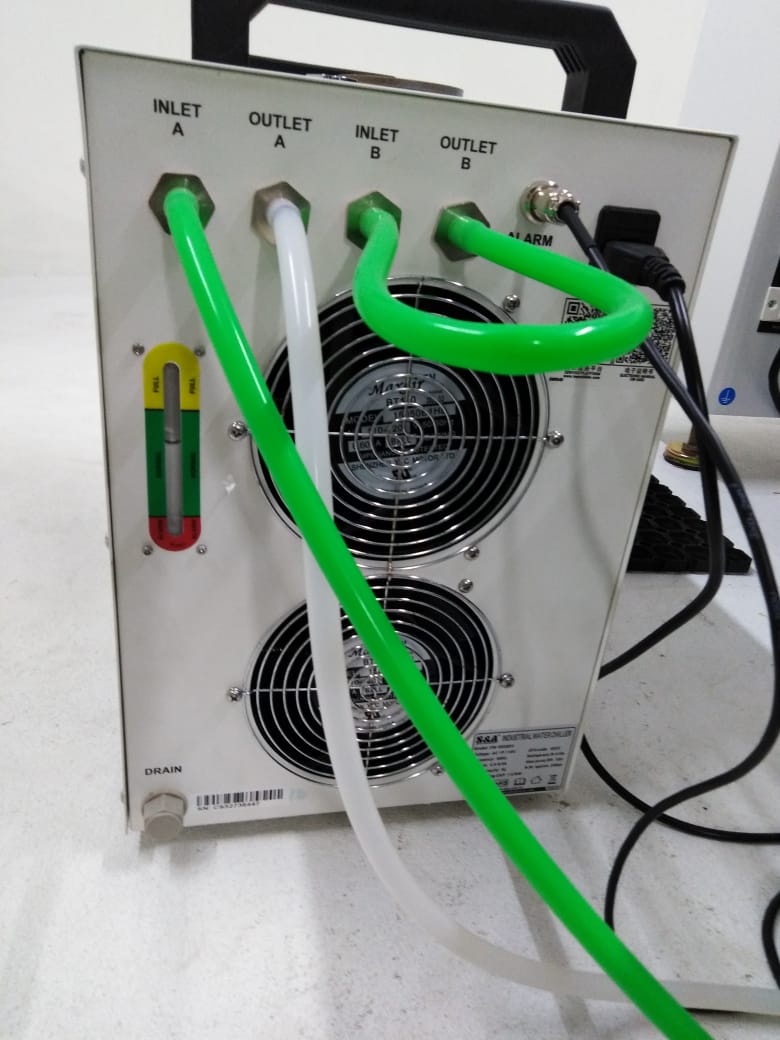

double inlet Chiller connections

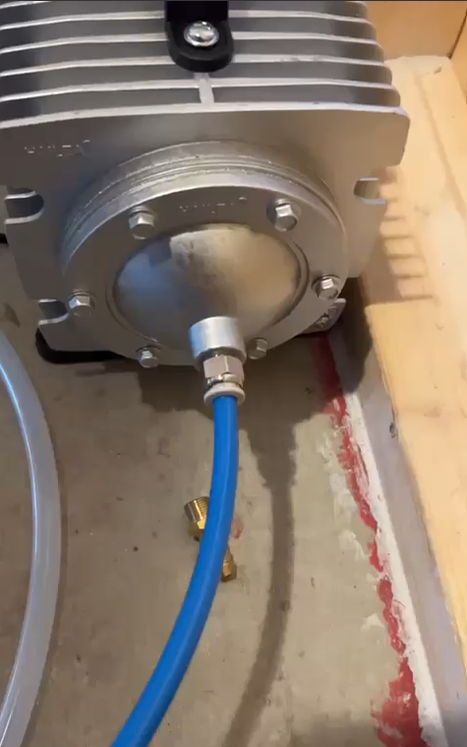

Air pump connection

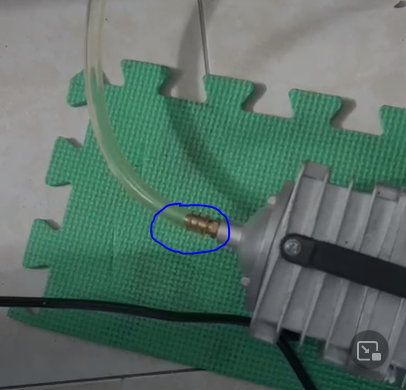

if the machine doesn´t come with the push-to-connect fitting,

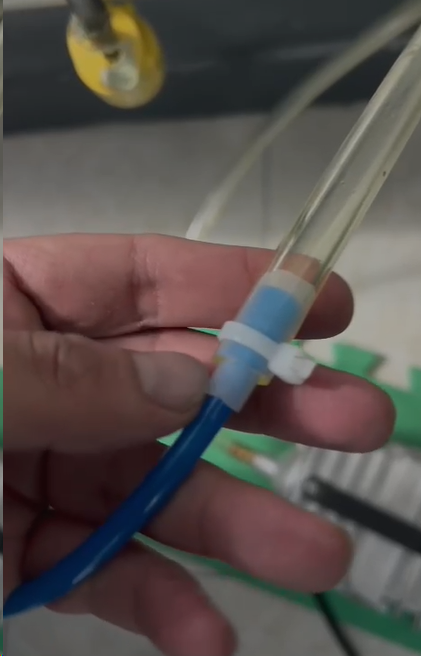

you can do this connection with the chiller hose and zip tie.
