Exchange of the KC and MY Colors Without Changing The Physical Position Of The Printheads / Stefhany & Juan

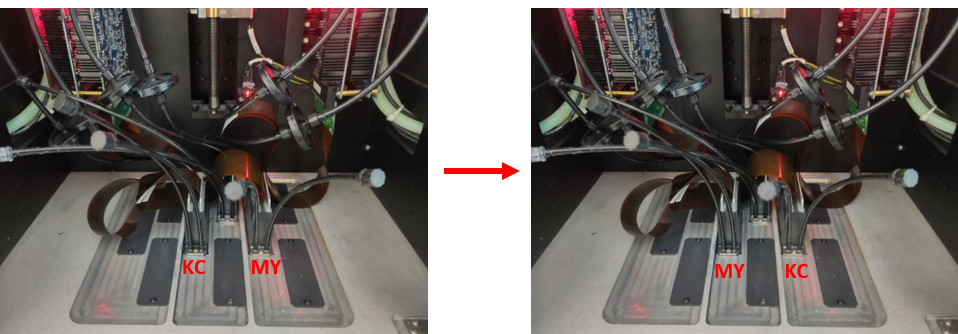

EXCHANGE OF THE BLACK-CYAN AND MAGENTA-YELLOW PRINTHEADS WITHOUT CHANGING THEIR PHYSICAL POSITION ON THE TROLLEY

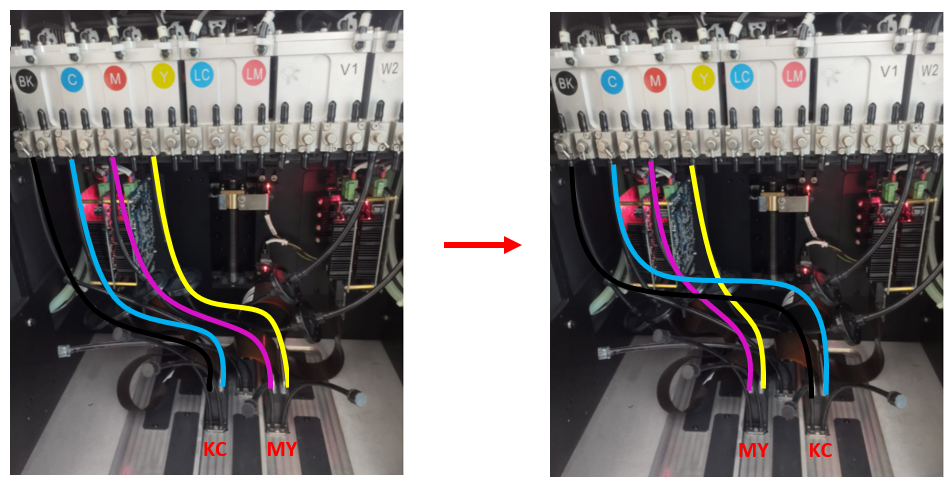

Step 1: Change the ink supply hoses from the secondary tanks to the heads, for example, the KC head will become MY, for this, it is necessary to connect the hose from the Magenta channel to the Key tank and the hose from the Yellow channel to the Cyan tank and reverse.
Note: the hoses must be unplugged from the secondary tanks, not the printheads.

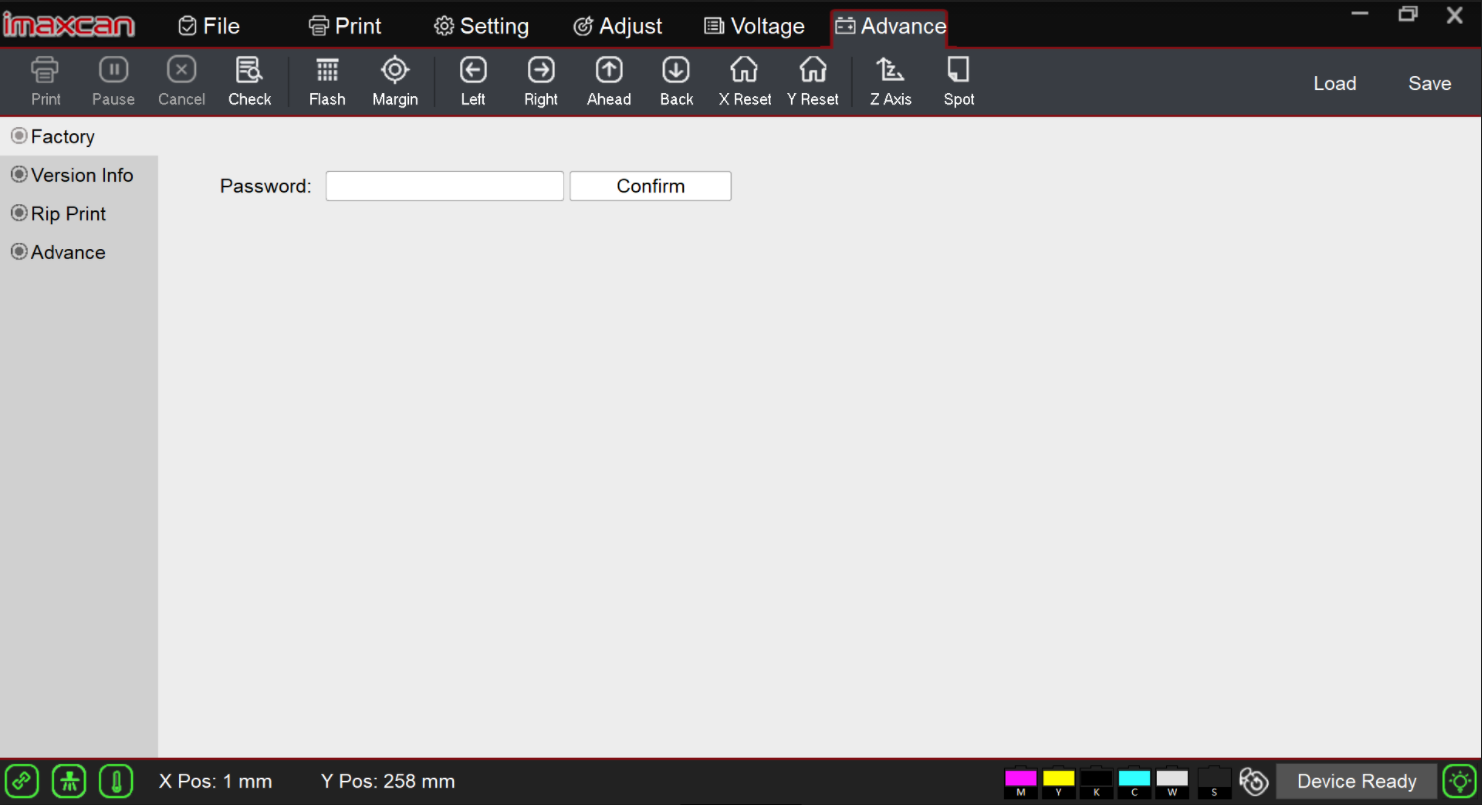

Step 2: Change the color settings in the software, click "Advance" and enter the password 123456.

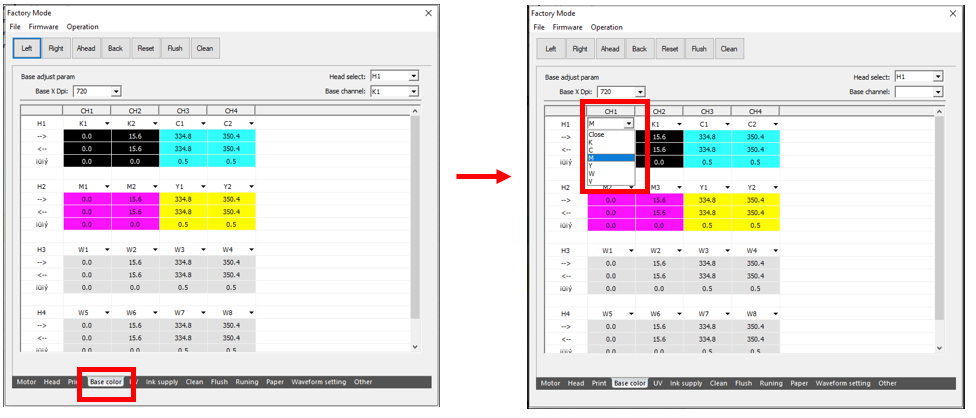

Step 3: Select the "Base color" box and change the colors of each head, as shown below:

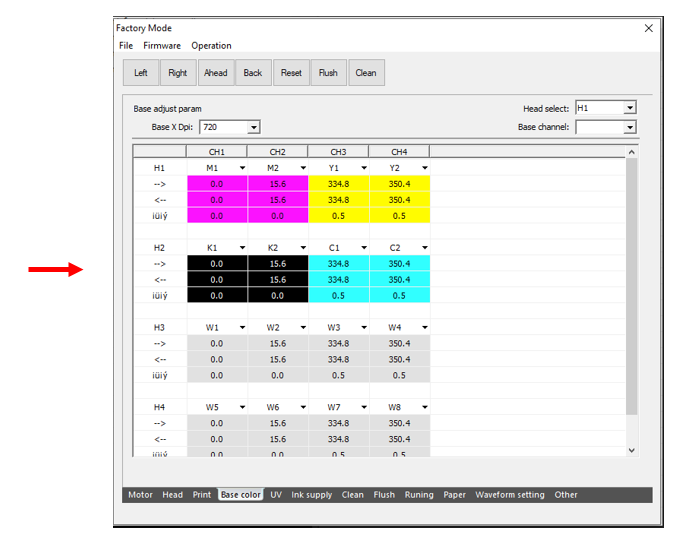

Once you have performed the change, the base color should be displayed in this order.

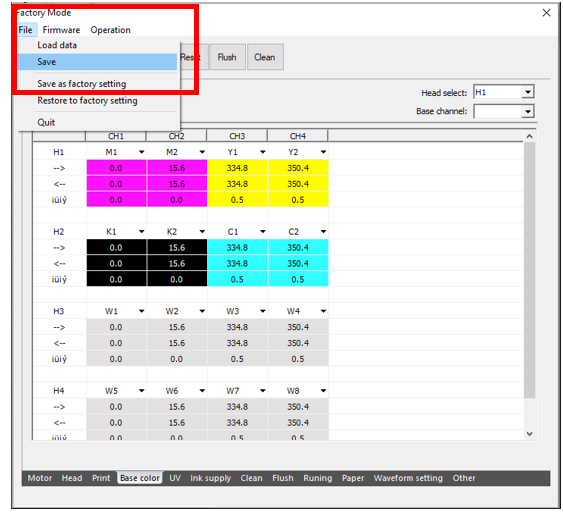

Step 4: Save the current configuration by clicking on “File” and “Save”.
