Head temperature configuration / Stefhany

HEAD TEMPERATURE CONFIGURATION

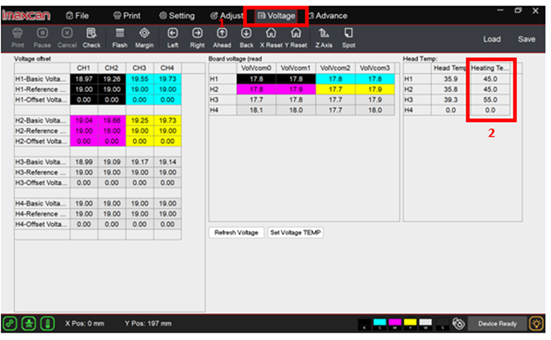

Step 1: Press the “Voltage” box, set the new temperature values in the boxes in the “Heating Temp.” Column.

​

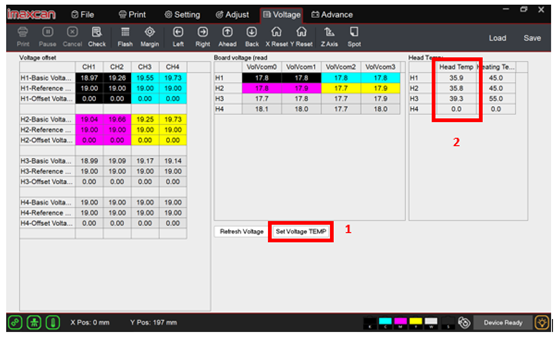

Step 2: Press the “Set voltage TEMP” tab and wait for the values in the “Head Temp” column to reach the set values.
