How to disassemble the laser head for the Versa Force Machine? / Daniel

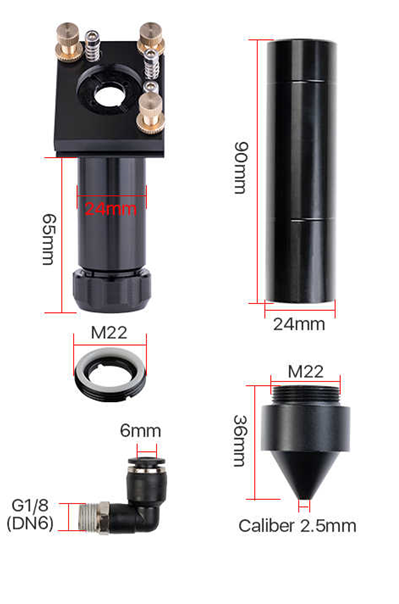

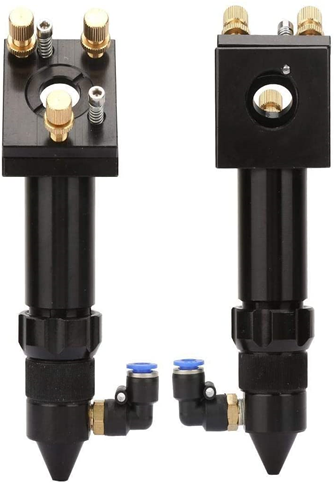

The head is composed of several parts, mirror holder, mirror, barrel holder, barrel, ring to fix the focal lens, focal lens, universal nozzle, and air nozzle

To disassemble the laser head, follow these steps

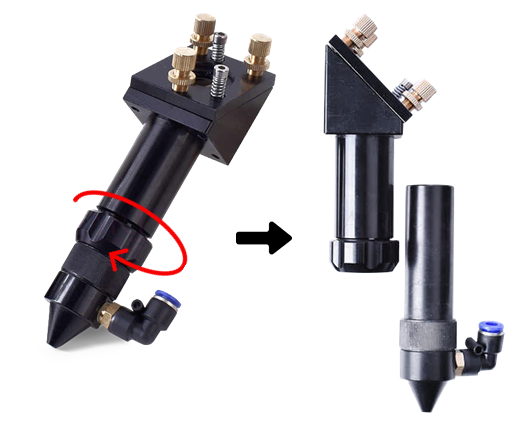

Step 1 - Turn the nut counterclockwise to release the Laser head barrel

Step 2 – Remove the barrel

Step 3 - Remove the nozzle by turning the nut counterclockwise

Step 4 - Remove the air nozzle by turning the nozzle  counterclockwise

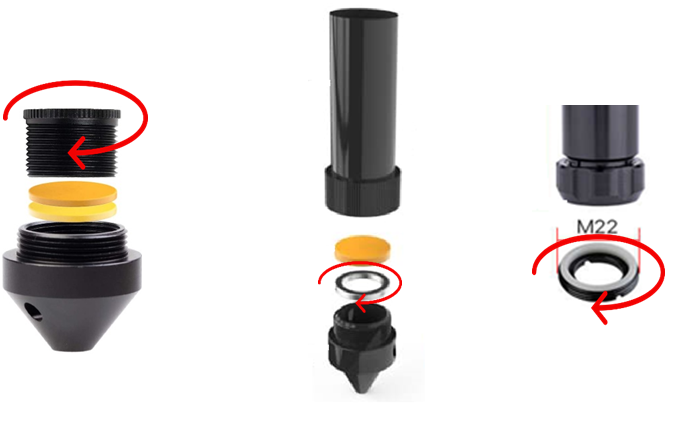

Step 5 - Remove the holder or ring to release the focal lens
