Laser tube operation check for the warranty claim / Daniel
In the next video you can see the procedure
To check the status of the laser tube follows the next steps:
Step 1

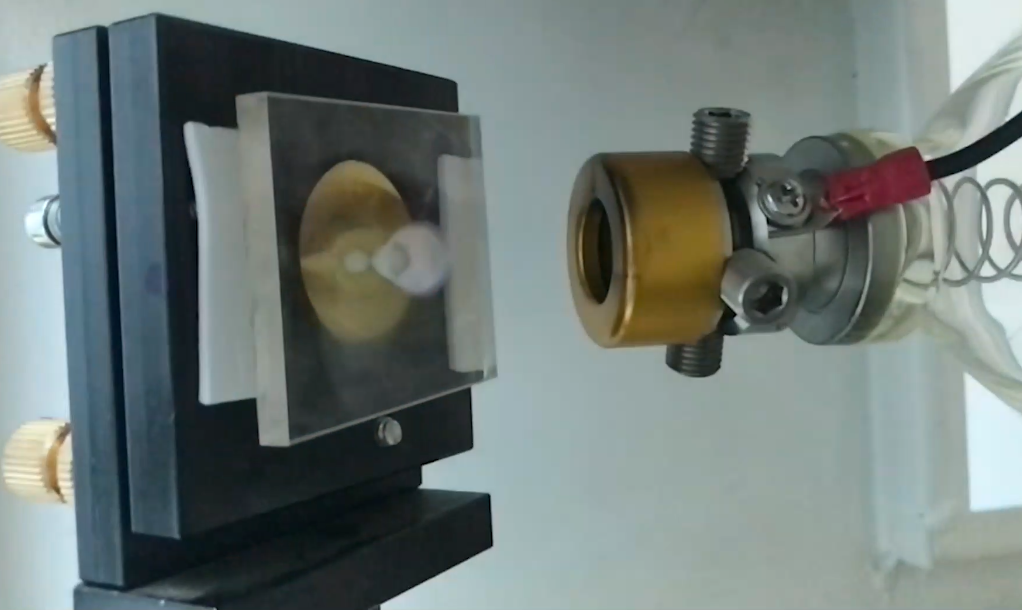

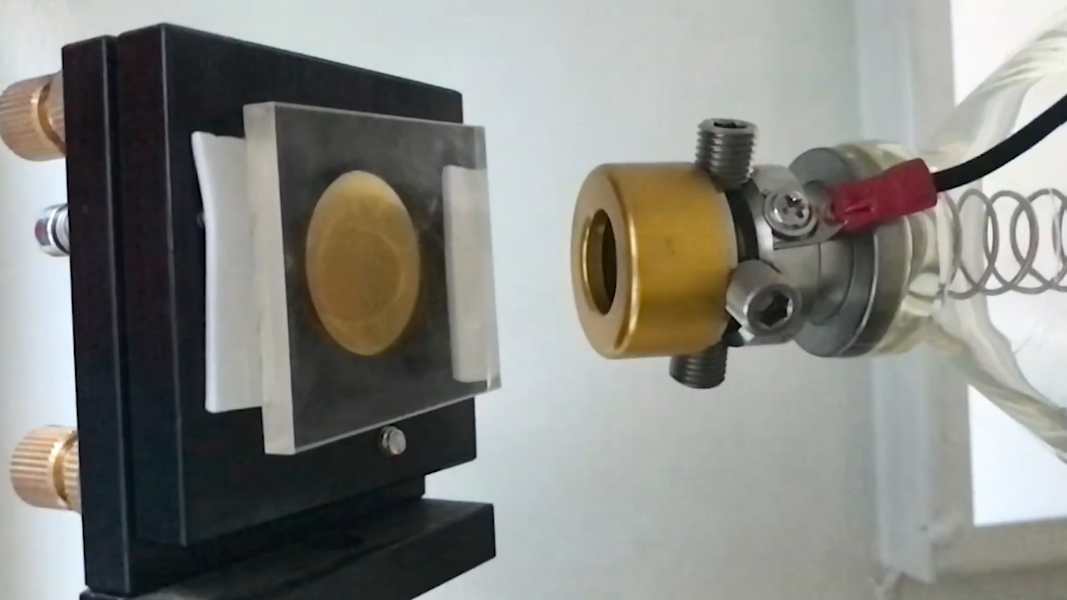

Place a piece of acrylic in front of the tube.
Step 2

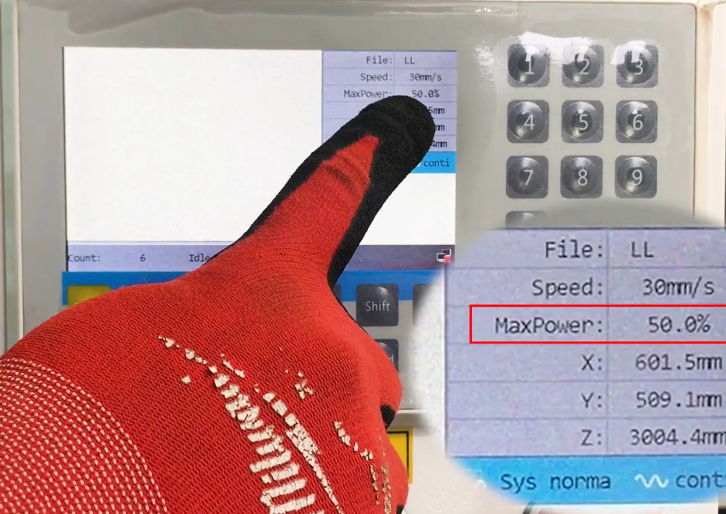

Set the laser Max Power on the machine at 50%
Step 3

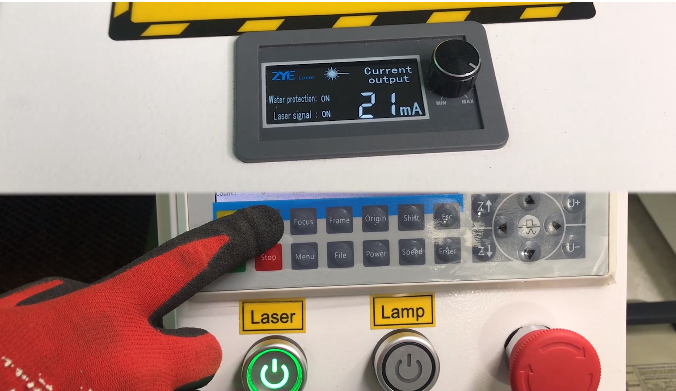

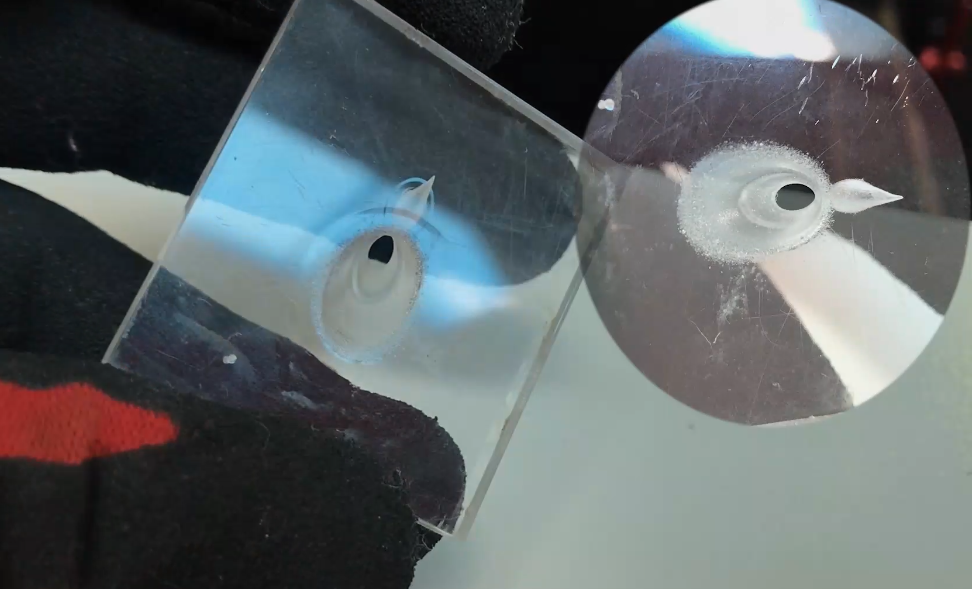

Send a video of the tube pulsing at 50%, hold "Pulse" for 1-3 seconds. What amp reading is it and what is the hit impact on acrylic right after the first reflection mirror. If the hit is very weak, then the tube or the power supply has a problem.
