PRINTING PROCESS IN RIPRINT AND IMAXCAN SOFTWARE


In Photoshop modify the file according to the desired requirements, adding white or varnish channels. The recommended print format is TIFF.

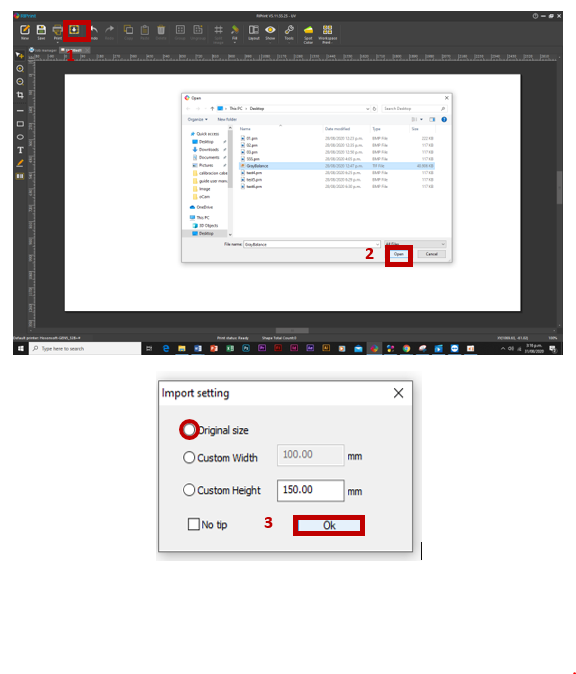

Step 1: Open the RIPrint software and import the .TIFF file, select “Orginial size” and press “OK”.



Step 2: In the box "Spot color" select the desired printing mode.

None

Only CMYK

Spot

According to the channels in Photoshop

All

CMYK + background White

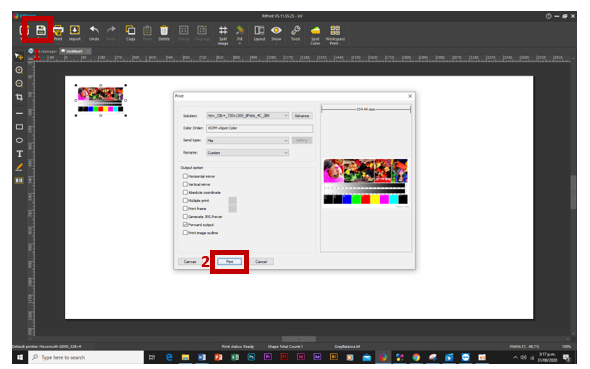

Step 3: Press “Print” and then “Print” in the pop-up window.

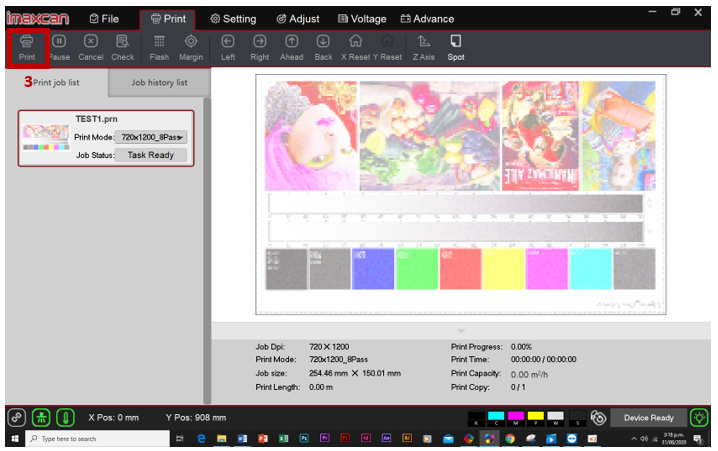

Step 4: In the IMAXCAN software, press the “File” box and open the previously saved image, then click “Print” and finally “Start printing”.
