To Install Smartcarve software for the machine follow the steps

Step 1
Download the Smartcarve Software version 4.3.29 from this Link


Step 2
Disable the antivirus software


Step 3

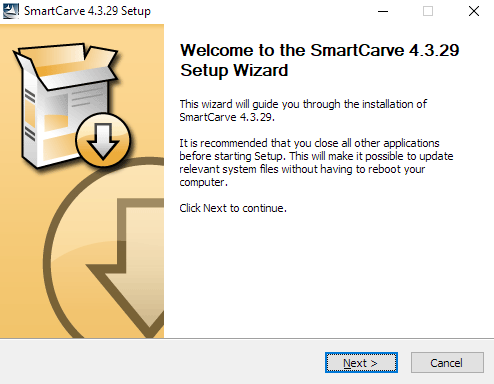

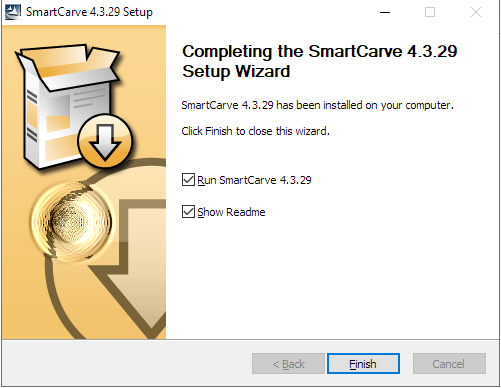

Install the software SmartCarve 4.3.29



Step 4

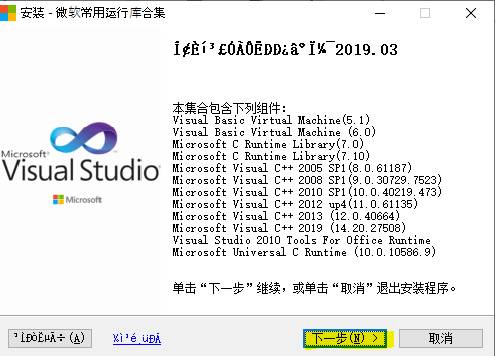

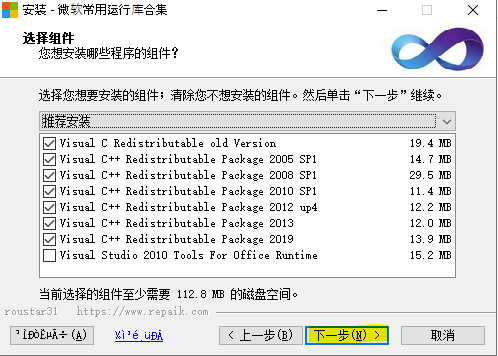

Install the Microsoft Visual Studio Software



Step 5

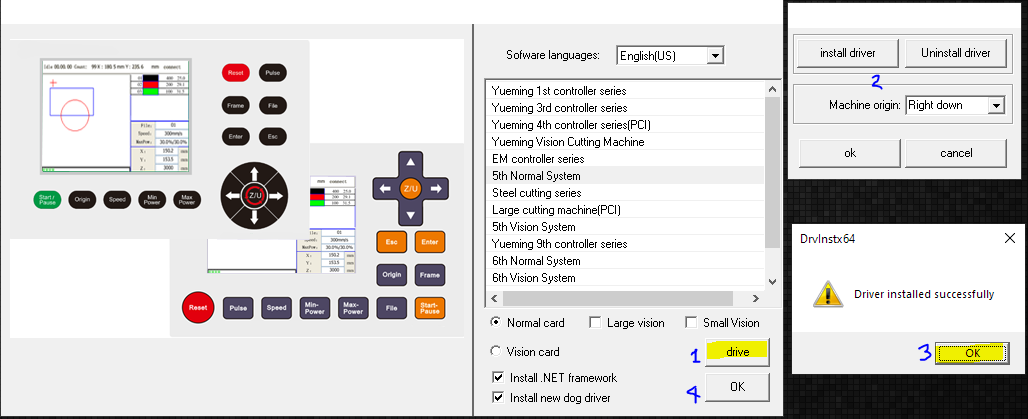

Once finished installing,  open the software and Select option 5th Normal System and install the driver




Step 6

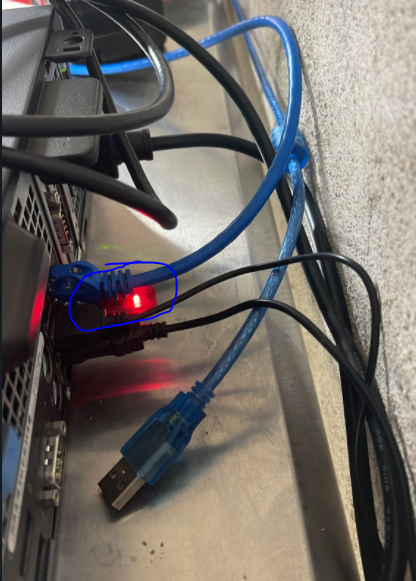

Connect the Ethernet cable from the machine to the computer. If the machine comes with a dongle, plug the dongle into the computer  USB port

























Step 7

 Change the Ethernet connection parameters to Static IP

To change the IP, do the following procedure:

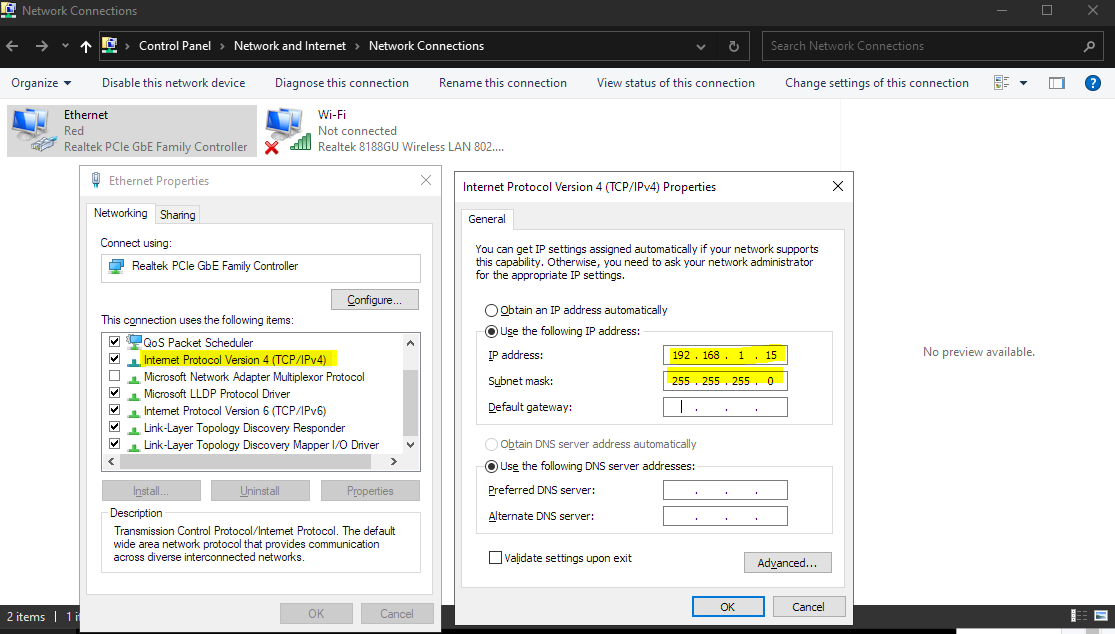

1. Go to control panel / Network and Internet / Network and Sharing Center/ configure the connection for local connection, then press right click and then select properties



2. Set the following values in (TCP / IPv4)

IP address: 192.168.1.5

Subnet mask: 255.255.255.0

Default gateway: 192.168.1.100

And finish with Ok





Step 8

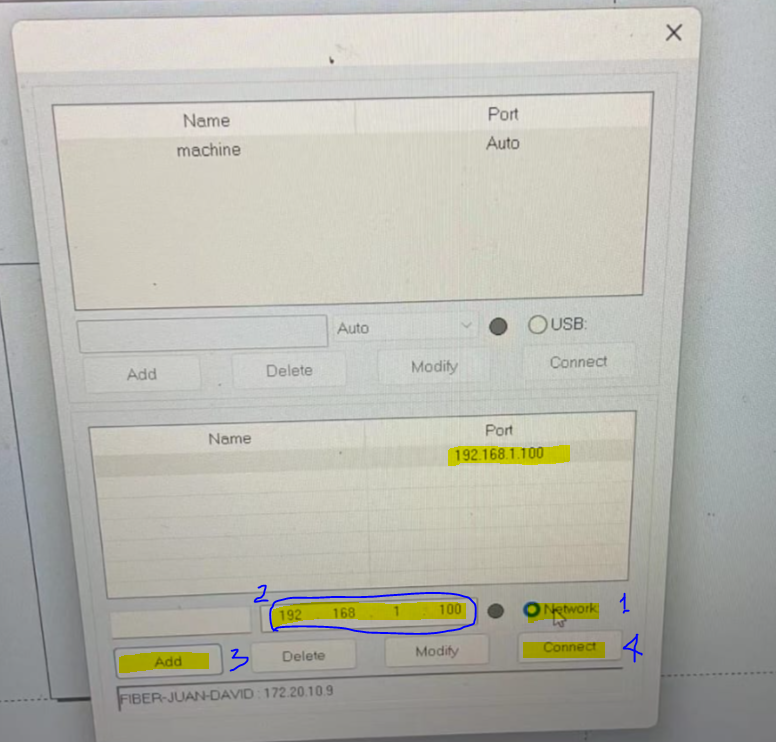

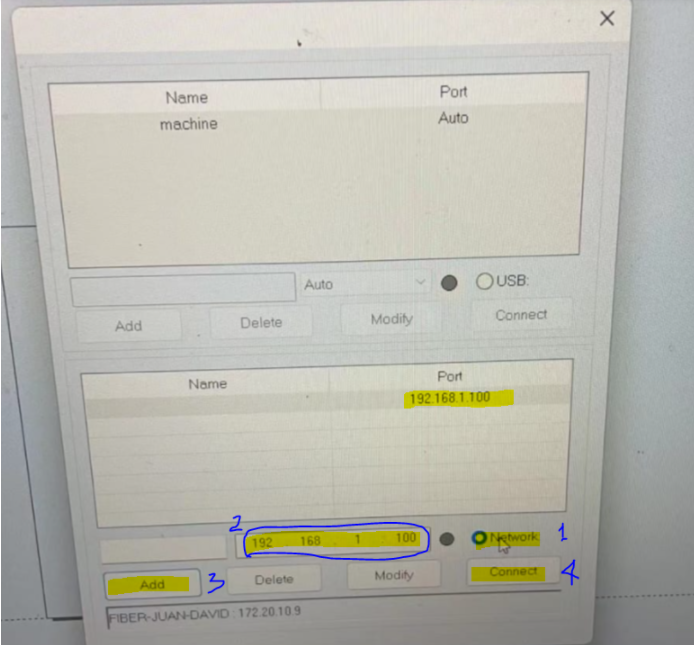

Open the Smartcarve software and add the IP address of the machine with the Add Button and click on Connect to finish
